40J15R Equivalent & Substitute Parts

Part Overview

The Ohmite 40J15R is a 15 Ohm, 5% tolerance, 10W axial wirewound through-hole resistor from the Ohmicone® 40 series. This component is designed for applications requiring precision power dissipation in compact form factors. The part is currently active in production with 778 units in stock. Substitute parts are identified when equivalent electrical specifications and mechanical compatibility are maintained across the same resistance value, tolerance, power rating, and package type.

Substiute Parts

40J15R

OhmiteIn Stock: 86340J15R Datasheet

Current PartRFQ

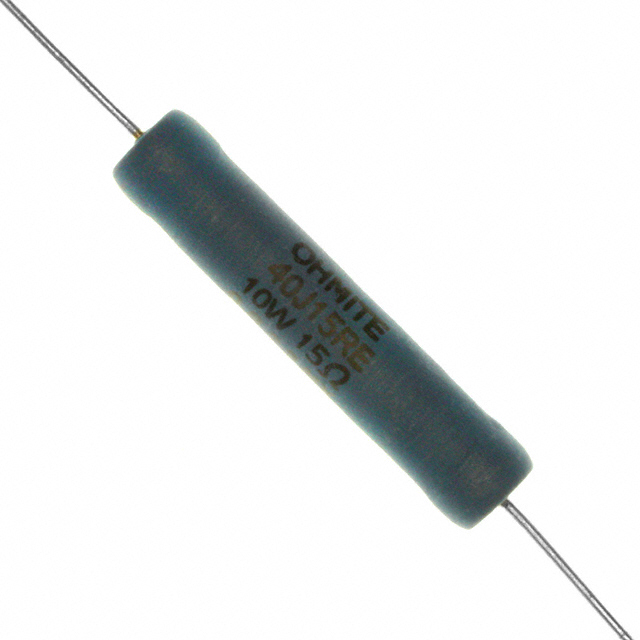

40J15RE

OhmiteIn Stock: 81740J15RE Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The 40J15RE qualifies as a parametric equivalent to the 40J15R based on the following criteria:

• Identical resistance value: 15 Ohms
• Identical tolerance: ±5%
• Identical power rating: 10W
• Identical composition: Wirewound
• Identical package type: Axial
• Identical temperature coefficient: ±20ppm/°C
• Identical physical dimensions: 0.406" Dia x 1.902" L (10.30mm x 48.30mm)
• Identical number of terminations: 2

Both parts are manufactured by Ohmite and maintain full electrical and mechanical compatibility. The primary difference is packaging format (tape/reel versus bulk) and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Both the 40J15R and 40J15RE are electrically and mechanically interchangeable for applications requiring a 15 Ohm, 10W axial wirewound resistor. Selection between these parts should be based on:

Compliance Requirements: The 40J15RE is RoHS Compliant, while the 40J15R is RoHS non-compliant. Applications subject to RoHS directives must use the 40J15RE.

Operating Temperature Specification: The 40J15RE provides a defined operating temperature range of -55°C to 275°C. The 40J15R does not specify an operating temperature range. Applications with defined thermal requirements should reference the 40J15RE datasheet.

Packaging Format: The 40J15R is supplied in tape/reel format, suitable for automated assembly. The 40J15RE is supplied in bulk format, suitable for manual assembly or small-volume applications.

Inventory Availability: Both parts maintain active production status with comparable stock levels (778 units for 40J15R, 708 units for 40J15RE).

Frequently Asked Questions (FAQ)

Q: Can the 40J15RE be used as a direct replacement for the 40J15R?

A: Yes. Both parts share identical electrical specifications (15 Ohms, ±5%, 10W) and mechanical dimensions (0.406" Dia x 1.902" L). They are functionally interchangeable in circuit applications.

Q: What is the difference between the 40J15R and 40J15RE?

A: The primary differences are packaging format (tape/reel versus bulk) and compliance certifications. The 40J15RE is RoHS Compliant and specifies an operating temperature range of -55°C to 275°C, while the 40J15R does not provide these specifications.

Q: Which part should I select for RoHS-compliant applications?

A: The 40J15RE is RoHS Compliant and must be used for applications subject to RoHS directives. The 40J15R is RoHS non-compliant.

Q: Are the physical dimensions identical between both parts?

A: Yes. Both parts have identical dimensions of 0.406" Dia x 1.902" L (10.30mm x 48.30mm) and are compatible with the same PCB layouts and mechanical assemblies.

Q: What packaging format is each part supplied in?

A: The 40J15R is supplied in tape/reel format for automated pick-and-place assembly. The 40J15RE is supplied in bulk format for manual assembly or small-volume production runs.
