TE Connectivity 406533-1 Modular Connector Equivalent & Substitute Parts
Part Overview
The TE Connectivity 406533-1 is a jack modular connector (8p8c RJ45 Ethernet) with 90° right-angle orientation, unshielded design, and through-hole solder termination. This connector is rated for Cat5 applications and features a board guide with yellow-green LED indicators. The part is currently obsolete, necessitating identification of active equivalent and substitute components that maintain functional compatibility for new designs and production continuity.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Orientation | 90° Angle (Right) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Shielding | Unshielded |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold, 50.0µin (1.27µm) |
| Housing Material | Thermoplastic |
| Operating Temperature Range | -40°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| RoHS Status | ROHS3 Compliant |
Substitute Part Grouping Explanation
Substitution logic for the TE Connectivity 406533-1 is based on the following critical parameters:
Primary Substitution Criteria (Must Match):
- Connector Type: Jack
- Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
- Orientation: 90° Angle (Right)
- Mounting Type: Through Hole
- Termination: Solder
- Contact Material: Phosphor Bronze
- Contact Finish: Gold, 50.0µin (1.27µm)
- Housing Material: Thermoplastic
- Moisture Sensitivity Level: 1 (Unlimited)
Secondary Substitution Criteria (Allowable Variations):
- Shielding: Unshielded or Shielded (EMI Finger) variants acceptable for different application requirements
- Operating Temperature Range: Extended range (-55°C ~ 85°C) acceptable as superset of original specification
- Features: Board Guide or Board Lock both acceptable
- LED Color: Variations acceptable based on application requirements
- Packaging: Tray or Tube acceptable for different procurement workflows
- Product Status: Active preferred over obsolete
Substitutes are grouped into two categories: direct equivalents (identical shielding) and compatible alternatives (shielded variants for enhanced EMI performance).
Parameter Comparison
| Part Number | Manufacturer | Shielding | Features | Operating Temperature | Product Status | Packaging | Inventory (Pcs) |
|---|---|---|---|---|---|---|---|
| 406533-1 | TE Connectivity AMP Connectors | Unshielded | Board Guide | -40°C ~ 85°C | Obsolete | - | 694 |
| 5406533-1 | TE Connectivity AMP Connectors | Unshielded | Board Guide | -40°C ~ 85°C | Active | Tray | 2688 |
| RJHSE-5081 | Amphenol ICC (Commercial Products) | Unshielded | Board Lock | -55°C ~ 85°C | Active | Tube | 1529 |
| RJHSE-5084 | Amphenol ICC (Commercial Products) | Unshielded | Board Lock | -55°C ~ 85°C | Active | Tube | 41589 |
| RJHSE-5085 | Amphenol ICC (Commercial Products) | Unshielded | Board Lock | -55°C ~ 85°C | Active | Tube | 10547 |

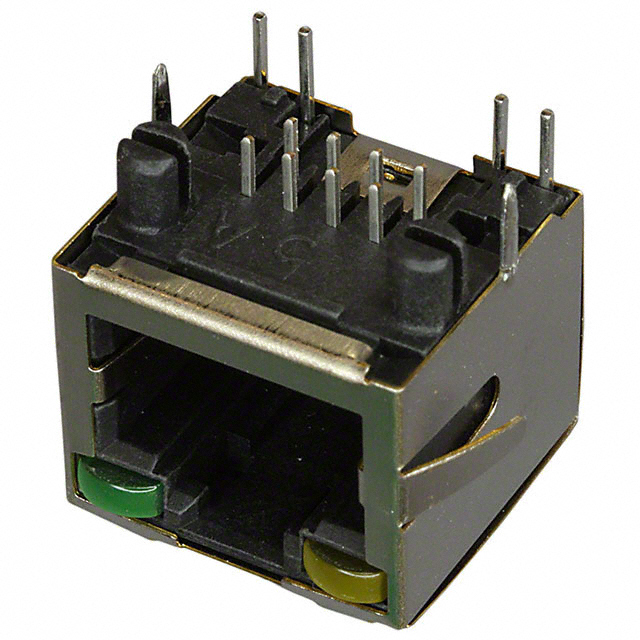

| RJHSE-5381 | Amphenol ICC (Commercial Products) | Shielded, EMI Finger | Board Lock | -55°C ~ 85°C | Active | Tray | 4527 |

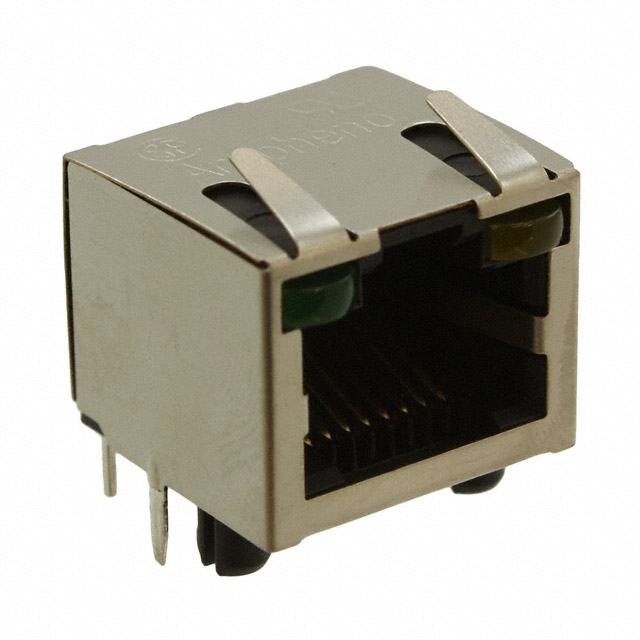

| RJHSE-5384 | Amphenol ICC (Commercial Products) | Shielded, EMI Finger | Board Lock | -55°C ~ 85°C | Active | Tray | 5604 |
| RJHSE-5385 | Amphenol ICC (Commercial Products) | Shielded, EMI Finger | Board Lock | -55°C ~ 85°C | Active | Tray | 1678 |
| RJHSE-538A | Amphenol ICC (Commercial Products) | Shielded, EMI Finger | Board Lock | -55°C ~ 85°C | Active | Tray | 1779 |
| RJHSE-5481 | Amphenol ICC (Commercial Products) | Shielded, EMI Finger | Board Lock | -55°C ~ 85°C | Active | Tray | 5493 |
| RJHSE5387 | Amphenol ICC (Commercial Products) | Shielded, EMI Finger | Board Lock | -55°C ~ 85°C | Active | Tray | 2698 |
Engineering Selection Recommendations
Direct Equivalent (Unshielded, Identical Functionality):
The TE Connectivity 5406533-1 is the direct successor to the obsolete 406533-1. Both parts are manufactured by TE Connectivity AMP Connectors and maintain identical electrical and mechanical specifications. The 5406533-1 is active in production with higher inventory availability (2688 pcs) and is packaged in Tray format. This part is the primary recommendation for direct replacement in existing designs.
Amphenol ICC Unshielded Alternatives:
The Amphenol ICC RJHSE series unshielded variants (RJHSE-5081, RJHSE-5084, RJHSE-5085) provide functional equivalence with extended operating temperature range (-55°C ~ 85°C versus -40°C ~ 85°C). These parts feature Board Lock instead of Board Guide and are packaged in Tube format. The RJHSE-5084 offers the highest inventory availability (41589 pcs). These alternatives are suitable for applications requiring extended temperature performance or alternative packaging.
Amphenol ICC Shielded Alternatives:
The Amphenol ICC RJHSE shielded variants (RJHSE-5381, RJHSE-5384, RJHSE-5385, RJHSE-538A, RJHSE-5481, RJHSE5387) provide enhanced EMI shielding with EMI Finger design while maintaining all other core specifications. These parts are appropriate for applications requiring electromagnetic interference mitigation. All shielded variants are RoHS compliant and packaged in Tray format with extended operating temperature range.
Compliance Considerations:
All substitute parts maintain RoHS compliance (ROHS3 or RoHS Compliant). The TE Connectivity 5406533-1 carries REACH Unaffected status. Amphenol ICC parts carry REACH Unaffected or undefined status. All parts are classified under ECCN EAR99 and HTSUS 8536.69.4040.
Frequently Asked Questions (FAQ)
Q: Can the TE Connectivity 5406533-1 be used as a direct replacement for the obsolete 406533-1?
A: Yes. The 5406533-1 is the active production equivalent with identical electrical and mechanical specifications. Both parts feature unshielded design, 8p8c RJ45 configuration, 90° right-angle orientation, through-hole solder termination, and phosphor bronze gold-plated contacts. The primary difference is product status (Active versus Obsolete) and packaging format (Tray versus unspecified).
Q: What is the difference between Board Guide and Board Lock features?
A: Both features provide mechanical retention on the PCB. Board Guide is present on the TE Connectivity parts (406533-1 and 5406533-1). Board Lock is present on Amphenol ICC alternatives. Both are acceptable for through-hole mounting applications and do not affect electrical performance.
Q: Can shielded variants (RJHSE-5381, RJHSE-5384, etc.) be used in place of the unshielded 406533-1?
A: Shielded variants are mechanically and electrically compatible with unshielded designs in terms of contact configuration, pin layout, and solder termination. However, shielded variants include EMI Finger shielding that adds electromagnetic interference protection. Selection depends on application requirements. Shielded variants are suitable for environments requiring EMI mitigation.
Q: What is the significance of the extended operating temperature range (-55°C ~ 85°C) in Amphenol ICC parts?
A: The Amphenol ICC alternatives support a lower minimum operating temperature (-55°C) compared to the original specification (-40°C). This extended range is a superset of the original specification and does not restrict compatibility. Parts may be selected based on specific application temperature requirements.
Q: How do LED color variations affect part selection?
A: LED color variations (Yellow-Green, Green-Yellow, Green-Green, Red-Green) are cosmetic indicators and do not affect electrical performance or connector functionality. Selection is based on application requirements for visual status indication.
Q: What packaging format should be selected?
A: Tray packaging is suitable for automated assembly and higher-volume production workflows. Tube packaging is suitable for manual assembly and lower-volume applications. Both formats contain identical components and do not affect electrical or mechanical performance. Selection depends on procurement and assembly process requirements.
Q: Are all substitute parts RoHS compliant?
A: Yes. The TE Connectivity 5406533-1 is ROHS3 Compliant. All Amphenol ICC alternatives are either ROHS3 Compliant or RoHS Compliant. All parts meet RoHS requirements for hazardous substance restrictions.
Q: What is the Moisture Sensitivity Level (MSL) significance?
A: All parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. Parts do not require special moisture control during storage, handling, or assembly processes.
