Part Overview

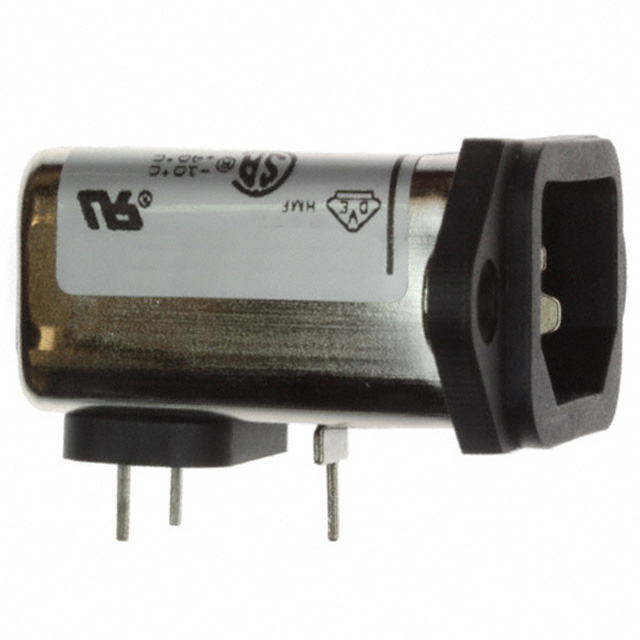

The TE Connectivity Corcom Filters 3EEAP is a power entry connector receptacle with integrated EMI/RFI filtering, designed for IEC 320-C14 panel mount applications. This component features male blades, solder termination, and a 3A current rating at 120/250VAC. The 3EEAP is classified as obsolete, necessitating identification of equivalent substitute parts for ongoing design requirements and component procurement. Substitute parts must maintain electrical compatibility, mechanical fit, and filtering performance characteristics.

Substiute Parts

3EEAP

TE Connectivity Corcom FiltersIn Stock: 8663EEAP Datasheet

Current PartRFQ

6609006-7

TE Connectivity Corcom FiltersIn Stock: 11646609006-7 Datasheet

MFR RecommendedRFQ

FN9226-3-02

Schaffner EMC Inc.In Stock: 1076FN9226-3-02 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 3EEAP are identified based on strict electrical and mechanical parameter alignment. The primary substitution criteria are:

Electrical Compatibility Parameters:

• Connector style: IEC 320-C14
• Connector type: Receptacle, Male Blades
• Current rating (appliance inlet and filter): 3A
• Voltage rating: 120/250VAC
• Number of positions: 3
• Filter type: Filtered (EMI, RFI) - Commercial

Mechanical Compatibility Parameters:

• Mounting type: Panel Mount, Flange; Through Hole, Right Angle
• Termination: Solder
• Panel cutout dimensions: Rectangular configuration

Regulatory Compliance Parameters:

• RoHS3 Compliance
• Approval agencies: CSA, UL, VDE

The 6609006-7 (TE Connectivity Corcom Filters, EEJ Series) is classified as a manufacturer-recommended substitute, maintaining identical electrical specifications and mechanical mounting characteristics. The FN9226-3-02 (Schaffner EMC Inc., FN 9226 Series) is classified as a similar substitute, meeting core electrical and mechanical requirements with variations in panel cutout dimensions and ingress protection rating.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 6609006-7

The TE Connectivity Corcom Filters 6609006-7 is the manufacturer-recommended substitute for the obsolete 3EEAP. This part maintains identical electrical specifications (3A current rating, 120/250VAC voltage rating, IEC 320-C14 connector style) and mechanical characteristics (panel mount flange, through-hole right-angle configuration, solder termination). The 6609006-7 features identical panel cutout dimensions (30.48mm x 22.86mm), ensuring direct mechanical compatibility. Both parts carry ROHS3 compliance and CSA, UL, VDE approvals. The 6609006-7 is classified as active product status, providing long-term availability and supply continuity.

Alternative Substitute: FN9226-3-02

The Schaffner EMC Inc. FN9226-3-02 serves as an alternative substitute when the 6609006-7 is unavailable. This part maintains core electrical compatibility through identical IEC 320-C14 connector style, receptacle male blade configuration, 3-position design, and 3A filter current rating. The FN9226-3-02 features identical mounting type (panel mount flange, through-hole right-angle) and solder termination. The FN9226-3-02 differs in panel cutout dimensions (34.40mm x 22.60mm versus 30.48mm x 22.86mm) and includes IP40 ingress protection rating. This part carries ROHS3 compliance and CSA, ENEC, SEMKO, UL approvals. Panel cutout dimension differences require mechanical design review for panel integration.

Frequently Asked Questions (FAQ)

Q: Can the 6609006-7 directly replace the 3EEAP without design modifications?

A: The 6609006-7 maintains identical electrical specifications and panel cutout dimensions to the 3EEAP. Direct replacement is supported for applications requiring IEC 320-C14 receptacle connectors with 3A current rating and 120/250VAC voltage rating. No design modifications are required for electrical or mechanical integration.

Q: What are the key differences between the 6609006-7 and FN9226-3-02?

A: Both parts maintain identical electrical specifications and mounting configurations. The primary differences are panel cutout dimensions (6609006-7: 30.48mm x 22.86mm; FN9226-3-02: 34.40mm x 22.60mm) and ingress protection rating (FN9226-3-02 includes IP40). The FN9226-3-02 requires panel cutout modification for installation.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. The 3EEAP, 6609006-7, and FN9226-3-02 are all ROHS3 compliant, meeting environmental and material composition requirements.

Q: What regulatory approvals apply to these parts?

A: The 3EEAP and 6609006-7 carry CSA, UL, and VDE approvals. The FN9226-3-02 carries CSA, ENEC, SEMKO, and UL approvals. All parts meet commercial-grade EMI/RFI filtering standards.

Q: Why is the 3EEAP classified as obsolete?

A: The 3EEAP is no longer in active production. The 6609006-7 (EEJ Series) represents the current active product line from TE Connectivity Corcom Filters for this connector category.

Q: Can the FN9226-3-02 be used in applications originally designed for the 3EEAP?

A: The FN9226-3-02 maintains electrical compatibility and mounting type. Panel cutout dimensions differ, requiring mechanical design review. Applications with fixed panel cutout dimensions may require panel modification or alternative part selection.

Q: What is the current inventory status for substitute parts?

A: The 6609006-7 has 1105 pieces in stock. The FN9226-3-02 has 1055 pieces in stock. Both parts are available as new original components.
