MEC Switches 3ATL680 Equivalent & Substitute Parts

Part Overview

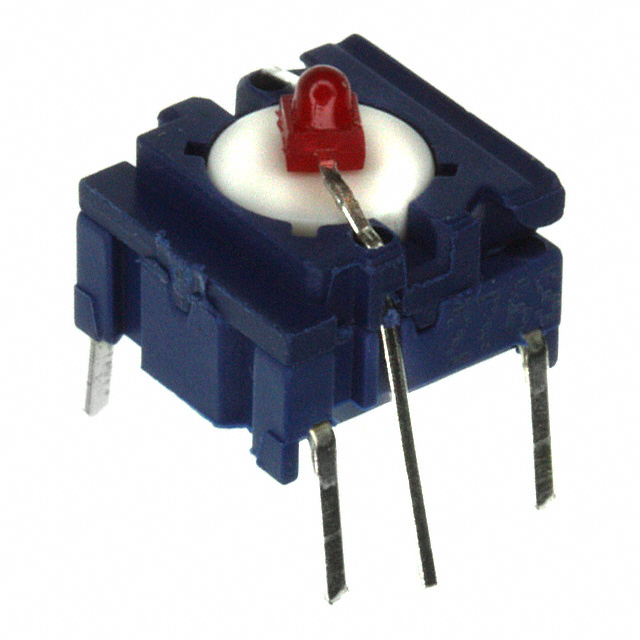

The MEC Switches 3ATL680 is a tactile switch with SPST-NO circuit configuration, rated for 0.05A at 24VDC. This component features top-actuated plunger operation, illuminated LED indicator in red, and sealed construction for IP67 ingress protection. The 3ATL680 is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations where equivalent functionality is required.

Substiute Parts

3ATL680

MEC SwitchesIn Stock: 7553ATL680 Datasheet

Current PartRFQ

5GTH93582

MEC SwitchesIn Stock: 19245GTH93582 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3ATL680 is determined by strict equivalence across the following critical parameters:

• Circuit configuration (SPST-NO)
• Contact rating (0.05A @ 24VDC)
• Mounting type (Through Hole)
• Physical outline (10.10mm x 10.10mm)
• Illumination specification (LED, Red, 2VDC nominal)
• Ingress protection rating (IP67)
• Switch travel distance (1.00mm)
• Termination style (PC Pin)
• Mechanical life rating (10,000,000 cycles minimum)
• RoHS3 compliance

The MEC Switches 5GTH93582 meets all substitution criteria. This part maintains functional and mechanical compatibility while offering active product status and enhanced operating temperature range.

Parameter Comparison

Engineering Selection Recommendations

The 5GTH93582 is the qualified substitute for the obsolete 3ATL680. Both parts maintain identical electrical and mechanical specifications across all critical functional parameters. The 5GTH93582 offers the advantage of active product status, ensuring continued availability and supply chain reliability.

The 5GTH93582 features an extended operating temperature range (-40°C to 160°C versus -40°C to 115°C) and upgraded actuator material composition (Polyphenylene Sulfide versus Polybutylene Terephthalate), providing enhanced thermal stability. Operating force increases from 300gf to 350gf, representing a minor specification variance within acceptable substitution tolerance for this switch category.

Both parts maintain ROHS3 compliance, REACH unaffected status, and identical electrical classification (EAR99). Packaging differs between the main part and substitute; the 5GTH93582 is supplied in tube packaging format.

Frequently Asked Questions (FAQ)

Q: Can the 5GTH93582 directly replace the 3ATL680 in existing designs?

A: Yes. The 5GTH93582 maintains identical circuit configuration, contact rating, mounting type, physical outline, illumination specification, and ingress protection rating. All critical functional and mechanical parameters are equivalent.

Q: What is the significance of the operating force difference (300gf vs. 350gf)?

A: Operating force represents the pressure required to actuate the switch. The 50gf increase in the 5GTH93582 falls within normal manufacturing tolerance ranges for tactile switches and does not affect functional compatibility or circuit operation.

Q: Why does the 5GTH93582 have a higher maximum operating temperature?

A: The upgraded actuator material (Polyphenylene Sulfide) provides superior thermal stability compared to the original Polybutylene Terephthalate material. This enhancement extends the usable temperature range without affecting performance within the original specification window.

Q: Are there packaging considerations for the substitute part?

A: The 5GTH93582 is supplied in tube packaging, whereas the 3ATL680 original packaging format is not specified in this reference. Verify packaging requirements for your procurement and assembly processes.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the 3ATL680 and 5GTH93582 are ROHS3 compliant, REACH unaffected, and classified under ECCN EAR99 with identical HTSUS coding (8536.50.9031).

Q: What is the inventory status for the substitute part?

A: The 5GTH93582 is an active product with 1900 pieces in stock, providing reliable supply availability compared to the obsolete 3ATL680 status.
