MEC Switches 3ATL620 Equivalent & Substitute Parts

Part Overview

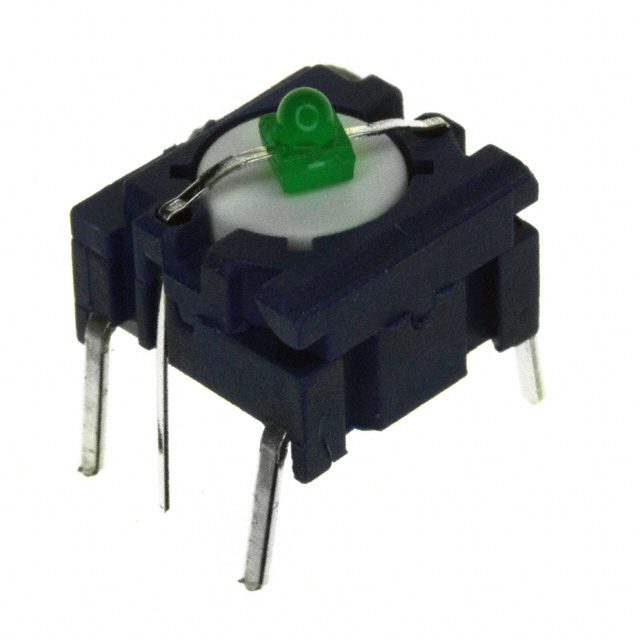

The MEC Switches 3ATL620 is a tactile switch with SPST-NO (Single Pole Single Throw - Normally Open) circuit configuration, rated for 0.05A at 24VDC. This component features top actuation, through-hole mounting, and integrated green LED illumination. The 3ATL620 is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations where this series is no longer available.

Substiute Parts

3ATL620

MEC SwitchesIn Stock: 9863ATL620 Datasheet

Current PartRFQ

5GTH93522

APEM Inc.In Stock: 356075GTH93522 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 3ATL620 is determined by the following critical parameters:

• Circuit Configuration: SPST-NO topology must be maintained
• Contact Rating: Electrical performance at 0.05A @ 24VDC or higher
• Mounting Type: Through-hole PCB mounting compatibility
• Actuator Characteristics: Top actuation with comparable mechanical properties
• Outline Dimensions: Physical footprint compatibility (10.10mm x 10.10mm)
• Environmental Compliance: RoHS and REACH certification status
• Regulatory Classification: ECCN and HTSUS codes for supply chain continuity

The substitute part 5GTH93522 from APEM Inc. is identified as a functionally equivalent alternative based on matching circuit topology, contact rating capability, and through-hole mounting configuration. Both components share identical ECCN (EAR99) and HTSUS (8536.50.9031) classifications, ensuring regulatory consistency.

Parameter Comparison

Engineering Selection Recommendations

The 5GTH93522 from APEM Inc. is an active product with current manufacturing support, providing supply chain continuity for applications previously using the obsolete 3ATL620. Both components share identical regulatory classifications (ECCN EAR99, HTSUS 8536.50.9031) and maintain RoHS compliance, ensuring no regulatory barriers to substitution.

The primary advantage of the 5GTH93522 is its active product status, guaranteeing ongoing availability and consistent manufacturing quality. For applications requiring the specific mechanical and electrical characteristics of the 3ATL620, the 5GTH93522 serves as the designated equivalent based on circuit topology and contact rating alignment.

Frequently Asked Questions (FAQ)

Q: Why is the 3ATL620 no longer available? A: The 3ATL620 is classified as obsolete by MEC Switches. Obsolete products are no longer manufactured and existing inventory is limited. The 5GTH93522 is the identified equivalent for ongoing applications.

Q: What are the critical parameters for substitution? A: Circuit configuration (SPST-NO), contact rating (0.05A @ 24VDC), mounting type (through-hole), and physical outline dimensions (10.10mm x 10.10mm) are the primary criteria determining substitution compatibility.

Q: Are there compliance differences between the 3ATL620 and 5GTH93522? A: Both components share identical ECCN (EAR99) and HTSUS (8536.50.9031) classifications. The 3ATL620 is ROHS3 compliant while the 5GTH93522 is RoHS compliant, both meeting current regulatory requirements.

Q: Can the 5GTH93522 be used as a direct replacement in existing designs? A: The 5GTH93522 is functionally equivalent based on circuit topology and electrical rating. Physical footprint and mounting compatibility should be confirmed against your specific PCB layout and mechanical assembly requirements.

Q: What is the inventory status of these components? A: The 3ATL620 has 888 pieces available as new original stock. The 5GTH93522 has 35,497 pieces available as new original stock, providing significantly greater supply availability.
