TE Connectivity AMP Connectors 3-969484-1 Equivalent & Substitute Parts

Part Overview

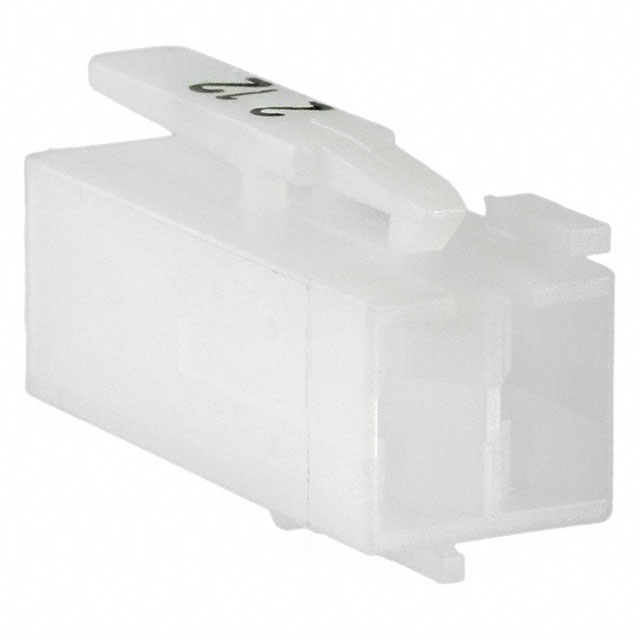

The TE Connectivity AMP Connectors 3-969484-1 is a 2-position rectangular connector receptacle housing with 5.00mm pitch, designed for free-hanging in-line mounting applications. This component features crimp contact termination and latch lock fastening, constructed from polyamide (PA66) nylon 6/6 material in natural color.

The 3-969484-1 is classified as obsolete. Equivalent and substitute parts are available in active product status, offering direct functional replacement with enhanced specifications and improved availability.

Substiute Parts

3-969484-1

TE Connectivity AMP ConnectorsIn Stock: 6713-969484-1 Datasheet

Current PartRFQ

3-1241961-1

TE Connectivity AMP ConnectorsIn Stock: 9313-1241961-1 Datasheet

DirectRFQ

3-1241961-2

TE Connectivity AMP ConnectorsIn Stock: 8323-1241961-2 Datasheet

Parametric EquivalentRFQ

5-928247-2

TE Connectivity AMP ConnectorsIn Stock: 302305-928247-2 Datasheet

Parametric EquivalentRFQ

6-1241961-2

TE Connectivity AMP ConnectorsIn Stock: 42646-1241961-2 Datasheet

Parametric EquivalentRFQ

6-928247-2

TE Connectivity AMP ConnectorsIn Stock: 111666-928247-2 Datasheet

Parametric EquivalentRFQ

7-1241961-2

TE Connectivity AMP ConnectorsIn Stock: 10697-1241961-2 Datasheet

Parametric EquivalentRFQ

9-1241961-2

TE Connectivity AMP ConnectorsIn Stock: 34629-1241961-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 3-969484-1 is determined by strict equivalence across the following critical parameters:

Primary Substitution Criteria:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 2
• Pitch: 0.197" (5.00mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock

Secondary Compatibility Parameters:

• Insulation Material composition (PA66, PA6, or PA variants)
• Operating Temperature range (-40°C minimum, 105°C or 110°C maximum)
• Color (Natural or Green)
• RoHS and MSL compliance status

All substitute parts listed maintain identical connector geometry, position count, pitch spacing, and termination method. Variations in insulation material formulation (PA66 versus PA6 versus PA) and operating temperature ranges do not affect mechanical or electrical compatibility for this rectangular connector housing category.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes for Active Production:

The 3-1241961-1, 3-1241961-2, 6-1241961-2, 7-1241961-2, and 9-1241961-2 are direct functional equivalents in active product status. These parts maintain identical connector geometry and electrical characteristics while offering improved availability and current manufacturing compliance.

Material and Temperature Considerations:

Parts 3-1241961-1, 3-1241961-2, 6-1241961-2, and 7-1241961-2 utilize PA6 (nylon 6) insulation material with operating temperature range of -40°C to 105°C. Part 9-1241961-2 maintains PA66 (nylon 6/6) material consistent with the original 3-969484-1, also rated -40°C to 105°C.

Extended Temperature Applications:

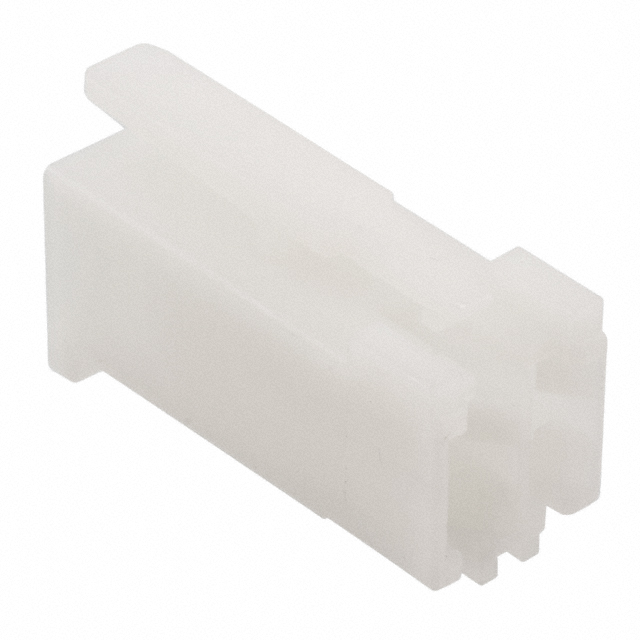

Parts 5-928247-2 and 6-928247-2 provide extended operating temperature capability to 110°C. Part 5-928247-2 features green color insulation, while 6-928247-2 maintains natural color. Both utilize PA (nylon) insulation material.

Compliance Status:

All substitute parts maintain RoHS compliance. Parts 3-1241961-1 and 6-1241961-2 carry ROHS3 designation. All parts maintain MSL 1 (Unlimited) moisture sensitivity rating, except 6-928247-2 which is not applicable for MSL classification.

Inventory Availability:

Part 5-928247-2 offers the highest inventory level at 30,121 pieces. Part 6-928247-2 provides 11,099 pieces. Parts 3-1241961-1, 3-1241961-2, 6-1241961-2, 9-1241961-2, and 7-1241961-2 maintain inventory levels between 768 and 4,197 pieces.

Frequently Asked Questions (FAQ)

Q: Can 3-1241961-2 directly replace the obsolete 3-969484-1?

A: Yes. Both parts share identical connector type (receptacle), contact type (female socket), position count (2), pitch (5.00mm), mounting type (free hanging in-line), contact termination (crimp), and fastening type (latch lock). The 3-1241961-2 is active product status with RoHS compliance and equivalent MSL rating.

Q: What is the difference between PA6 and PA66 insulation material in these connectors?

A: Both PA6 (nylon 6) and PA66 (nylon 6/6) are polyamide materials used for connector housing insulation. The substitutes utilize either PA6 or PA66 formulations. Both materials maintain the same mechanical and electrical performance for this connector housing application. Part 9-1241961-2 preserves the original PA66 material specification.

Q: Why does 5-928247-2 have a higher operating temperature rating?

A: Part 5-928247-2 is rated to -40°C to 110°C, compared to -40°C to 105°C for most other substitutes. This extended upper temperature limit is a material property of the PA (nylon) insulation formulation used in this part variant.

Q: Is the green color of 5-928247-2 functionally equivalent to the natural color of the original part?

A: Yes. Color is a visual identifier only and does not affect electrical or mechanical function. Part 5-928247-2 maintains all critical connector parameters identical to the original 3-969484-1. Color selection is determined by application requirements or system identification standards.

Q: What does MSL 1 (Unlimited) mean for these connectors?

A: MSL 1 (Unlimited) indicates the component has unlimited shelf life and does not require special moisture control during storage or handling. This applies to all substitute parts except 6-928247-2, which carries no MSL classification.

Q: Are all substitute parts RoHS compliant?

A: Yes. All substitute parts listed carry RoHS compliance designation. Parts 3-1241961-1 and 6-1241961-2 specifically carry ROHS3 certification. The original 3-969484-1 also carries ROHS3 compliance.

Q: Can I use 6-928247-2 in applications requiring ROHS3 certification?

A: Part 6-928247-2 carries RoHS Compliant status but does not specify ROHS3 designation. If ROHS3 certification is required, use 3-1241961-1, 6-1241961-2, or the original 3-969484-1 instead.

Q: What is the significance of the prefix numbers (3-, 5-, 6-, 7-, 9-) in the part numbers?

A: The prefix numbers indicate different manufacturing variants or packaging configurations within the TE Connectivity AMP Connectors product line. All variants listed maintain identical connector specifications and are functionally interchangeable based on the core parameters.

Q: Which substitute part offers the best inventory availability?

A: Part 5-928247-2 offers the highest inventory level at 30,121 pieces in stock. This part is suitable for applications where color is not a constraint and the extended 110°C temperature rating is acceptable.
