Equivalent & Substitute Parts for Honeywell 392JA5K

Part Overview

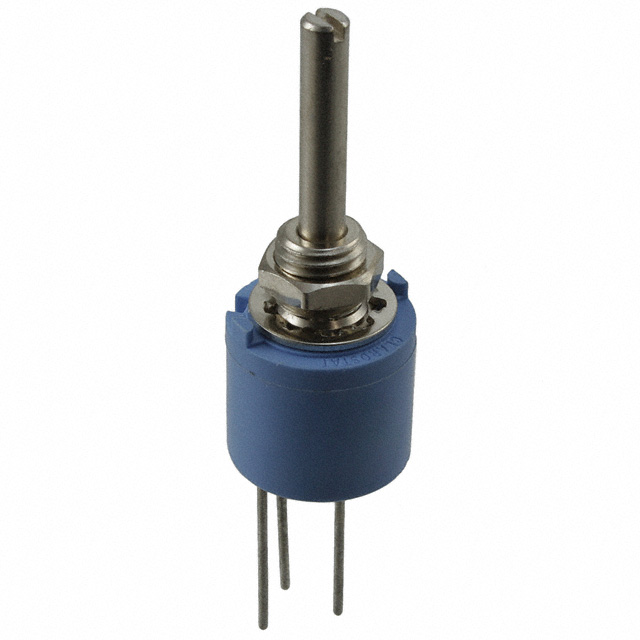

The Honeywell 392JA5K is a 5k Ohm, 1/2W linear panel mount potentiometer featuring conductive plastic resistive material, PC pin termination, and slotted top adjustment. This component is classified as obsolete, necessitating identification of active substitute parts for ongoing procurement and design applications. The 392 series potentiometer is designed for applications requiring precise linear resistance adjustment with panel-mounted configuration.

Substiute Parts

392JA5K

Honeywell Sensing and Productivity SolutionsIn Stock: 956392JA5K Datasheet

Current PartRFQ

SPRU5021S28

Precision Electronics CorporationIn Stock: 809SPRU5021S28 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Honeywell 392JA5K is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Resistance value: 5k Ohm
• Power rating: 0.5W, 1/2W
• Tolerance: ±10%
• Taper characteristic: Linear

Mechanical Parameters:

• Mounting configuration: Panel Mount
• Termination: PC Pins
• Rotation angle: 295°
• Actuator specifications: Slotted type, 0.875" length, 0.125" diameter
• Bushing thread: 1/4-32
• Body diameter: 0.510" (12.95mm)

Functional Parameters:

• Number of gangs: 1
• Number of turns: 1
• Adjustment type: Top Adjustment

The substitute part SPRU5021S28 maintains equivalence across all mechanical, electrical, and functional parameters. The primary difference is the resistive material composition (carbon versus conductive plastic) and product status (active versus obsolete).

Parameter Comparison

Engineering Selection Recommendations

The Precision Electronics Corporation SPRU5021S28 is a direct functional equivalent to the obsolete Honeywell 392JA5K potentiometer. Both components satisfy identical electrical and mechanical specifications across all critical parameters including resistance value, power rating, tolerance, taper, rotation angle, termination style, and mounting configuration.

Product Status Consideration: The Honeywell 392JA5K is classified as obsolete, while the SPRU5021S28 maintains active product status. For new designs and ongoing procurement, the SPRU5021S28 is the appropriate selection to ensure long-term component availability and supply chain continuity.

Compliance Status: Both components maintain RoHS compliance. The SPRU5021S28 carries ROHS3 certification, representing current regulatory compliance standards. Both components are classified under ECCN EAR99 and HTSUS 8533.40.8070.

Material Composition: The primary technical difference between these components is the resistive material. The 392JA5K employs conductive plastic resistive material, while the SPRU5021S28 uses carbon resistive material. Both materials deliver equivalent electrical performance within the specified tolerance and power rating parameters for this application category.

Frequently Asked Questions (FAQ)

Q: Can the SPRU5021S28 directly replace the Honeywell 392JA5K in existing applications?

A: Yes. The SPRU5021S28 maintains complete mechanical and electrical equivalence across all specified parameters. Panel mounting configuration, PC pin termination, actuator dimensions, bushing thread specification, and electrical characteristics are identical. Direct substitution is supported without circuit or mechanical redesign.

Q: What is the significance of the resistive material difference between conductive plastic and carbon?

A: Both conductive plastic and carbon resistive materials deliver equivalent performance within the specified tolerance (±10%) and power rating (0.5W, 1/2W) for this potentiometer category. The material difference does not affect electrical performance, mechanical compatibility, or functional operation within the defined parameters.

Q: Why is the Honeywell 392JA5K classified as obsolete?

A: Obsolescence classification indicates that the manufacturer has discontinued production. The SPRU5021S28 maintains active product status, ensuring ongoing availability for procurement and supply chain requirements.

Q: Are there packaging differences between these components?

A: The Honeywell 392JA5K is specified with standard packaging, while the SPRU5021S28 is supplied in bulk packaging. Both components are identical in form, fit, and function. Packaging differences do not affect component performance or compatibility.

Q: Do both components meet current regulatory compliance standards?

A: Yes. Both the Honeywell 392JA5K and SPRU5021S28 are RoHS compliant. The SPRU5021S28 carries ROHS3 certification, representing current regulatory standards. Both components are classified as EAR99 and carry identical HTSUS classification.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is determined by equivalence across resistance value (5k Ohm), power rating (0.5W, 1/2W), tolerance (±10%), taper (Linear), rotation angle (295°), termination style (PC Pins), mounting type (Panel Mount), actuator specifications (slotted, 0.875" length, 0.125" diameter), bushing thread (1/4-32), and body diameter (0.510"). All parameters are identical between the two components.
