TE Connectivity 3-928247-2 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

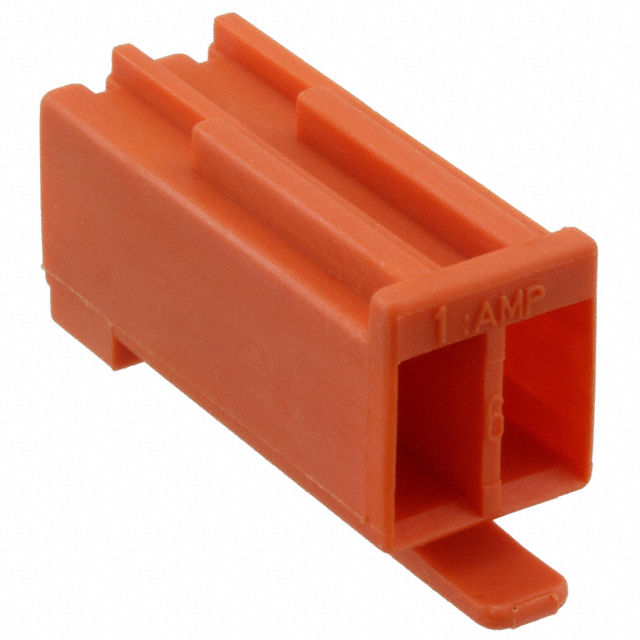

The TE Connectivity 3-928247-2 is a 2-position rectangular connector receptacle housing with 5.00mm pitch, designed for free-hanging in-line mounting applications. This Orange polyamide housing accommodates female socket contacts via crimp termination and features latch lock fastening. The part is Active in product status with 1123 units currently in stock.

Substitute parts are necessary when specific color requirements, material specifications, or inventory constraints necessitate alternative housing variants that maintain electrical and mechanical compatibility within the Standard Timer series.

Substiute Parts

3-928247-2

TE Connectivity AMP ConnectorsIn Stock: 11693-928247-2 Datasheet

Current PartRFQ

3-1241961-2

TE Connectivity AMP ConnectorsIn Stock: 8323-1241961-2 Datasheet

Parametric EquivalentRFQ

5-928247-2

TE Connectivity AMP ConnectorsIn Stock: 302305-928247-2 Datasheet

Parametric EquivalentRFQ

6-1241961-2

TE Connectivity AMP ConnectorsIn Stock: 42646-1241961-2 Datasheet

Parametric EquivalentRFQ

6-928247-2

TE Connectivity AMP ConnectorsIn Stock: 111666-928247-2 Datasheet

Parametric EquivalentRFQ

7-1241961-2

TE Connectivity AMP ConnectorsIn Stock: 10697-1241961-2 Datasheet

Parametric EquivalentRFQ

9-1241961-2

TE Connectivity AMP ConnectorsIn Stock: 34629-1241961-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 3-928247-2 are determined by strict adherence to the following critical parameters:

Mandatory Compatibility Parameters:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 2
• Pitch: 0.197" (5.00mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock
• Series: Standard Timer

Variable Parameters (Substitution Basis):

• Color: Orange, Natural, or Green
• Insulation Material: Polyamide (PA), Polyamide (PA6), or Polyamide (PA66)
• Operating Temperature Range: -40°C ~ 110°C or -40°C ~ 105°C
• RoHS Status: RoHS Compliant or ROHS3 Compliant
• MSL: 1 (Unlimited) or Not Applicable

All substitute parts maintain identical electrical and mechanical interface specifications, differing only in housing color, material composition, and thermal/compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute (Highest Compatibility): The 5-928247-2 provides full electrical and mechanical compatibility with identical operating temperature range (-40°C ~ 110°C) and insulation material specification (Polyamide PA, Nylon). The only difference is housing color (Green vs. Orange). This part carries the highest inventory availability at 30121 units.

Secondary Substitutes (Temperature Derating Required): Parts 3-1241961-2, 6-1241961-2, 7-1241961-2, and 9-1241961-2 operate at -40°C ~ 105°C, representing a 5°C reduction in maximum operating temperature compared to the 3-928247-2. These parts utilize Polyamide PA6 or PA66 materials. Selection of these alternatives is appropriate for applications where the upper temperature limit does not exceed 105°C.

Compliance Considerations: All substitute parts maintain RoHS compliance. Part 6-1241961-2 carries ROHS3 certification. Part 6-928247-2 carries RoHS Compliant status with MSL listed as Not Applicable, distinguishing it from other variants.

Inventory Optimization: When color is not a critical design parameter, 5-928247-2 (Green, 30121 units) or 6-928247-2 (Natural, 11099 units) offer superior stock availability for immediate procurement.

Frequently Asked Questions (FAQ)

Q: Can I substitute 3-928247-2 with 5-928247-2? A: Yes. Both parts share identical electrical specifications, mechanical interface, pitch (5.00mm), number of positions (2), mounting type (free-hanging in-line), contact termination (crimp), and fastening type (latch lock). Both operate across -40°C ~ 110°C and use Polyamide (PA) Nylon insulation. The only difference is housing color (Orange vs. Green).

Q: What is the temperature limitation when using 3-1241961-2 as a substitute? A: The 3-1241961-2 operates at -40°C ~ 105°C, which is 5°C lower than the 3-928247-2 (-40°C ~ 110°C). This part is suitable for applications where the maximum operating temperature does not exceed 105°C. All other electrical and mechanical parameters remain compatible.

Q: Are there material differences between substitute parts? A: Yes. The 3-928247-2 and 5-928247-2 use Polyamide (PA) Nylon. Parts 3-1241961-2, 6-1241961-2, and 7-1241961-2 use Polyamide (PA6) Nylon 6. Part 9-1241961-2 uses Polyamide (PA66) Nylon 6/6. All materials are polyamide-based and maintain compatibility with the connector interface. Material selection may affect chemical resistance and mechanical properties in specific environments.

Q: Do all substitute parts have the same RoHS compliance status? A: Most substitute parts are RoHS Compliant. Part 6-1241961-2 carries ROHS3 Compliant certification. Part 6-928247-2 is RoHS Compliant with MSL listed as Not Applicable. For applications requiring specific RoHS certification levels, verify the compliance status of the selected substitute.

Q: Which substitute part has the best inventory availability? A: The 5-928247-2 (Green housing) has the highest inventory at 30121 units, followed by 6-928247-2 (Natural housing) at 11099 units. Both provide immediate availability for high-volume procurement.

Q: Can I use 6-928247-2 as a direct replacement for 3-928247-2? A: The 6-928247-2 is electrically and mechanically compatible with identical operating temperature range and insulation material. However, the MSL status differs (Not Applicable vs. 1 Unlimited). For moisture-sensitive applications, this distinction may be relevant. Housing color is Natural rather than Orange.

Q: Are contacts included with these connector housings? A: No. All parts in this series are housings only. Contacts are not included and must be procured separately. Ensure selected contacts are compatible with crimp termination and female socket specifications.
