TE Connectivity 3-87977-1 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

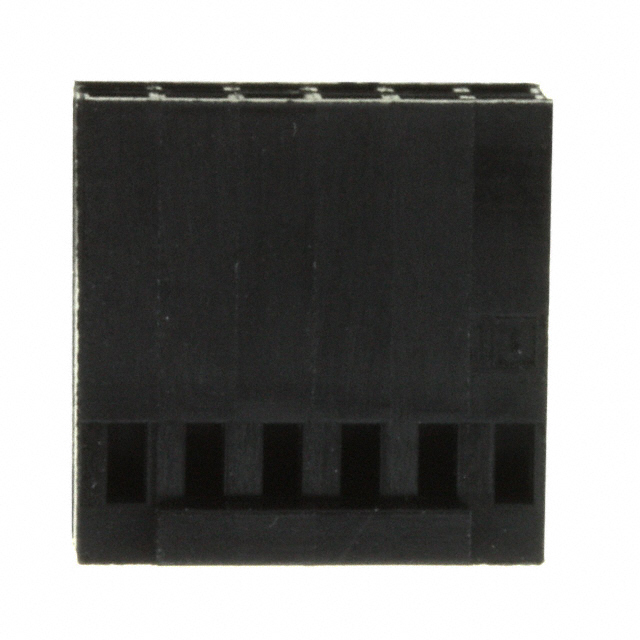

The TE Connectivity 3-87977-1 is a 12-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component is part of the AMPMODU Mod IV series and serves as the insulation housing for female socket contacts in free-hanging, in-line configurations. The part is actively manufactured and RoHS compliant.

Substitute parts are identified when equivalent rectangular connector housings share the same electrical and mechanical specifications: 12 positions, 2 rows, 0.100" (2.54mm) pitch and row spacing, receptacle type with female socket contacts, crimp termination, and compatible operating temperature ranges. Alternative housings may differ in insulation material composition or color while maintaining functional equivalence.

Key Parameters

Parameter	Specification
Manufacturer Part Number	3-87977-1
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	12
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-65°C ~ 105°C
Product Status	Active
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 3-87977-1 are identified based on strict parametric equivalence across the following critical dimensions:

Mandatory Matching Parameters:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 12
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

Variable Parameters (Substitution Allowed):

Insulation Material: Different polymer compositions (Polyamide, Thermoplastic, Polyester, Polybutylene Terephthalate)
Color: Black, Gray, or Green
Operating Temperature Range: -65°C to 105°C or -40°C to 120°C
Series Designation: AMPMODU Mod IV, AMPMODU, or Micro Quadlok
RoHS Status: RoHS Compliant or ROHS3 Compliant

Substitutes are grouped into two categories: direct series equivalents within AMPMODU Mod IV, and cross-series alternatives from AMPMODU and Micro Quadlok families that maintain all electrical and mechanical compatibility.

Parameter Comparison

Part Number	Series	Insulation Material	Color	Operating Temperature	RoHS Status	Inventory (Pcs)
3-87977-1	AMPMODU Mod IV	Polyamide (PA), Nylon, Glass Filled	Black	-65°C ~ 105°C	RoHS Compliant	766
1-86177-3	AMPMODU Mod IV	Thermoplastic	Black	-65°C ~ 105°C	ROHS3 Compliant	1116
1-87133-1	AMPMODU	Polyester, Glass Filled	Black	-65°C ~ 105°C	ROHS3 Compliant	1617
1-968318-1	Micro Quadlok	Polybutylene Terephthalate (PBT), Glass Filled	Black	-40°C ~ 120°C	ROHS3 Compliant	3300
1394048-1	Micro Quadlok	Polybutylene Terephthalate (PBT), Glass Filled	Black	-40°C ~ 120°C	ROHS3 Compliant	5200
2-968318-1	Micro Quadlok	Polybutylene Terephthalate (PBT), Glass Filled	Gray	-40°C ~ 120°C	ROHS3 Compliant	3400
87456-7	AMPMODU Mod IV	Polyamide (PA), Nylon, Glass Filled	Black	-65°C ~ 105°C	RoHS Compliant	1369
87977-4	AMPMODU Mod IV	Thermoplastic	Black	-65°C ~ 105°C	RoHS Compliant	7991
925370-6	AMPMODU Mod IV	Polyamide (PA66), Nylon 6/6, Glass Filled	Green	-65°C ~ 105°C	RoHS Compliant	2905
926209-6	-	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65°C ~ 105°C	RoHS Compliant	937
926476-6	AMPMODU Mod IV	Thermoplastic	Black	-65°C ~ 105°C	ROHS3 Compliant	770

Engineering Selection Recommendations

Primary Substitutes (Same Series, Same Temperature Range):

Parts 87977-4, 87456-7, and 1-86177-3 are direct substitutes within the AMPMODU Mod IV series, maintaining the -65°C to 105°C operating temperature specification. These parts differ only in insulation material composition (Thermoplastic versus Polyamide/Nylon). Selection among these options depends on application-specific material requirements. Part 87977-4 offers the highest inventory availability (7991 units).

Cross-Series Substitutes (Extended Temperature Range):

Parts 1-968318-1 and 1394048-1 from the Micro Quadlok series provide an extended operating temperature range of -40°C to 120°C and carry ROHS3 compliance. These parts are suitable for applications requiring higher temperature performance. Part 1394048-1 provides the highest inventory level (5200 units) among all substitutes.

Color Variants:

Part 2-968318-1 (Gray) and 925370-6 (Green) are functionally equivalent to the 3-87977-1 but differ in housing color. These are selected when color coding or visual identification requirements specify non-black housings.

Compliance Considerations:

All substitute parts maintain MSL Level 1 (Unlimited) moisture sensitivity and are either RoHS Compliant or ROHS3 Compliant. Parts carrying ROHS3 designation (1-86177-3, 1-87133-1, 1-968318-1, 1394048-1, 926476-6) represent updated compliance certifications.

Frequently Asked Questions (FAQ)

Q: Can I substitute 3-87977-1 with 1394048-1?

A: Yes. Both parts share identical electrical and mechanical specifications: 12 positions, 0.100" pitch, 2-row configuration, receptacle type with female socket contacts, and crimp termination. The primary difference is the extended operating temperature range (-40°C to 120°C versus -65°C to 105°C) and insulation material (PBT glass-filled versus Polyamide). Substitution is valid for applications within the overlapping temperature range (-40°C to 105°C).

Q: What is the difference between AMPMODU Mod IV and Micro Quadlok series substitutes?

A: Both series provide 12-position, 0.100" pitch receptacle housings with identical contact configurations. AMPMODU Mod IV parts (3-87977-1, 87977-4, 87456-7, 1-86177-3) operate at -65°C to 105°C. Micro Quadlok parts (1-968318-1, 1394048-1, 2-968318-1) operate at -40°C to 120°C. Series selection depends on application temperature requirements and connector interface compatibility with mating plugs.

Q: Are color variants functionally equivalent?

A: Yes. Parts 2-968318-1 (Gray) and 925370-6 (Green) are functionally identical to the black 3-87977-1 in all electrical and mechanical parameters. Color differences serve visual identification purposes only and do not affect electrical performance or mechanical compatibility.

Q: What does MSL Level 1 mean for this connector housing?

A: MSL Level 1 indicates unlimited moisture sensitivity, meaning the component has no moisture absorption restrictions and requires no special handling, storage, or baking procedures prior to assembly. This applies to all listed substitute parts.

Q: Can I use 87977-4 as a direct replacement for 3-87977-1?

A: Yes. Part 87977-4 is a direct substitute within the same AMPMODU Mod IV series. Both parts maintain identical specifications for positions, pitch, row configuration, mounting type, and operating temperature range. The only difference is the insulation material (Thermoplastic versus Polyamide/Nylon Glass Filled).

Q: Which substitute offers the best inventory availability?

A: Part 87977-4 provides the highest inventory level at 7991 units, followed by 1394048-1 at 5200 units. Both are suitable substitutes depending on application requirements.

Q: Do all substitutes require the same contact specifications?

A: Yes. All listed substitute housings are designed for identical crimp-terminated female socket contacts at 0.100" (2.54mm) pitch. Contact selection and specifications remain unchanged regardless of which housing substitute is selected.
