TE Connectivity 3-87456-8 Rectangular Connector Housing – Equivalent & Substitute Parts

Part Overview

The TE Connectivity 3-87456-8 is a 44-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component is part of the AMPMODU Mod IV series and serves as the female socket housing in modular connector assemblies. The part is currently Active in product status with 764 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity.

Substiute Parts

3-87456-8

TE Connectivity AMP ConnectorsIn Stock: 8173-87456-8 Datasheet

Current PartRFQ

3-87456-7

TE Connectivity AMP ConnectorsIn Stock: 8963-87456-7 Datasheet

Parametric EquivalentRFQ

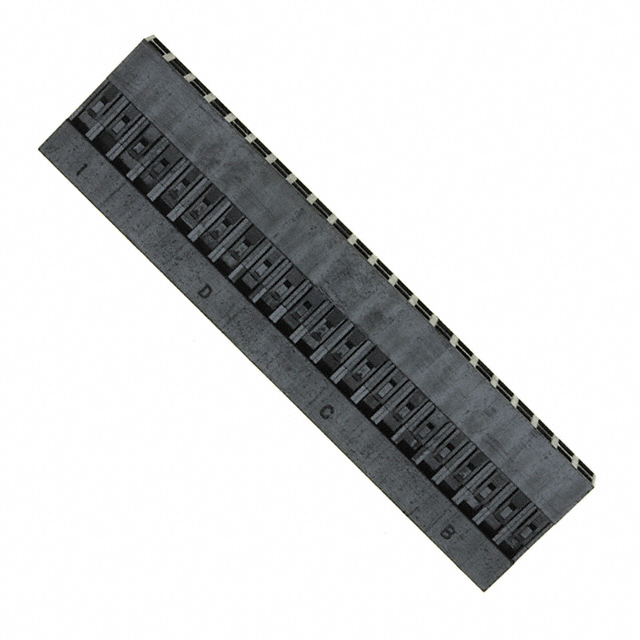

65043-015LF

Amphenol ICC (FCI)In Stock: 87265043-015LF Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 3-87456-8 are identified based on strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 44
• Pitch: 0.100" (2.54mm)
• Number of Rows: 2
• Row Spacing: 0.100" (2.54mm)
• Contact Termination: Crimp

Mechanical Compatibility Parameters:

• Mounting Type: Free Hanging (In-Line)
• Color: Black

Environmental & Compliance Parameters:

• RoHS Compliance: Required
• Moisture Sensitivity Level: 1 (Unlimited)
• Operating Temperature Range: Minimum -40°C to maximum 105°C

Two substitute parts meet these criteria: TE Connectivity 3-87456-7 and Amphenol ICC 65043-015LF. Both maintain identical electrical and mechanical specifications while differing in insulation material composition and operating temperature lower limits.

Parameter Comparison

Engineering Selection Recommendations

TE Connectivity 3-87456-7: This substitute maintains identical specifications to the main part 3-87456-8, including insulation material composition and operating temperature range. Both parts are from the same manufacturer and series (AMPMODU Mod IV). Selection of 3-87456-7 is appropriate when supply of the primary part is constrained, as it provides direct functional equivalence with no parameter deviations. Current inventory of 886 units exceeds that of the main part.

Amphenol ICC 65043-015LF: This substitute provides electrical and mechanical equivalence across all critical connector parameters. The part differs in insulation material (Polyphenylene, Modified versus Polyamide) and operating temperature lower limit (-40°C versus -65°C). Selection of 65043-015LF is appropriate for applications where the operating temperature range of -40°C to 105°C is sufficient. This part is from a different manufacturer and series (Mini-PV™, Basics+), offering cross-manufacturer compatibility. Current inventory of 804 units is available.

All three parts maintain RoHS compliance, MSL Level 1 rating, and Active product status, ensuring regulatory and supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can 3-87456-7 be used as a direct replacement for 3-87456-8?

A: Yes. The 3-87456-7 is a parametric equivalent with identical electrical, mechanical, and environmental specifications. Both parts share the same manufacturer, series, insulation material, and operating temperature range.

Q: What is the primary difference between 3-87456-8 and 65043-015LF?

A: The primary differences are manufacturer (TE Connectivity versus Amphenol ICC), series designation (AMPMODU Mod IV versus Mini-PV™, Basics+), insulation material (Polyamide versus Polyphenylene, Modified), and operating temperature lower limit (-65°C versus -40°C). All electrical and mechanical parameters remain equivalent.

Q: Is 65043-015LF suitable for applications requiring -65°C operation?

A: No. The 65043-015LF operating temperature range is -40°C to 105°C. Applications requiring operation below -40°C must use 3-87456-8 or 3-87456-7, both rated to -65°C.

Q: Are contacts included with these connector housings?

A: No. All three parts (3-87456-8, 3-87456-7, and 65043-015LF) are housings only. Contacts must be sourced separately and are not included.

Q: Do all three parts have the same pitch and position configuration?

A: Yes. All three parts are 44-position receptacles with 0.100" (2.54mm) pitch, 2-row configuration, and 0.100" (2.54mm) row spacing.

Q: Are all three parts RoHS compliant?

A: Yes. All three parts carry RoHS Compliant status and are suitable for applications requiring regulatory compliance.

Q: What is the Moisture Sensitivity Level (MSL) for these parts?

A: All three parts are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
