TE Connectivity AMP Connectors 382811-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 382811-5 is a 2-position shunt connector designed for use in the AMPMODU series. This component functions as an open-top female socket connector with a 0.100" (2.54mm) pitch configuration. The part is currently in active product status and maintains an inventory of 2406 pieces in new original condition. Substitute parts are identified when packaging format, compliance status, or contact finish specifications differ while maintaining identical electrical and mechanical compatibility parameters.

Substiute Parts

382811-5

TE Connectivity AMP ConnectorsIn Stock: 2514382811-5 Datasheet

Current PartRFQ

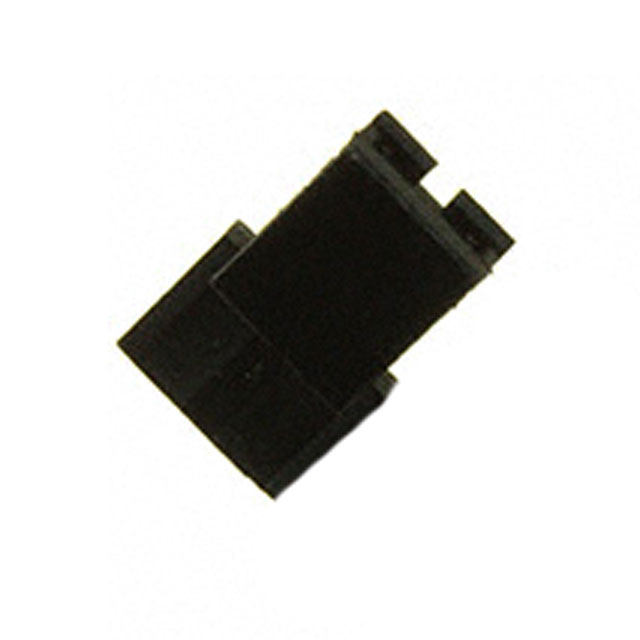

2-382811-1

TE Connectivity AMP ConnectorsIn Stock: 479532-382811-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 382811-5 is determined by equivalence across the following critical parameters: connector series (AMPMODU), position count (2 positions in 1 x 2 configuration), pitch spacing (0.100" / 2.54mm), connector type (open top), gender (female sockets), physical height (0.250"), housing material (polyester, glass filled), flammability rating (UL94 V-0), and contact finish thickness (100.0µin).

The identified substitute part 2-382811-1 maintains all these core mechanical and electrical parameters. Differences exist in packaging format (strip versus bulk), contact finish composition (tin-lead versus tin), and regulatory compliance status (RoHS non-compliant versus RoHS compliant). These differences do not affect functional interchangeability in applications where the connector specifications are the controlling requirement.

Parameter Comparison

Engineering Selection Recommendations

Both the 382811-5 and 2-382811-1 are active products from TE Connectivity AMP Connectors and maintain identical mechanical and electrical specifications for the AMPMODU series 2-position connector platform. Selection between these parts is determined by application-specific requirements:

The 382811-5 is supplied in strip packaging and features a tin-lead contact finish. This configuration is suitable for applications where tin-lead specifications are explicitly required or where RoHS compliance is not a design constraint.

The 2-382811-1 is supplied in bulk packaging and features a tin contact finish with RoHS compliance certification. This configuration is appropriate for applications subject to RoHS directives or where lead-free contact materials are specified. The bulk packaging format accommodates high-volume production requirements.

Both parts satisfy UL94 V-0 flammability requirements and maintain unlimited moisture sensitivity classification, ensuring suitability for standard industrial and commercial environments.

Frequently Asked Questions (FAQ)

Q: Are the 382811-5 and 2-382811-1 mechanically interchangeable?

A: Yes. Both parts share identical position count (2 positions in 1 x 2 configuration), pitch spacing (0.100" / 2.54mm), connector type (open top), gender (female sockets), height (0.250"), and housing material (polyester, glass filled). Mechanical interchangeability is confirmed.

Q: What is the difference between tin-lead and tin contact finishes?

A: The 382811-5 features a tin-lead contact finish, while the 2-382811-1 features a tin contact finish. Both maintain the same contact finish thickness of 100.0µin (2.54µm). The contact finish material affects compliance certifications and soldering characteristics but does not alter the connector's mechanical or electrical interface specifications.

Q: Does RoHS compliance affect connector performance?

A: RoHS compliance status reflects the material composition of the connector, specifically the absence of lead in the contact finish. The 2-382811-1 is RoHS compliant with a tin finish, while the 382811-5 is RoHS non-compliant with a tin-lead finish. Both parts maintain identical electrical and mechanical performance characteristics. Selection is based on regulatory requirements applicable to the end application.

Q: What packaging formats are available?

A: The 382811-5 is supplied in strip packaging, suitable for lower-volume applications and manual assembly processes. The 2-382811-1 is supplied in bulk packaging, designed for high-volume production environments. Packaging format does not affect connector specifications or performance.

Q: Are both parts currently in production?

A: Yes. Both the 382811-5 and 2-382811-1 maintain active product status with TE Connectivity AMP Connectors. The 382811-5 has 2406 pieces in inventory, and the 2-382811-1 has 47943 pieces in inventory.

Q: Can these connectors be used in applications requiring lead-free compliance?

A: The 2-382811-1 with tin contact finish and RoHS compliance certification is suitable for lead-free applications. The 382811-5 with tin-lead contact finish is not suitable for applications requiring lead-free compliance.
