Equivalent & Substitute Parts for 35RAPC2AV4

Part Overview

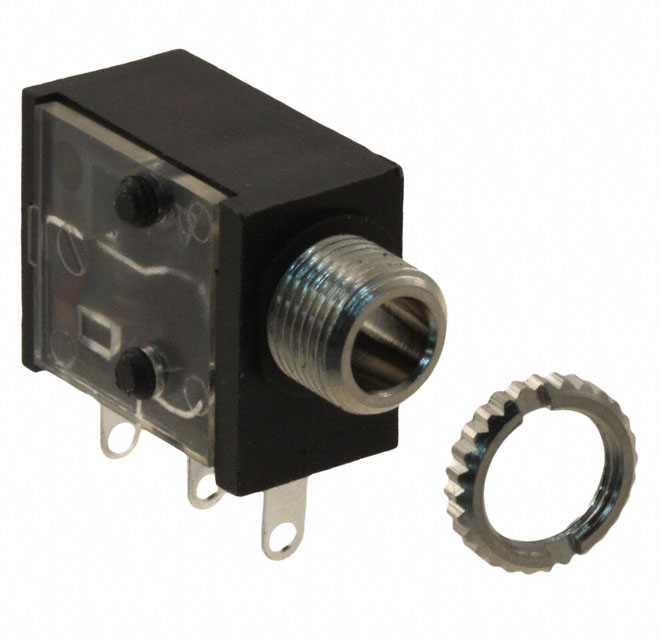

The 35RAPC2AV4 is a 4.6mm mono phone jack connector manufactured by Switchcraft Inc., designed for headphone and audio applications. This right-angle, panel-mount connector features solder eyelet termination and includes mounting hardware with thread lock. The part is currently active in production with 750 units in stock. Substitute parts are identified when equivalent electrical and mechanical specifications are maintained across the connector interface, allowing for interchangeability in circuit designs without functional compromise.

Substiute Parts

35RAPC2AV4

Switchcraft Inc.In Stock: 76535RAPC2AV4 Datasheet

Current PartRFQ

35RAPC2AV

Switchcraft Inc.In Stock: 338335RAPC2AV Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 35RAPC2AV4 is determined by strict equivalence across the following critical parameters:

• Connector Type: Phone Jack (Female gender)
• Signal Configuration: Mono (single audio channel)
• Mating Diameter: 4.60mm (0.141", 1/8", Mini Plug) - Headphone standard
• Number of Positions/Contacts: 2 Conductors, 3 Contacts
• Internal Switch Configuration: Single Switch
• Mounting Orientation: Right Angle
• Termination Method: Solder Eyelet(s)
• Contact Material Plating: Silver
• Body Material: Brass
• Housing Material: Polybutylene Terephthalate (PBT)
• Contact Material: Copper Alloy
• Regulatory Compliance: ROHS3 Compliant, REACH Unaffected

The substitute part 35RAPC2AV maintains all critical electrical and mechanical parameters required for direct substitution. Differences in packaging configuration and included accessories do not affect connector functionality or circuit compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the 35RAPC2AV4 and 35RAPC2AV are active production parts from Switchcraft Inc. with full ROHS3 compliance and REACH unaffected status. The electrical and mechanical interface specifications are identical, ensuring functional equivalence in circuit applications. The 35RAPC2AV offers higher inventory availability (3340 units versus 750 units), which may be relevant for supply chain planning. Both parts maintain the same contact material composition, plating specifications, and housing materials required for reliable audio signal transmission in headphone jack applications.

Frequently Asked Questions (FAQ)

Q: Can the 35RAPC2AV be used as a direct replacement for the 35RAPC2AV4?

A: Yes. Both connectors maintain identical electrical and mechanical specifications across all critical parameters: 4.6mm mono phone jack configuration, 2 conductors with 3 contacts, single internal switch, right-angle mounting orientation, and solder eyelet termination. The connector interface and circuit compatibility are equivalent.

Q: What is the difference between the 35RAPC2AV4 and 35RAPC2AV?

A: The primary difference is in the mounting type specification. The 35RAPC2AV4 includes panel mount capability, while the 35RAPC2AV is specified for through-hole mounting only. Additionally, the 35RAPC2AV4 includes mounting hardware (nut and washer), whereas the 35RAPC2AV does not list included accessories. All electrical and mechanical interface parameters remain identical.

Q: Are both parts suitable for headphone jack applications?

A: Yes. Both the 35RAPC2AV4 and 35RAPC2AV are designed for 4.6mm headphone jack applications with mono signal transmission. The silver-plated copper alloy contacts and brass body provide appropriate electrical and mechanical characteristics for audio connector applications.

Q: What regulatory certifications apply to these connectors?

A: Both parts are ROHS3 compliant and REACH unaffected, meeting current environmental and hazardous substance regulations for electronic components.

Q: Does the difference in included accessories affect connector functionality?

A: No. The included accessories (nut and washer for the 35RAPC2AV4) are mounting hardware only and do not affect the electrical or mechanical interface specifications of the connector itself.
