3M 3565-2000 D-Sub 50 Position Receptacle Connector - Equivalent & Substitute Parts

Part Overview

The 3M 3565-2000 is a 50-position receptacle connector with panel mount configuration and IDC (Insulation Displacement Contact) termination. This connector is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system support and component procurement.

The part operates within the D-Sub, D-Shaped Connectors category and is designed for applications requiring high-density signal distribution with reliable panel-mounted installation. The obsolete status necessitates evaluation of active substitute components that maintain electrical and mechanical compatibility.

Substiute Parts

3565-2000

3MIn Stock: 8713565-2000 Datasheet

Current PartRFQ

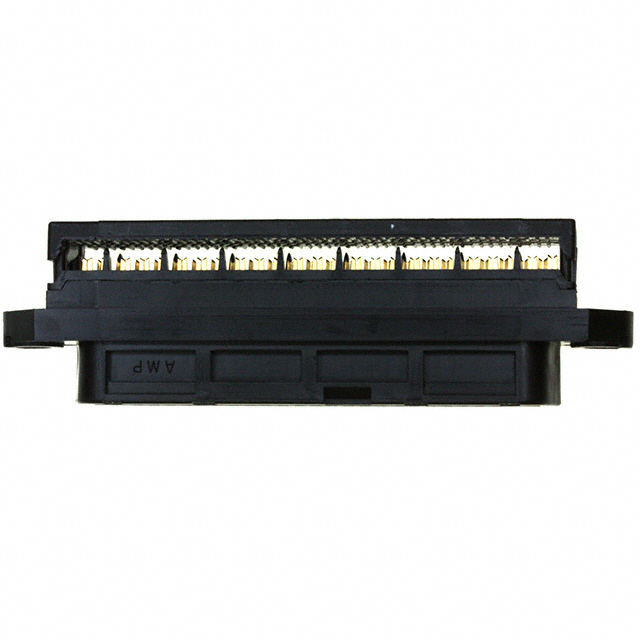

554090-1

TE Connectivity AMP ConnectorsIn Stock: 1713554090-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 3M 3565-2000 is determined by strict equivalence across the following critical parameters:

• Connector Type & Position Count: Both main and substitute parts must be 50-position receptacles
• Electrical Configuration: 2-row arrangement maintained across all alternatives
• Mounting & Termination: Panel mount configuration with IDC termination required
• Contact System: Outer shroud contacts with gold finish at 30.0µin thickness
• Mechanical Interface: Unthreaded housing/shell flange feature
• Environmental Rating: MSL 1 (Unlimited) moisture sensitivity level

The TE Connectivity AMP Connectors part 554090-1 satisfies all specified parameters and is designated as the manufacturer-recommended substitute.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 554090-1 is the appropriate substitute for the obsolete 3M 3565-2000 based on the following factors:

Product Status: The 3M 3565-2000 is classified as obsolete, while the TE Connectivity 554090-1 maintains active product status, ensuring continued availability and manufacturing support.

Electrical & Mechanical Equivalence: All critical parameters—position count, row configuration, termination method, contact finish specifications, and environmental ratings—are identical between the two parts.

Compliance Alignment: Both components share identical ECCN (EAR99) and HTSUS (8536.69.4051) classifications, maintaining regulatory consistency in procurement and deployment.

Inventory Availability: The substitute part is available in higher quantity (1630 pcs) compared to remaining stock of the obsolete part (761 pcs), supporting long-term supply chain continuity.

Frequently Asked Questions (FAQ)

Q: What makes the TE Connectivity 554090-1 a valid substitute for the 3M 3565-2000?

A: Both connectors are 50-position receptacles with identical electrical and mechanical specifications: 2-row configuration, panel mount installation, IDC termination, outer shroud contacts, gold finish at 30.0µin thickness, and unthreaded housing. All critical parameters required for functional equivalence are matched.

Q: Are there any differences in packaging between these parts?

A: The 3M 3565-2000 packaging specification is not provided in the technical data. The TE Connectivity 554090-1 is supplied in Tray packaging. Packaging differences do not affect electrical or mechanical compatibility.

Q: Why is the 3M part listed as obsolete?

A: The 3M 3565-2000 has reached end-of-life status. The TE Connectivity 554090-1 remains in active production, making it the recommended path for new designs and component replenishment.

Q: Are the contact finish specifications identical?

A: Yes. Both parts feature gold contact finish at 30.0µin (0.76µm) thickness, ensuring equivalent electrical performance and corrosion resistance.

Q: Do both parts share the same environmental rating?

A: Yes. Both components are rated MSL 1 (Unlimited), indicating no moisture sensitivity limitations for storage or handling.

Q: What is the series designation for each part?

A: The 3M 3565-2000 belongs to the 3000 series. The TE Connectivity 554090-1 belongs to the CHAMP .085 series. Series designation does not affect functional compatibility when all electrical and mechanical parameters are equivalent.
