TE Connectivity AMP Connectors 35626 Ring Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 35626 is a ring terminal connector designed for 14-16 AWG wire applications with a #14 stud circular configuration. This component features crimp termination and insulated construction with serrated termination for secure wire attachment. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and system maintenance. Substitute parts must maintain compatibility across wire gauge, termination method, and stud/tab size specifications to ensure proper electrical and mechanical performance in ring terminal applications.

Substiute Parts

35626

TE Connectivity AMP ConnectorsIn Stock: 112335626 Datasheet

Current PartRFQ

35349

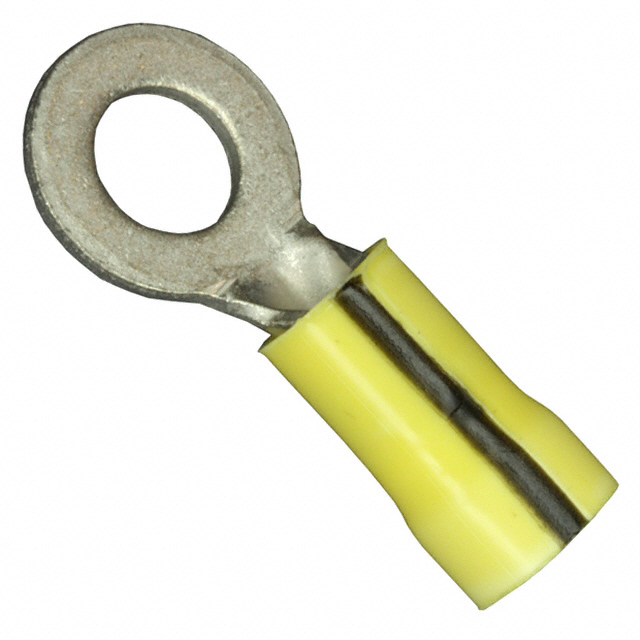

TE Connectivity AMP ConnectorsIn Stock: 994735349 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 35626 is determined by the following critical parameters that must align between the main part and substitute alternatives:

Wire Gauge Compatibility: Both the main part and substitute must support 14-16 AWG wire gauge to ensure proper crimp contact and electrical conductivity.

Termination Method: Crimp termination is required for both parts to maintain compatibility with existing assembly processes and equipment.

Terminal Type: Circular ring terminal configuration must be preserved to ensure mechanical fit with stud-mounted connections.

Contact Material and Finish: Copper with tin finish ensures consistent electrical performance and corrosion resistance across substitutions.

Insulation Material: Poly-Vinyl Chloride (PVC) insulation provides equivalent environmental protection and mechanical durability.

Stud/Tab Size Variation: While the main part features a #14 stud, substitute parts with different stud sizes (such as 1/4 inch) are acceptable when the stud diameter accommodates the connection point and the wire gauge remains within the 14-16 AWG specification.

The substitute part 35349 meets these criteria while offering active product status and improved compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The 35626 is classified as obsolete, which restricts long-term procurement availability. The substitute part 35349 maintains active product status, ensuring continued supply chain access and manufacturing support.

Compliance and Certification: The 35626 is RoHS non-compliant, while the 35349 is ROHS3 compliant. For applications subject to RoHS directives or customer requirements mandating compliance, the 35349 provides the necessary regulatory alignment.

Functional Equivalence: Both parts support identical wire gauge specifications (14-16 AWG) and employ crimp termination with copper-tin contact materials. The circular ring terminal configuration is preserved across both parts, maintaining mechanical compatibility with stud-mounted connection points.

Mechanical Differences: The 35349 features increased thickness (0.048" versus 0.031"), greater overall length (1.188" versus 0.981"), and a larger stud size (1/4 inch versus #14 stud). These dimensional variations result in a heavier-duty construction suitable for applications requiring enhanced mechanical robustness. The wider insulation diameter range (0.150" ~ 0.250" versus 0.150" ~ 0.190") accommodates a broader spectrum of wire insulation thicknesses.

Series Transition: The transition from Plasti-Bond (35626) to Plasti-Grip (35349) series reflects product line evolution within TE Connectivity's terminal offerings, with the newer series incorporating enhanced durability features.

Frequently Asked Questions (FAQ)

Q: Can the 35349 substitute for the 35626 in all applications?

A: The 35349 is functionally equivalent for wire gauge and termination method. However, the stud size difference (#14 versus 1/4 inch) requires verification that the connection point accommodates the larger stud diameter. The heavier-duty construction of the 35349 is compatible with applications previously using the 35626.

Q: What is the significance of the stud size difference between these parts?

A: The #14 stud (35626) and 1/4 inch stud (35349) are different diameter specifications. The 1/4 inch stud is larger and provides greater mechanical strength. Substitution is valid only when the mounting point accepts the 1/4 inch stud diameter.

Q: Why does the 35349 have a larger insulation diameter range?

A: The 35349 accommodates insulation diameters from 0.150" to 0.250", compared to the 35626 range of 0.150" to 0.190". This expanded range allows the 35349 to crimp onto wires with thicker insulation jackets, providing greater application flexibility.

Q: Is RoHS compliance a mandatory consideration for substitution?

A: RoHS compliance depends on application requirements and regulatory jurisdiction. The 35626 is RoHS non-compliant, while the 35349 is ROHS3 compliant. Applications subject to RoHS directives or customer specifications requiring compliance must use the 35349.

Q: Are the crimp termination processes identical between these parts?

A: Both parts employ crimp termination with serrated termination features. The 35349 includes additional heavy-duty designation, indicating enhanced mechanical performance. Existing crimp tooling and processes compatible with 14-16 AWG ring terminals are applicable to both parts.

Q: What packaging differences exist between these parts?

A: The 35626 packaging specification is not defined in available data. The 35349 is supplied in bulk packaging, suitable for high-volume assembly operations.

Q: How do the dimensional differences affect installation?

A: The 35349 is larger in all dimensions (thickness, width, and length) compared to the 35626. These differences do not affect crimp installation but may impact spatial constraints in confined assembly areas. Verify available mounting space before substitution.
