TE Connectivity Erni 354141 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Erni 354141 is a 110 Position Receptacle connector with female sockets, featuring a 2.00mm pitch and right-angle through-hole mounting configuration. This component is classified as a backplane connector within the ERMET series and is currently listed as obsolete. Due to its obsolete product status, identifying functionally equivalent substitute parts is necessary to maintain design continuity and ensure component availability for ongoing production and repair applications.

Substiute Parts

354141

TE Connectivity ErniIn Stock: 1956354141 Datasheet

Current PartRFQ

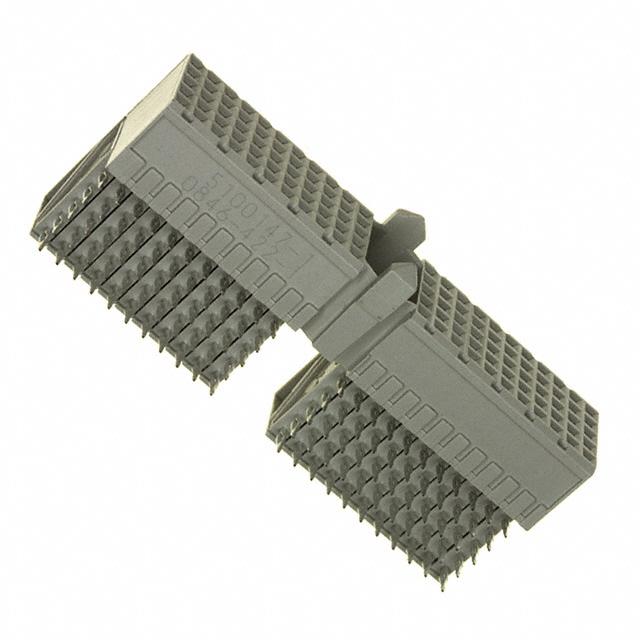

5100147-1

TE Connectivity AMP ConnectorsIn Stock: 14055100147-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity Erni 354141 is based on strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Receptacle, Female Sockets
• Number of Positions: 110
• Pitch: 0.079" (2.00mm)
• Number of Rows: 5
• Mounting Type: Through Hole, Right Angle
• Termination Type: Press-Fit
• Connector Style: A 22

The substitute part TE Connectivity AMP Connectors 5100147-1 satisfies all mandatory parameters. Both connectors maintain identical electrical and mechanical interface specifications, ensuring functional compatibility in applications requiring 110-position, 2.00mm pitch receptacle connectors with press-fit termination and right-angle mounting.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 5100147-1 is the designated substitute for the obsolete TE Connectivity Erni 354141. Both components maintain identical mechanical and electrical interface specifications across all critical parameters: 110 positions, 2.00mm pitch, 5-row configuration, A 22 connector style, through-hole right-angle mounting, and press-fit termination.

The substitute part offers the advantage of active product status, ensuring ongoing availability and supply chain continuity. Both components are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity ratings, confirming equivalent environmental compliance profiles.

The substitute part provides additional technical specifications including gold contact finish with 30.0µin thickness, 1.5 A current rating, and 500Vrms voltage rating, along with an operating temperature range of -55°C to 125°C. These specifications establish a robust performance envelope suitable for backplane connector applications.

Frequently Asked Questions (FAQ)

Q: What makes the TE Connectivity AMP 5100147-1 a suitable substitute for the Erni 354141?

A: Both connectors share identical core specifications: 110-position receptacle configuration, 2.00mm pitch, 5-row layout, A 22 connector style, through-hole right-angle mounting, and press-fit termination. These parameters define the mechanical and electrical interface, ensuring direct functional compatibility.

Q: Are there any differences in mounting configuration between these connectors?

A: The Erni 354141 specifies "Through Hole, Right Angle" mounting, while the AMP 5100147-1 specifies "Board Edge, Through Hole, Right Angle" mounting. Both configurations support through-hole right-angle mounting, maintaining compatibility with existing PCB designs.

Q: What is the significance of the product status difference?

A: The Erni 354141 is classified as obsolete, indicating discontinued production and limited availability. The AMP 5100147-1 maintains active product status, ensuring reliable supply chain access and ongoing manufacturer support for new production and replacement applications.

Q: Do both connectors meet the same compliance standards?

A: Yes. Both the Erni 354141 and AMP 5100147-1 are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity ratings, confirming equivalent environmental and regulatory compliance profiles.

Q: What additional performance specifications does the substitute part provide?

A: The AMP 5100147-1 provides documented electrical specifications including 1.5 A current rating, 500Vrms voltage rating, gold contact finish with 30.0µin thickness, and an operating temperature range of -55°C to 125°C. These specifications were not provided for the original Erni 354141.

Q: Is the packaging format different between these parts?

A: The Erni 354141 packaging format is not specified in available documentation. The AMP 5100147-1 is supplied in tube packaging, which is standard for high-position-count backplane connectors.
