TE Connectivity AMP Connectors 3-530902-0 Equivalent & Substitute Parts

Part Overview

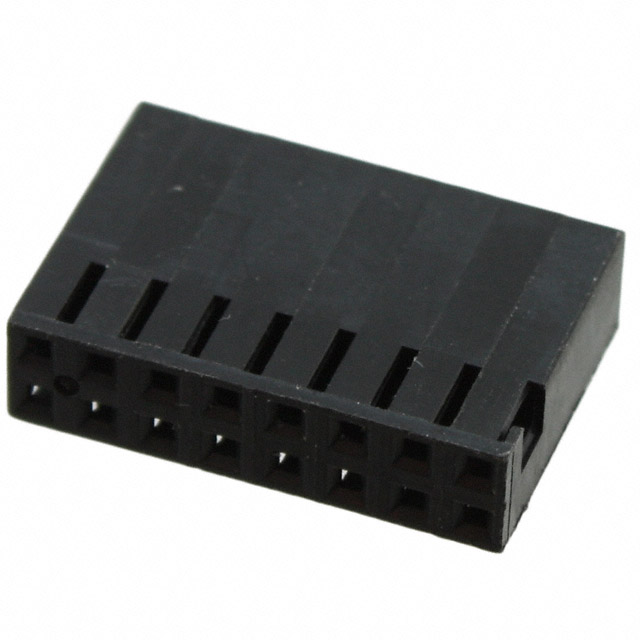

The TE Connectivity AMP Connectors 3-530902-0 is a 16-position rectangular connector housing designed for 0.100" (2.54mm) pitch applications. This receptacle housing accommodates female socket contacts and is configured with 2 rows at 0.100" row spacing. The part is classified as Obsolete, necessitating identification of active equivalent and substitute components for ongoing design and procurement requirements. Equivalent parts maintain identical electrical and mechanical parameters while offering active product status and improved availability.

Key Parameters

Parameter	Value
Manufacturer Part Number	3-530902-0
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	16
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Product Status	Obsolete
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of rectangular connector housings is determined by strict equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (16), pitch (0.100"/2.54mm), number of rows (2), row spacing (0.100"/2.54mm), mounting type (free hanging in-line), and contact termination method (crimp). All identified substitute parts maintain these core electrical and mechanical specifications.

Substitute parts are grouped into two categories:

TE Connectivity AMP Connectors Series (AMPMODU and AMPMODU Mod IV): Parts 1-87133-4, 104482-7, 1-87456-2, 925370-8, and 926476-8 are manufactured by TE Connectivity and share the AMPMODU connector series designation. These parts maintain identical pitch, position count, row configuration, and mounting characteristics. Variations exist in insulation material composition, operating temperature ranges, and product series generation (standard AMPMODU versus Mod IV variants). All are active products with current availability.

Cross-Manufacturer Equivalents: Parts 0901430016 (Molex C-Grid III 90143 series), 65043-029LF (Amphenol ICC Mini-PV™ series), and 65239-008LF (Amphenol ICC DUBOX™/MezzSelect™ series) provide parametric equivalence from alternative manufacturers. These parts maintain identical connector type, contact type, position count, pitch, row configuration, and mounting type specifications, enabling direct functional substitution in applications where cross-manufacturer compatibility is acceptable.

Parameter Comparison

Part Number	Manufacturer	Series	Positions	Pitch	Rows	Row Spacing	Color	Insulation Material	Operating Temperature	Product Status	RoHS Status
3-530902-0	TE Connectivity	AMPMODU	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Not Specified	Not Specified	Obsolete	RoHS Compliant

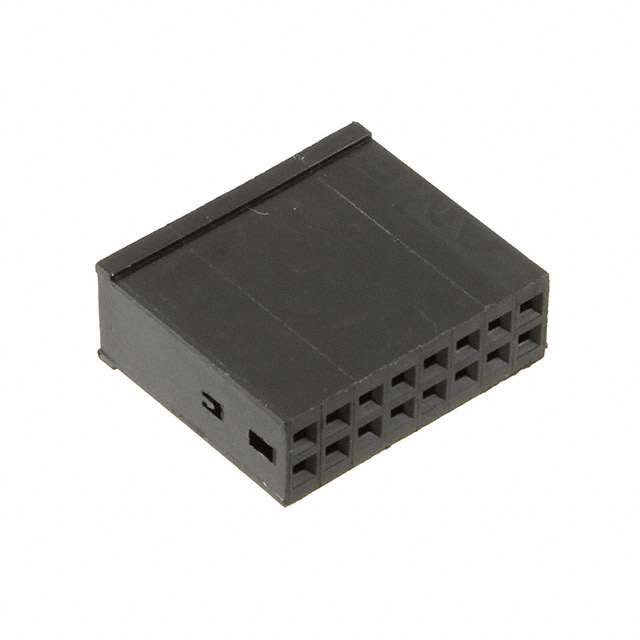

1-87133-4	TE Connectivity	AMPMODU	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Polyester, Glass Filled	-65°C ~ 105°C	Active	ROHS3 Compliant
104482-7	TE Connectivity	AMPMODU	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Thermoplastic	-65°C ~ 125°C	Active	RoHS Compliant
1-87456-2	TE Connectivity	AMPMODU Mod IV	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Polyamide (PA), Nylon, Glass Filled	-65°C ~ 105°C	Active	RoHS Compliant
925370-8	TE Connectivity	AMPMODU Mod IV	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	-65°C ~ 105°C	Active	RoHS Compliant
926476-8	TE Connectivity	AMPMODU Mod IV	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Thermoplastic	-65°C ~ 105°C	Active	RoHS Compliant
0901430016	Molex	C-Grid III 90143	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Polyphenylene Oxide (PPO)	-55°C ~ 105°C	Active	ROHS3 Compliant
65043-029LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Polyphenylene, Modified	-40°C ~ 105°C	Active	RoHS Compliant
65239-008LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	16	0.100" (2.54mm)	2	0.100" (2.54mm)	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	Active	RoHS Compliant

Engineering Selection Recommendations

Primary Substitutes (TE Connectivity AMPMODU Series):

Parts 1-87133-4 and 104482-7 are direct TE Connectivity AMPMODU series replacements for the obsolete 3-530902-0. Both maintain identical connector architecture and are active products with established supply chains. Part 1-87133-4 offers ROHS3 compliance and polyester glass-filled insulation rated to -65°C ~ 105°C. Part 104482-7 provides extended operating temperature range (-65°C ~ 125°C) with thermoplastic insulation, suitable for applications requiring broader thermal performance.

Secondary Substitutes (TE Connectivity AMPMODU Mod IV Series):

Parts 1-87456-2, 925370-8, and 926476-8 represent the newer AMPMODU Mod IV generation. These parts maintain full parametric equivalence with enhanced material specifications. Part 1-87456-2 (black, polyamide nylon glass-filled) and 926476-8 (black, thermoplastic) are color-matched to the original part. Part 925370-8 (green, polyamide PA66 nylon 6/6 glass-filled) provides identical electrical and mechanical performance with alternative color identification.

Cross-Manufacturer Alternatives:

Part 0901430016 (Molex C-Grid III 90143) is ROHS3 compliant with polyphenylene oxide insulation and -55°C ~ 105°C operating range. Part 65043-029LF (Amphenol ICC Mini-PV™) provides RoHS compliance with modified polyphenylene insulation and -40°C ~ 105°C operating range. Part 65239-008LF (Amphenol ICC DUBOX™/MezzSelect™) offers extended temperature capability (-65°C ~ 125°C) with thermoplastic glass-filled insulation and blue color identification. Cross-manufacturer substitution is appropriate where design specifications do not mandate TE Connectivity series compatibility.

All substitute parts maintain MSL 1 (Unlimited) moisture sensitivity classification, matching the original part specification.

Frequently Asked Questions (FAQ)

Q: What determines whether a part can substitute for the 3-530902-0?

A: Substitution is determined by equivalence across connector type (receptacle), contact type (female socket), number of positions (16), pitch (0.100"/2.54mm), number of rows (2), row spacing (0.100"/2.54mm), mounting type (free hanging in-line), and contact termination method (crimp). All identified substitute parts maintain these specifications.

Q: Why is the original part 3-530902-0 listed as Obsolete?

A: The part has been discontinued by TE Connectivity. Active equivalent parts from the AMPMODU and AMPMODU Mod IV series provide identical functionality with current manufacturing support and availability.

Q: Can I use parts from different manufacturers (Molex, Amphenol ICC) as direct replacements?

A: Yes. Parts 0901430016 (Molex), 65043-029LF, and 65239-008LF (Amphenol ICC) maintain identical electrical and mechanical parameters. Cross-manufacturer substitution is valid where design specifications do not require TE Connectivity series designation.

Q: What is the difference between AMPMODU and AMPMODU Mod IV series parts?

A: Both series maintain identical connector specifications. AMPMODU Mod IV represents a newer generation with updated material formulations and manufacturing processes. All parts are functionally interchangeable based on electrical and mechanical parameters.

Q: Does color variation affect substitution compatibility?

A: Color is a visual identification parameter only and does not affect electrical or mechanical function. Part 925370-8 (green) and 65239-008LF (blue) are functionally equivalent to black-colored alternatives. Color selection is determined by application requirements or design standards.

Q: What is the significance of operating temperature range differences?

A: Operating temperature ranges reflect material thermal capabilities. Part 104482-7 (-65°C ~ 125°C) and 65239-008LF (-65°C ~ 125°C) provide extended thermal performance compared to parts rated -65°C ~ 105°C. Selection depends on application thermal requirements.

Q: Are all substitute parts RoHS compliant?

A: Yes. All substitute parts carry either RoHS Compliant or ROHS3 Compliant certification, matching or exceeding the original part's RoHS Compliant status.

Q: What does MSL 1 (Unlimited) mean?

A: Moisture Sensitivity Level 1 indicates the component has unlimited shelf life and requires no special moisture control during storage or handling. All listed parts maintain this specification.

Q: Does insulation material affect connector performance?

A: Insulation material affects thermal performance, mechanical durability, and environmental resistance. Material options include polyester glass-filled, thermoplastic, polyamide nylon glass-filled, polyphenylene oxide, and modified polyphenylene. Selection depends on application thermal, mechanical, and environmental requirements.

Q: Can I mix substitute parts in the same assembly?

A: Yes. All substitute parts maintain identical connector specifications and are mechanically and electrically interchangeable. Mixed usage within a single assembly is valid from a compatibility standpoint.
