TE Connectivity AMP Connectors 352130-2 Equivalent & Substitute Parts

Part Overview

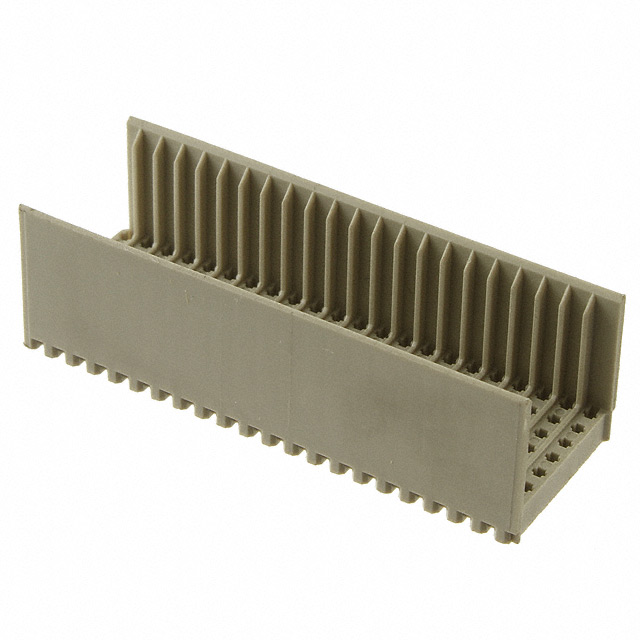

The TE Connectivity AMP Connectors 352130-2 is a 154 Position Shroud for Male Pins Connector in gray, designed for hard metric Type B22 backplane connector applications. This component features through-hole mounting and operates with a 0.079" (2.00mm) pitch across 5 + 2 rows. The part is classified as obsolete, necessitating identification of active equivalent and substitute components to maintain design continuity and ensure procurement availability for new production and legacy system support.

Substiute Parts

352130-2

TE Connectivity AMP ConnectorsIn Stock: 1196352130-2 Datasheet

Current PartRFQ

646482-5

TE Connectivity AMP ConnectorsIn Stock: 1150646482-5 Datasheet

DirectRFQ

CP2-HSB110-4

3MIn Stock: 725CP2-HSB110-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution logic for the TE Connectivity 352130-2 is based on the following critical parameters that determine functional equivalence:

Direct Equivalent Criteria:

• Connector Type: Shroud for Male Pins
• Number of Positions: 154
• Pitch: 0.079" (2.00mm)
• Connector Style: Hard Metric, Type B22
• Mounting Type: Through Hole
• Row Configuration: 5 + 2
• RoHS Compliance: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Similar Alternative Criteria:

• Connector Type: Shroud for Male Pins
• Pitch: 0.079" (2.00mm)
• Mounting Type: Through Hole
• RoHS Compliance: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The direct equivalent maintains identical electrical and mechanical specifications within the same manufacturer ecosystem. Similar alternatives provide functional shroud solutions with compatible pitch and mounting characteristics but differ in position count and row configuration, requiring design evaluation for application fit.

Parameter Comparison

Engineering Selection Recommendations

Direct Equivalent Selection: TE Connectivity 646482-5

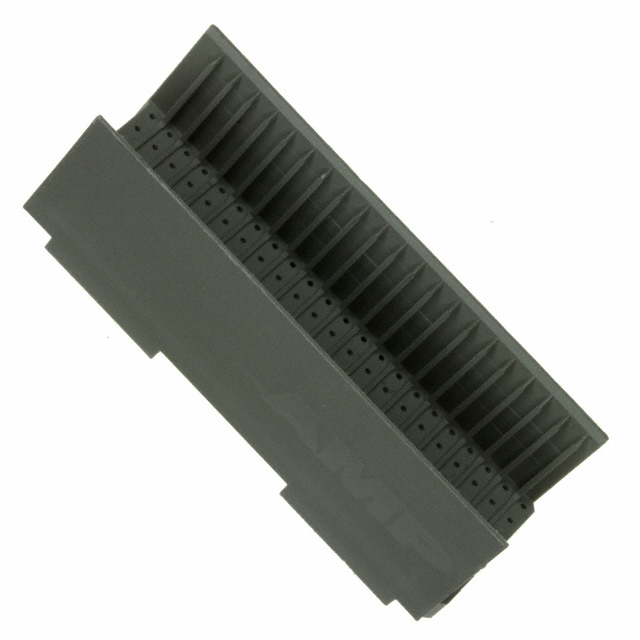

The TE Connectivity AMP Connectors 646482-5 is the primary direct equivalent for the obsolete 352130-2. This part maintains identical electrical and mechanical specifications including 154 positions, 0.079" (2.00mm) pitch, 5 + 2 row configuration, hard metric Type B22 connector style, and through-hole mounting. Both components are ROHS3 compliant with MSL 1 (Unlimited) rating. The 646482-5 carries active product status with 1114 units in stock, providing immediate procurement availability. The transition from 352130-2 to 646482-5 requires no design modification and represents a direct form-fit-function replacement.

Similar Alternative Selection: 3M CP2-HSB110-4

The 3M MetPak™ CP2 series CP2-HSB110-4 serves as a similar alternative for applications where position count flexibility exists. This shroud maintains the 0.079" (2.00mm) pitch and through-hole mounting common to the main part but operates with 110 positions across 5 rows rather than 154 positions across 5 + 2 rows. The CP2-HSB110-4 is RoHS compliant with MSL 1 (Unlimited) rating and active product status. Selection of this alternative requires design evaluation to confirm that 110 positions satisfy application requirements and that the single-row offset configuration aligns with PCB layout constraints.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 646482-5 directly replace the 352130-2 without design changes?

A: Yes. The 646482-5 maintains identical position count (154), pitch (0.079"/2.00mm), row configuration (5 + 2), connector style (hard metric Type B22), and mounting type (through hole). Both components are ROHS3 compliant with MSL 1 rating. No design modification is required.

Q: What is the primary difference between the 352130-2 and 646482-5?

A: The 352130-2 is classified as obsolete with limited procurement availability, while the 646482-5 carries active product status with confirmed inventory of 1114 units. The components are functionally equivalent.

Q: When should the 3M CP2-HSB110-4 be considered as a substitute?

A: The CP2-HSB110-4 should be evaluated only when application requirements permit reduction from 154 to 110 connector positions and when the single-row offset configuration (5 rows versus 5 + 2 rows) is compatible with PCB layout. This part is not a direct replacement but a functional alternative for position-flexible designs.

Q: Are all three parts RoHS compliant?

A: Yes. The 352130-2 and 646482-5 are ROHS3 compliant. The 3M CP2-HSB110-4 is RoHS compliant. All three components meet environmental compliance requirements.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions during storage, handling, or assembly.

Q: Does packaging differ between the 352130-2 and 646482-5?

A: The 352130-2 packaging is not specified in available documentation. The 646482-5 is supplied in bulk packaging. Confirm packaging requirements with procurement specifications.

Q: Are contacts included with these shroud components?

A: No. All three parts are shrouds only. Contacts are not included and must be sourced separately according to application requirements.
