TE Connectivity 350865-1 Rectangular Connector Plug Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 350865-1 is a 1-position rectangular connector plug housing from the Universal MATE-N-LOK series. This component serves as the housing interface for crimp-terminated male or female contacts in free-hanging inline applications. The part is classified as Active with full RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling direct functional replacement in applications where the primary part is unavailable or when alternative material or color specifications are acceptable.

Substiute Parts

350865-1

TE Connectivity AMP ConnectorsIn Stock: 7925350865-1 Datasheet

Current PartRFQ

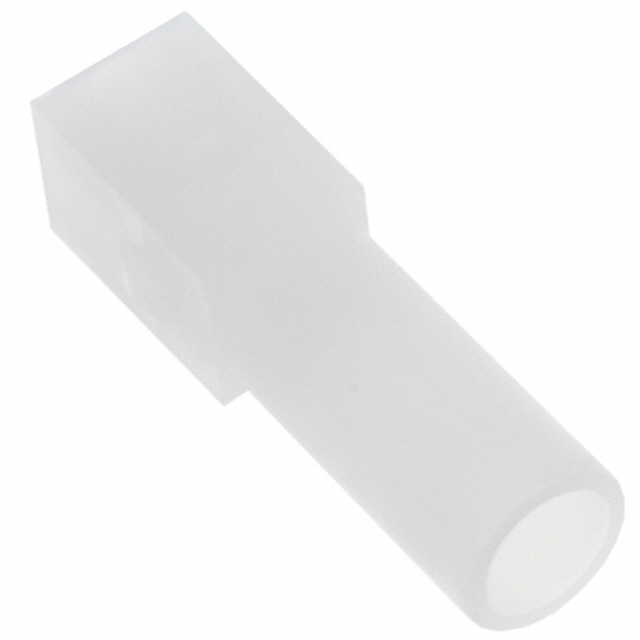

1-350867-0

TE Connectivity AMP ConnectorsIn Stock: 100521-350867-0 Datasheet

SimilarRFQ

1-350865-1

TE Connectivity AMP ConnectorsIn Stock: 138151-350865-1 Datasheet

Parametric EquivalentRFQ

0019092016

MolexIn Stock: 96530019092016 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 350865-1 are classified based on strict alignment of electrical and mechanical parameters. The primary substitution criteria are:

Core Compatibility Parameters:

• Single position (1-position) connector housing configuration
• Plug connector type with male or female contact accommodation
• Free-hanging inline mounting orientation
• Crimp contact termination method
• Locking ramp fastening mechanism
• Polyamide nylon insulation material
• Operating temperature range of -55°C to 105°C or higher
• Unlimited moisture sensitivity rating (MSL 1)
• RoHS compliance status

Acceptable Variations:

• Color specification (White, Natural) does not affect functional substitution
• Manufacturer source (TE Connectivity, Molex) does not affect functional substitution
• Series designation (Universal MATE-N-LOK, 3191) does not affect functional substitution
• Specific polyamide grade (PA, PA66, Nylon 6/6) does not affect functional substitution

Parts meeting all core compatibility parameters are classified as direct functional equivalents.

Parameter Comparison

Engineering Selection Recommendations

All identified substitute parts maintain Active product status and full regulatory compliance. Selection between the main part and substitutes is determined by application-specific requirements:

TE Connectivity 350865-1 (White): Primary specification. Select when white insulation material is required for visual identification or application-specific color coding.

TE Connectivity 1-350867-0 (Natural): Direct TE Connectivity equivalent with identical electrical and mechanical parameters. Natural color insulation provides alternative to white specification. Suitable for applications where color is not a functional requirement.

TE Connectivity 1-350865-1 (Natural): Parametric equivalent with PA66 nylon 6/6 insulation material specification. Maintains identical operating temperature range and all core mechanical parameters. Natural color insulation. Suitable for applications where enhanced polyamide grade is acceptable.

Molex 0019092016 (White): Cross-manufacturer equivalent from Molex 3191 series. Maintains all core electrical and mechanical parameters with PA66 nylon 6/6 insulation. Operating temperature range of -40°C to 105°C is suitable for applications not requiring the -55°C lower limit. ROHS3 compliance status. White insulation color matches primary specification.

All substitute parts are suitable for direct functional replacement based on provided parameter alignment.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 350865-1 be directly replaced with 1-350867-0?

A: Yes. Both parts are TE Connectivity products from the Universal MATE-N-LOK series with identical electrical and mechanical specifications. The only difference is insulation color (White versus Natural). Direct functional replacement is supported.

Q: What is the difference between 350865-1 and 1-350865-1?

A: Both parts are 1-position plug housings with identical core parameters. The difference is the polyamide grade specification: 350865-1 uses PA nylon, while 1-350865-1 uses PA66 nylon 6/6. Both materials meet the operating temperature range of -55°C to 105°C. Selection depends on material specification requirements.

Q: Is the Molex 0019092016 suitable for applications requiring -55°C operation?

A: The Molex 0019092016 operates from -40°C to 105°C. Applications requiring -55°C minimum temperature operation must use TE Connectivity parts (350865-1, 1-350867-0, or 1-350865-1), which support the full -55°C to 105°C range.

Q: Do all substitute parts support crimp termination?

A: Yes. All listed parts use crimp contact termination with locking ramp fastening. Contact insertion and removal procedures are identical across all substitutes.

Q: Are there any compatibility issues when mixing substitute parts in the same assembly?

A: No compatibility issues exist. All parts accommodate male or female contacts with identical pitch and positioning. Mechanical and electrical interfaces are fully compatible across all substitutes.

Q: What is the significance of MSL 1 (Unlimited) rating?

A: MSL 1 indicates unlimited moisture sensitivity. These parts do not require controlled moisture exposure during storage or handling and can be used immediately without baking or desiccant storage requirements.

Q: Can color be mixed between white and natural insulation in the same connector assembly?

A: Yes. Color is a visual specification only and does not affect electrical or mechanical function. White (350865-1, 0019092016) and natural (1-350867-0, 1-350865-1) housings are mechanically and electrically interchangeable.
