3M 3419-6000 Equivalent & Substitute Parts

Part Overview

The 3M 3419-6000 is a 30-position rectangular receptacle connector with IDC termination for ribbon cable applications. This connector features gold-plated contacts rated for 26-28 AWG wire gauges and is designed for free-hanging, in-line mounting configurations. The part is active in production status and fully compliant with RoHS3 and REACH regulations. Substitute parts are identified when equivalent electrical and mechanical parameters are required for component procurement, inventory management, or design flexibility.

Key Parameters

Parameter	Specification
Manufacturer Part Number	3419-6000
Manufacturer	3M
Category	Rectangular Connectors
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	30
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Cable Termination	IDC
Wire Gauge	26-28 AWG
Contact Finish	Gold
Mounting Type	Free Hanging (In-Line)
Features	Feed Through
Color	Gray
RoHS Status	RoHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the 3M 3419-6000 are qualified based on the following critical parameters that determine functional equivalence:

Core Electrical Parameters:

30-position connector configuration
0.100" (2.54mm) pitch spacing
2-row arrangement with 0.100" row spacing
IDC ribbon cable termination
Gold contact finish
Female socket contact type

Mechanical Parameters:

Free-hanging, in-line mounting orientation
Compatibility with 26-28 AWG wire gauges

Compliance Parameters:

RoHS3 compliance
REACH unaffected status
Moisture Sensitivity Level 1 (Unlimited)

The substitute parts listed maintain these core parameters while allowing for variations in connector type (receptacle vs. header), contact finish thickness, color, and additional features such as polarizing keys or strain relief. These variations do not affect the fundamental electrical and mechanical compatibility for ribbon cable IDC applications.

Parameter Comparison

Parameter	3M 3419-6000	3M D89130-0031HK	Sullins SFH210-PPPC-D15-ID-BK	Sullins SFH213-PPPC-D15-ID-BK
Connector Type	Receptacle	Receptacle	Header	Header
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	30	30	30	30
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Cable Termination	IDC	IDC	IDC	IDC
Wire Gauge	26-28 AWG	26-28 AWG	28 AWG	28 AWG
Contact Finish	Gold	Gold	Gold	Gold
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Features	Feed Through	Feed Through	Feed Through, Polarizing Key	Feed Through, Polarizing Key, Strain Relief
RoHS Status	RoHS3 Compliant	RoHS Compliant	RoHS3 Compliant	RoHS3 Compliant
Product Status	Active	Active	Active	Active

Engineering Selection Recommendations

All listed substitute parts maintain active production status and meet regulatory compliance requirements. The 3M D89130-0031HK provides the closest functional match as a receptacle connector from the same manufacturer, differing only in contact finish thickness (15.0µin vs. 30.0µin) and series designation.

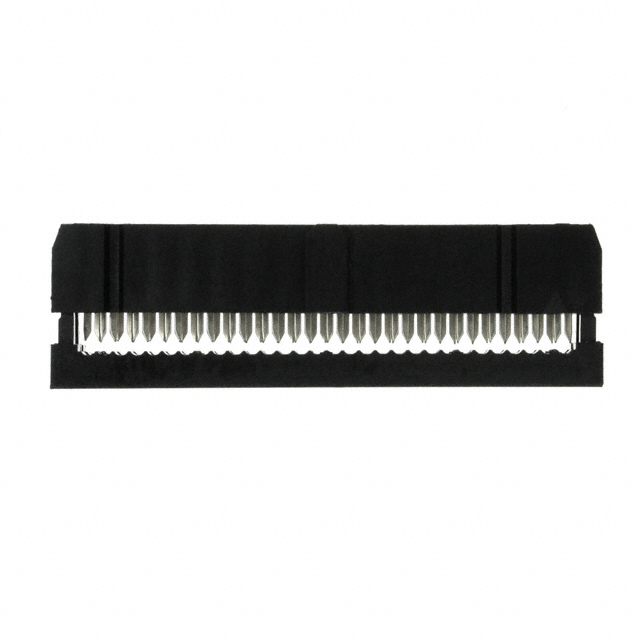

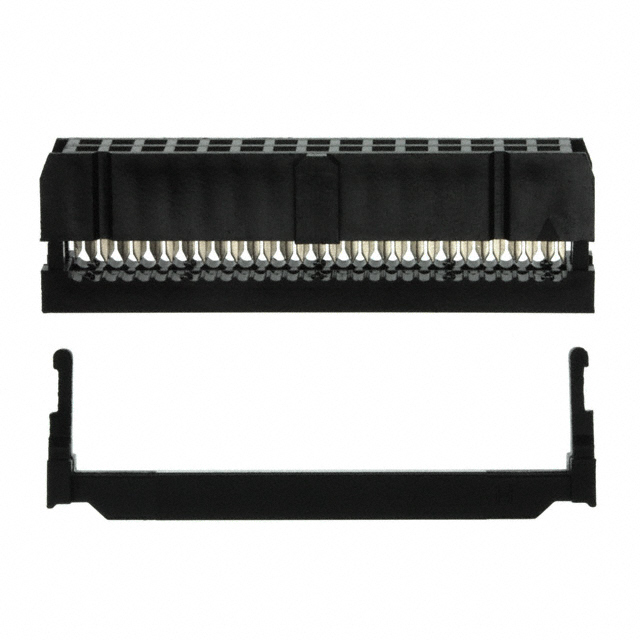

The Sullins SFH210-PPPC-D15-ID-BK and SFH213-PPPC-D15-ID-BK are header connectors that share the same electrical and mechanical specifications but differ in connector type and additional features. The SFH213 variant includes strain relief in addition to the polarizing key present on both Sullins models. Wire gauge compatibility is limited to 28 AWG for Sullins parts, whereas the 3M parts support 26-28 AWG.

Selection between these substitutes depends on specific application requirements regarding connector type (receptacle vs. header), wire gauge range, and mechanical features such as polarizing keys or strain relief.

Frequently Asked Questions (FAQ)

Q: Can the 3M D89130-0031HK directly replace the 3M 3419-6000?

A: Yes. Both are 30-position receptacle connectors with identical pitch, row spacing, IDC termination, and wire gauge specifications. The primary difference is contact finish thickness, which does not affect electrical compatibility.

Q: What is the key difference between the 3M receptacle connectors and the Sullins header connectors?

A: Connector type differs: 3M parts are receptacles designed to accept mating plugs, while Sullins parts are headers designed to mate with receptacle connectors. Both maintain the same 30-position, 0.100" pitch configuration and IDC ribbon cable termination.

Q: Are the Sullins SFH210 and SFH213 interchangeable?

A: Both share identical electrical and mechanical specifications. The SFH213 includes additional strain relief beyond the polarizing key found on both models. Selection depends on whether strain relief is required for the application.

Q: Can 26 AWG wire be used with the Sullins connectors?

A: The Sullins SFH210 and SFH213 are specified for 28 AWG wire only. The 3M 3419-6000 and D89130-0031HK support 26-28 AWG wire gauges. If 26 AWG wire is required, use 3M parts.

Q: Do all substitute parts meet the same compliance standards?

A: All parts are RoHS compliant and REACH unaffected. The 3M 3419-6000, Sullins SFH210, and Sullins SFH213 are RoHS3 compliant. The 3M D89130-0031HK is RoHS compliant. All have Moisture Sensitivity Level 1 (Unlimited).

Q: What packaging formats are available?

A: The 3M 3419-6000 and D89130-0031HK are supplied in bulk packaging. The Sullins SFH210-PPPC-D15-ID-BK and SFH213-PPPC-D15-ID-BK are supplied in tray packaging.
