TE Connectivity AMP Connectors 34160 Ring Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 34160 is an insulated ring terminal connector designed for circular stud applications. This component belongs to the Plasti-Grip series and is engineered for crimp termination on 14-16 AWG wire gauges. The part maintains Active product status and is RoHS3 compliant, making it suitable for current procurement and deployment in electronic assemblies requiring reliable ring terminal connections.

Substitute parts are identified to address packaging availability, inventory requirements, and operational continuity in manufacturing environments where the primary packaging format may be unavailable or where alternative stock conditions necessitate component alternatives.

Substiute Parts

34160

TE Connectivity AMP ConnectorsIn Stock: 81434160 Datasheet

Current PartRFQ

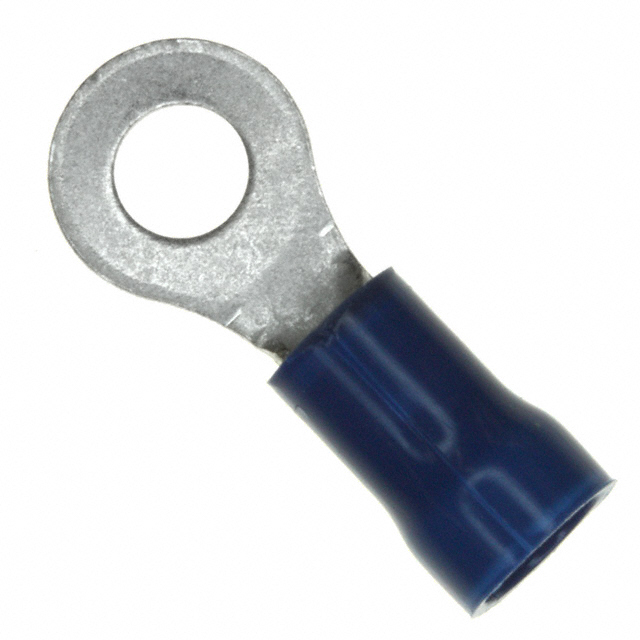

2-34160-1

TE Connectivity AMP ConnectorsIn Stock: 315352-34160-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between TE Connectivity AMP Connectors 34160 and 2-34160-1 is determined by electrical and mechanical parameter equivalence. Both parts share identical specifications across all critical functional parameters: terminal type (Circular), stud size (8 Stud), wire gauge range (14-16 AWG), crimp termination method, insulation material (PVC), contact composition (Copper with Tin finish), and physical dimensions (thickness, length, width, and insulation diameter).

The primary distinction between these parts is packaging format. Part 34160 is supplied in Bulk packaging, while part 2-34160-1 is supplied in Cut Tape (CT) packaging. Both parts are manufactured by TE Connectivity AMP Connectors within the Plasti-Grip series and maintain Active product status with equivalent compliance certifications.

Substitution is valid when the following parameters are matched:

• Terminal Type: Circular
• Stud/Tab Size: 8 Stud
• Wire Gauge: 14-16 AWG
• Termination: Crimp
• Contact Material: Copper
• Contact Finish: Tin
• Insulation Material: PVC
• Physical Dimensions (all measurements)
• Color: Blue
• Features: Serrated Termination

Parameter Comparison

Engineering Selection Recommendations

Both TE Connectivity AMP Connectors 34160 and 2-34160-1 are functionally equivalent components suitable for direct substitution in applications requiring 14-16 AWG ring terminal connectors with 8 stud circular configuration. Selection between these parts should be based on packaging requirements and inventory availability rather than electrical or mechanical performance considerations.

Part 34160 (Bulk packaging) is appropriate for high-volume manufacturing environments, assembly operations requiring loose component handling, or applications where bulk quantities support cost optimization. This format provides 749 pieces in current inventory.

Part 2-34160-1 (Cut Tape packaging) is appropriate for automated assembly processes, pick-and-place equipment integration, or manufacturing environments utilizing tape-and-reel component feeding systems. This format provides 31,464 pieces in current inventory, offering significantly higher stock availability.

Both parts maintain Active product status and comply with RoHS regulations, ensuring regulatory compliance and long-term component availability. The MSL rating of 1 (Unlimited) indicates no moisture sensitivity constraints during storage or handling.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity AMP Connectors 2-34160-1 be used as a direct replacement for part 34160?

A: Yes. Both parts are electrically and mechanically identical. The only difference is packaging format (Cut Tape versus Bulk). Direct substitution is valid for all applications where the original part is specified.

Q: What is the difference between Bulk and Cut Tape packaging?

A: Bulk packaging supplies loose components in quantity, suitable for manual assembly and high-volume operations. Cut Tape (CT) packaging supplies components on continuous tape, designed for automated assembly equipment and tape-feeding systems. The components themselves are identical.

Q: Are there any compatibility issues when substituting between these parts?

A: No compatibility issues exist. Both parts share identical electrical specifications, mechanical dimensions, material composition, and performance characteristics. Substitution is limited only by packaging format compatibility with assembly processes.

Q: Do both parts meet the same compliance standards?

A: Both parts comply with RoHS regulations and carry equivalent environmental certifications. Part 34160 is ROHS3 compliant, while part 2-34160-1 is RoHS compliant. Both meet regulatory requirements for current applications.

Q: What wire gauge range do these ring terminals accommodate?

A: Both parts are rated for 14-16 AWG wire gauges. The insulation diameter range of 0.118" to 0.193" (3.00mm to 4.90mm) accommodates standard wire insulation within this gauge specification.

Q: What is the stud size for these ring terminals?

A: Both parts feature an 8 stud circular configuration, suitable for #8 fastener applications.

Q: Are these parts suitable for high-temperature applications?

A: The provided specifications do not include operating temperature range data. Consult TE Connectivity technical documentation for thermal performance characteristics.

Q: What is the contact material composition?

A: Both parts utilize copper contacts with tin finish, providing reliable electrical conductivity and corrosion resistance for standard industrial applications.

Q: Can these parts be used in automated assembly processes?

A: Part 2-34160-1 (Cut Tape packaging) is designed for automated assembly equipment. Part 34160 (Bulk packaging) is suitable for manual assembly operations. Equipment compatibility depends on the specific assembly system configuration.

Q: What is the moisture sensitivity level for these components?

A: Both parts carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity constraints. Standard storage conditions are appropriate for both packaging formats.
