3M 3414-7000 Equivalent & Substitute Parts

Part Overview

The 3M 3414-7000 is a 34-position rectangular receptacle connector with IDC (Insulation Displacement Contact) termination for ribbon cable applications. This connector features gold-plated contacts rated for 26-28 AWG wire gauges and is designed for free-hanging, in-line mounting configurations. The part is currently active in production status with 779 units in stock inventory.

Substitute parts are necessary when the original 3M 3414-7000 becomes unavailable, when alternative sourcing is required for cost optimization, or when design flexibility permits the use of functionally equivalent connectors from other manufacturers while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Number of Positions	34
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Cable Termination	IDC
Wire Gauge	26-28 AWG
Contact Finish	Gold
Mounting Type	Free Hanging (In-Line)

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 3414-7000 is determined by the following critical parameters:

Primary Compatibility Criteria:

34-position configuration with 0.100" (2.54mm) pitch and 2-row layout
IDC cable termination method for ribbon cable
Gold contact finish
Free-hanging, in-line mounting orientation
Wire gauge compatibility within the 26-30 AWG range

Substitution Logic: The identified substitute parts maintain the core electrical and mechanical interface specifications. However, substitutes may differ in connector type (receptacle vs. header), wire gauge rating (28-30 AWG vs. 26-28 AWG), fastening mechanisms, and additional features such as polarizing keys or strain relief. These variations do not prevent functional substitution in applications where the connector type difference is accommodated by the mating interface design.

Parameter Comparison

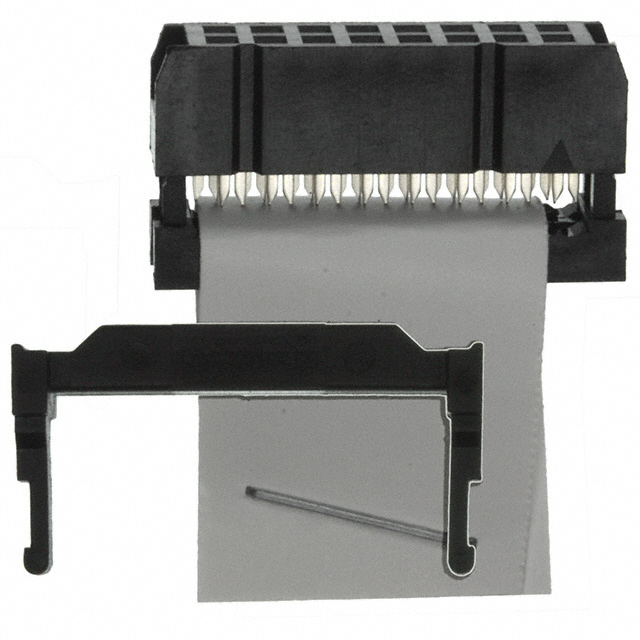

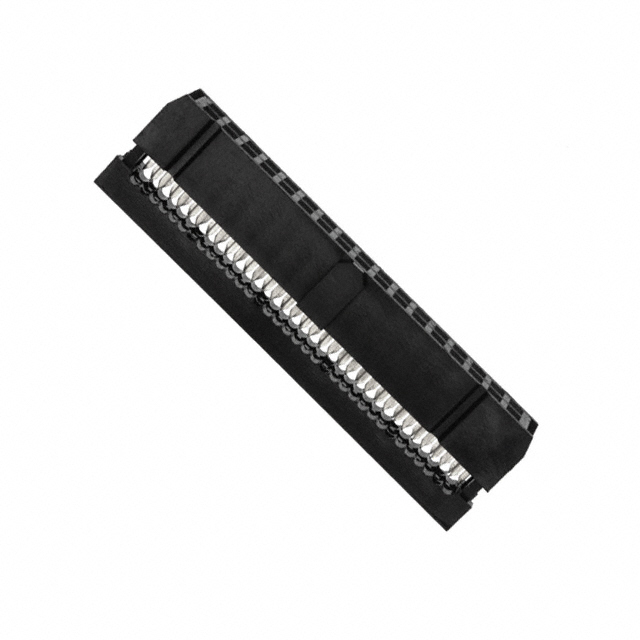

Parameter	3M 3414-7000	71600-134LF	86130343130345E1LF	SFH210-PPPC-D17-ID-BK	SFH213-PPPC-D17-ID-BK	SFH213-PPPC-D17-ID-BK-M181
Manufacturer	3M	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Sullins Connector Solutions	Sullins Connector Solutions	Sullins Connector Solutions
Connector Type	Receptacle	Receptacle	Receptacle	Header	Header	Header
Number of Positions	34	34	34	34	34	34
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Cable Termination	IDC	IDC	IDC	IDC	IDC	IDC
Wire Gauge	26-28 AWG	28-30 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)	—	Flash	Flash	Flash
RoHS Status	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Affected	REACH Affected	REACH Unaffected	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

Receptacle-Type Substitutes (Direct Form Factor Match): The Amphenol ICC (FCI) parts 71600-134LF and 86130343130345E1LF maintain the receptacle connector type, providing direct mechanical and electrical compatibility with the 3M 3414-7000. Both parts are RoHS compliant and suitable for applications requiring identical connector orientation. The 71600-134LF accommodates wire gauges of 28-30 AWG, while the 86130343130345E1LF is specified for 28 AWG. Both are active production parts with substantial inventory availability.

Header-Type Substitutes (Connector Type Variation): The Sullins Connector Solutions parts SFH210-PPPC-D17-ID-BK, SFH213-PPPC-D17-ID-BK, and SFH213-PPPC-D17-ID-BK-M181 are header connectors rather than receptacles. These parts are suitable for applications where the mating interface is designed to accept header-type connectors. All three Sullins parts are ROHS3 compliant and REACH unaffected, with active production status and adequate inventory levels. The SFH213 variants include strain relief features, while the SFH210 provides a simpler configuration.

Compliance Considerations: All substitute parts maintain RoHS compliance. The 3M 3414-7000 and Sullins parts are REACH unaffected, while the Amphenol ICC (FCI) parts are REACH affected. Selection should account for regulatory requirements specific to the end application and geographic market.

Frequently Asked Questions (FAQ)

Q: Can the 3M 3414-7000 be directly replaced with a header-type connector from Sullins?

A: Header-type connectors differ in physical form factor from receptacle connectors. Direct replacement is possible only if the mating interface on the circuit board or cable assembly is designed to accept header connectors. If the existing design uses a receptacle socket, a receptacle-type substitute (71600-134LF or 86130343130345E1LF) is required.

Q: What is the significance of wire gauge differences between the main part and substitutes?

A: The 3M 3414-7000 is rated for 26-28 AWG wire, while most substitutes are rated for 28 AWG or 28-30 AWG. The IDC termination method accommodates these variations within the specified ranges. Selection should match the actual ribbon cable gauge used in the application.

Q: Are there differences in contact finish thickness between the main part and substitutes?

A: The 3M 3414-7000 specifies 30.0µin (0.76µm) contact finish thickness. The Amphenol ICC (FCI) 71600-134LF matches this specification. The Sullins parts specify flash plating, which is thinner. Both finishes provide adequate corrosion resistance and electrical performance for standard IDC applications.

Q: What packaging options are available?

A: The 3M 3414-7000 is supplied in bulk packaging. Substitute parts are available in tube (71600-134LF), bulk (86130343130345E1LF), and tray (Sullins parts) packaging. Packaging selection should align with procurement and assembly process requirements.

Q: Do the substitute parts include additional features not present in the 3M 3414-7000?

A: Yes. The Amphenol ICC (FCI) 71600-134LF includes a polarizing key and feed-through feature. The Sullins SFH213 variants include strain relief and polarizing key features. The SFH210 includes feed-through and polarizing key. These features enhance mechanical robustness but do not affect electrical compatibility in standard applications.
