3M 3385-G600 Equivalent & Substitute Parts

Part Overview

The 3M 3385-G600 is a 14-position rectangular receptacle connector with IDC (Insulation Displacement Contact) termination for 26-28 AWG ribbon cable. This connector features gold-plated contacts, a polarizing key, and feed-through capability in a dual-row 0.100" pitch configuration. The product is currently obsolete, making equivalent substitute parts necessary for ongoing system maintenance, repairs, and legacy equipment support.

Substiute Parts

3385-G600

3MIn Stock: 10973385-G600 Datasheet

Current PartRFQ

86130143130345E1LF

Amphenol ICC (FCI)In Stock: 114386130143130345E1LF Datasheet

MFR RecommendedRFQ

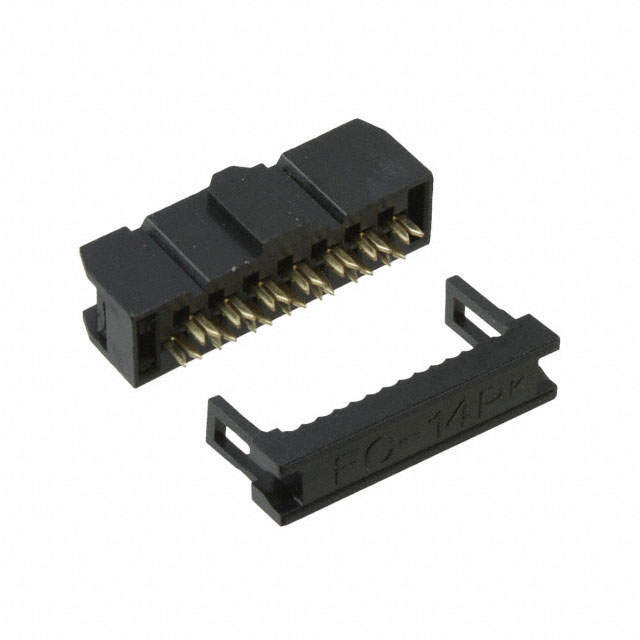

SFH210-PPPC-D07-ID-BK

Sullins Connector SolutionsIn Stock: 3358SFH210-PPPC-D07-ID-BK Datasheet

MFR RecommendedRFQ

SFH210-PPPC-D07-ID-BK-M181

Sullins Connector SolutionsIn Stock: 736SFH210-PPPC-D07-ID-BK-M181 Datasheet

MFR RecommendedRFQ

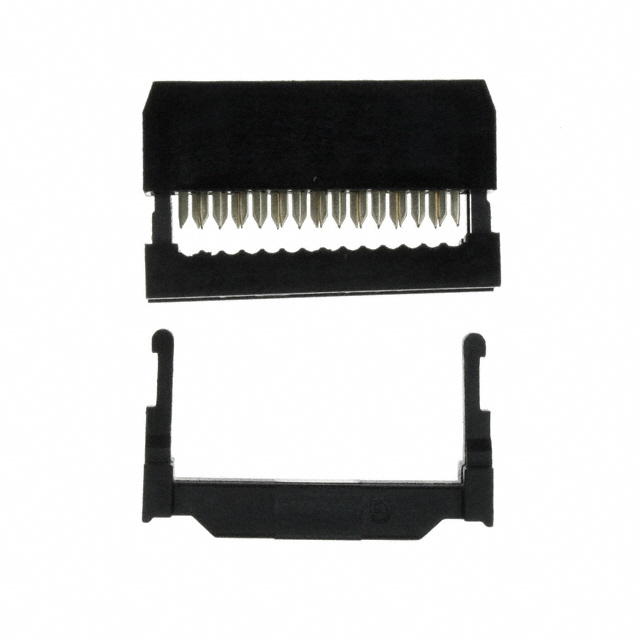

SFH213-PPPC-D07-ID-BK

Sullins Connector SolutionsIn Stock: 3488SFH213-PPPC-D07-ID-BK Datasheet

MFR RecommendedRFQ

SFH213-PPPC-D07-ID-BK-M181

Sullins Connector SolutionsIn Stock: 1804SFH213-PPPC-D07-ID-BK-M181 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 3385-G600 is determined by the following critical parameters:

• Connector Configuration: 14 positions, dual-row layout with 0.100" (2.54mm) pitch and row spacing
• Termination Method: IDC cable termination for ribbon cable compatibility
• Wire Gauge Compatibility: Support for 26-28 AWG wire (primary specification accepts both 26-28 AWG stranded or solid; substitutes support 28 AWG)
• Contact Type: Female socket contacts with gold plating
• Mounting Style: Free hanging, in-line configuration
• Electrical Compliance: RoHS compliance and EAR99 classification

The substitute parts listed below meet these core parameters. Note that the original part is a receptacle connector, while most active substitutes are header connectors. Both connector types are mechanically and electrically compatible within the same pitch and position configuration when used as mating pairs in ribbon cable assemblies.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute (Receptacle Type): Amphenol ICC 86130143130345E1LF is the direct functional equivalent, maintaining receptacle connector type identical to the original 3M 3385-G600. This part is active in production, RoHS compliant, and carries latch holder fastening with strain relief features. Selection of this part eliminates connector type conversion requirements in existing designs.

Active Alternatives (Header Type): The Sullins SFH210 and SFH213 series connectors are header-type alternatives that provide equivalent electrical and mechanical performance. These parts are actively manufactured, ROHS3 compliant, and offer superior availability. The SFH213 series includes strain relief features on both standard and M181 variants. Header connectors require mating with receptacle connectors in ribbon cable assemblies, which is standard practice in legacy equipment configurations.

Wire Gauge Consideration: All substitute parts support 28 AWG wire. The original 3M 3385-G600 accepts both 26-28 AWG stranded or solid wire. For applications using 26 AWG wire, verify cable gauge compatibility with the selected substitute before implementation.

Compliance Status: All substitute parts maintain RoHS compliance (RoHS3 for Sullins products) and EAR99 classification, ensuring regulatory alignment with the original component.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol ICC 86130143130345E1LF directly replace the 3M 3385-G600 in existing assemblies?

A: Yes. Both are receptacle connectors with identical 14-position, dual-row 0.100" pitch configuration, IDC termination, and gold contact finish. Mechanical and electrical compatibility is direct. Verify that existing mating connectors are compatible with the Amphenol ICC Quickie™ series contact geometry.

Q: Why are the Sullins SFH210 and SFH213 connectors listed as substitutes if they are header type, not receptacle type?

A: Header and receptacle connectors are complementary connector types designed to mate with each other. In ribbon cable assemblies, the 3M 3385-G600 receptacle mates with a header connector on the cable. Sullins SFH210 and SFH213 headers provide equivalent mating performance and are actively produced alternatives. This substitution is valid when the complete assembly (cable with mated connectors) is considered.

Q: What is the difference between SFH210 and SFH213 series?

A: Both series share identical electrical and mechanical specifications for this 14-position configuration. The SFH213 series includes strain relief features as standard. Both are available in standard and M181 variants. Selection between series depends on strain relief requirements in the application.

Q: Does the wire gauge difference (26-28 AWG vs. 28 AWG) affect substitution?

A: The original 3M 3385-G600 accepts 26-28 AWG wire. All substitute parts are rated for 28 AWG. If the application uses 26 AWG wire, verify that the substitute connector's IDC contact geometry accommodates 26 AWG before selection. For 28 AWG applications, substitution is direct.

Q: Are the M181 variants functionally equivalent to the standard SFH210 and SFH213 connectors?

A: Yes. The M181 designation indicates a packaging or manufacturing variant. Electrical and mechanical specifications remain identical between standard and M181 versions within each series. Selection is based on packaging requirements and inventory availability.

Q: What compliance certifications apply to these substitute parts?

A: All parts are RoHS compliant (original part: RoHS Compliant; substitutes: ROHS3 Compliant). All carry EAR99 ECCN classification and are REACH unaffected or REACH affected as specified. Compliance status supports direct substitution in regulated applications.
