TE Connectivity 3-338316-2 D-Sub Receptacle 37-Position Equivalent & Substitute Parts
Part Overview

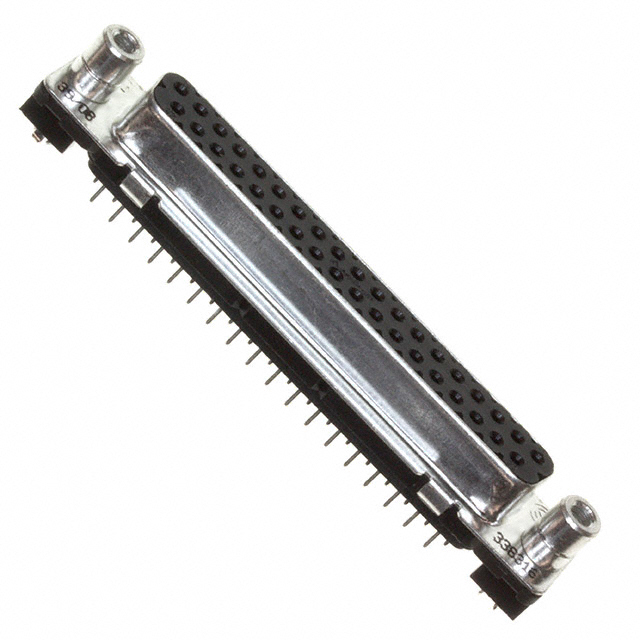

The TE Connectivity 3-338316-2 is a 37-position D-Sub receptacle connector with female sockets, designed for through-hole solder termination. This connector is part of the AMPLIMITE HDP-20 series and features a vertical orientation with mating-side female screwlock (4-40) flange. The part is classified as obsolete, necessitating identification of active equivalent and substitute components that maintain electrical and mechanical compatibility for new designs and legacy system replacements.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 4 (DC, C) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Current Rating (Amps) | 6A |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 105°C |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitution of the TE Connectivity 3-338316-2 is determined by strict adherence to the following critical parameters:
Mandatory Matching Parameters:
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 37
- Number of Rows: 2
- Shell Size, Connector Layout: 4 (DC, C)
- Mounting Type: Through Hole
- Termination: Solder
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Material Flammability Rating: UL94 V-0
- Moisture Sensitivity Level: 1 (Unlimited)
Compatible Variation Parameters:
- Shell Material Finish: Steel with tin or nickel plating
- Contact Finish: Gold plating acceptable
- Current Rating: 6A or higher
- Operating Temperature: Range must encompass -55°C to 105°C minimum
- Contact Material: Phosphor Bronze or Copper Alloy
- Dielectric Material: Polyester, Glass Filled; Polybutylene Terephthalate (PBT); or Polycyclohexylenedimethylene Terephthalate (PCT)
- RoHS Status: ROHS3 Compliant or RoHS Compliant
- Product Status: Active preferred for new designs; Obsolete acceptable for legacy replacement
Substitute parts are grouped into two categories: direct manufacturer equivalents from TE Connectivity and cross-manufacturer alternatives from HARTING and NorComp Inc. that satisfy all mandatory parameters.
Parameter Comparison
| Parameter | 3-338316-2 (Main) | 5787685-1 (TE Conn.) | 09664156503 (HARTING) | 09664516513 (HARTING) | 09664517513 (HARTING) | 09664556513 (HARTING) | 09664557513 (HARTING) |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity | TE Connectivity | HARTING | HARTING | HARTING | HARTING | HARTING |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 37 | 37 | 37 | 37 | 37 | 37 | 37 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Shell Size, Connector Layout | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel | Steel | Steel | Steel | Steel |
| Contact Finish | Gold | Gold | Gold | Not Specified | Not Specified | Gold | Gold |
| Current Rating (Amps) | 6A | 6A | 6.5A | 6.5A | 6.5A | 6.5A | 6.5A |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active |
| Parameter | 172-037-212R001 (NorComp) | 172-037-212R011 (NorComp) | 191-037-213L001 (NorComp) | 191-037-213L571 (NorComp) |
|---|---|---|---|---|
| Manufacturer | NorComp Inc. | NorComp Inc. | NorComp Inc. | NorComp Inc. |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 37 | 37 | 37 | 37 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Shell Size, Connector Layout | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Termination | Solder | Solder | Solder | Solder |
| Flange Feature | Housing/Shell (Unthreaded) | Board Side (4-40) | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Nickel Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold | Gold | Gold |
| Current Rating (Amps) | 5A | 5A | 5A | 5A |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Operating Temperature | -50°C ~ 100°C | -50°C ~ 100°C | -55°C ~ 125°C | -55°C ~ 125°C |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Product Status | Obsolete | Obsolete | Active | Active |
Engineering Selection Recommendations
Primary Recommendation: TE Connectivity 5787685-1
The TE Connectivity 5787685-1 is the direct manufacturer equivalent to the 3-338316-2. This part maintains identical electrical and mechanical specifications while offering active product status. The 5787685-1 is from the AMPLIMITE HD-20 series and provides full compatibility with existing designs. This connector is available in tube packaging with 1189 units in stock and carries RoHS compliance certification with REACH affected status.
Secondary Recommendations: HARTING 37-Position D-Sub Receptacles
The HARTING series (09664156503, 09664516513, 09664517513, 09664556513, 09664557513) provides cross-manufacturer alternatives that satisfy all mandatory electrical and mechanical parameters. These connectors feature:
- Identical 37-position, 2-row configuration with shell size 4 (DC, C)
- Through-hole solder termination with mating-side female screwlock (4-40) flange
- Current ratings of 6.5A, exceeding the 6A requirement
- Extended operating temperature range to -55°C ~ 125°C
- ROHS3 compliance with REACH unaffected status
- Active product status with inventory availability ranging from 989 to 1128 units
Tertiary Recommendations: NorComp 37-Position D-Sub Receptacles
NorComp parts 191-037-213L001 and 191-037-213L571 are active alternatives with panel mount capability. These connectors feature:
- Identical 37-position, 2-row configuration with shell size 4 (DC, C)
- Solder termination with extended operating temperature to -55°C ~ 125°C
- ROHS3 compliance with REACH unaffected status
- Active product status with inventory availability of 1105 and 872 units respectively
NorComp parts 172-037-212R001 and 172-037-212R011 are obsolete alternatives and are not recommended for new designs.
Compliance Considerations:
All recommended substitute parts maintain UL94 V-0 flammability rating and MSL 1 (Unlimited) moisture sensitivity level. The TE Connectivity 5787685-1 carries REACH affected status, while HARTING and NorComp alternatives carry REACH unaffected status. Selection should account for supply chain compliance requirements specific to the application region.
Frequently Asked Questions (FAQ)
Q: Can the TE Connectivity 5787685-1 directly replace the 3-338316-2 in existing designs?
A: Yes. The 5787685-1 maintains identical electrical and mechanical specifications including connector type, position count, shell size, flange configuration, and termination method. The primary difference is product status: the 3-338316-2 is obsolete while the 5787685-1 is active. Both connectors are from TE Connectivity's AMPLIMITE series and are fully compatible.
Q: What are the key differences between TE Connectivity and HARTING 37-position D-Sub receptacles?
A: Both manufacturers provide connectors that satisfy all mandatory parameters for substitution. HARTING parts offer higher current ratings (6.5A versus 6A) and extended operating temperature range (-55°C ~ 125°C versus -55°C ~ 105°C). HARTING parts carry REACH unaffected status, while TE Connectivity parts carry REACH affected status. Contact material differs: TE Connectivity uses Phosphor Bronze while HARTING uses Copper Alloy. Dielectric materials vary between manufacturers but all meet UL94 V-0 flammability requirements.
Q: Are NorComp 37-position D-Sub receptacles suitable substitutes?
A: NorComp parts 191-037-213L001 and 191-037-213L571 are active alternatives that satisfy all mandatory parameters. However, these connectors feature panel mount capability in addition to through-hole mounting, which may introduce dimensional differences. NorComp parts 172-037-212R001 and 172-037-212R011 are obsolete and should not be selected for new designs. Current ratings for NorComp parts are 5A, which is lower than the 6A requirement of the main part.
Q: What is the significance of the flange feature designation?
A: The flange feature "Mating Side, Female Screwlock (4-40)" specifies the mechanical interface for connector mating. This designation indicates that the screwlock mechanism is located on the mating side of the connector and uses 4-40 threaded fasteners. All recommended substitute parts maintain this identical flange configuration, ensuring mechanical compatibility with existing mating connectors and cable assemblies.
Q: How do packaging options affect part selection?
A: Packaging options (tube, tray, bulk) do not affect electrical or mechanical compatibility. The TE Connectivity 5787685-1 is supplied in tube packaging, while HARTING parts are available in tray or bulk packaging. NorComp parts are supplied in tray packaging. Packaging selection should be based on procurement volume requirements and inventory management practices rather than technical compatibility.
Q: What compliance certifications should be verified for critical applications?
A: All recommended substitute parts carry UL94 V-0 flammability certification and MSL 1 (Unlimited) moisture sensitivity level. RoHS compliance is maintained across all alternatives. REACH status differs: TE Connectivity parts carry REACH affected status while HARTING and NorComp parts carry REACH unaffected status. Applications subject to regional compliance requirements should verify REACH status against specific regulatory obligations.
Q: Can parts with different dielectric materials be substituted?
A: Yes. The main part 3-338316-2 specifies Polyester, Glass Filled dielectric material. Substitute parts utilize Polybutylene Terephthalate (PBT), Polycyclohexylenedimethylene Terephthalate (PCT), or Polyester materials. All dielectric materials meet UL94 V-0 flammability requirements and maintain electrical performance within the specified operating temperature range. Material selection does not affect connector compatibility.
Q: What is the impact of operating temperature range differences?
A: The main part 3-338316-2 operates from -55°C to 105°C. HARTING and NorComp 191-series parts extend this range to -55°C to 125°C, providing additional thermal margin. NorComp 172-series parts operate from -50°C to 100°C, which does not fully encompass the lower temperature limit of the main part. For applications requiring operation at -55°C, NorComp 172-series parts are not suitable.
Q: Are there any restrictions on mixing substitute parts in the same assembly?
A: All recommended substitute parts maintain identical connector style, position count, shell size, and flange configuration. Mixing different manufacturers' parts in the same assembly is permissible from an electrical and mechanical standpoint. However, procurement and quality assurance practices should account for potential variations in contact material, dielectric composition, and manufacturing tolerances between manufacturers.
