TE Connectivity AMP Connectors 324988 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 324988 is a terminal butt splice connector designed for inline, individual openings crimp termination applications. This component is classified as obsolete, necessitating identification of active equivalent parts for continued system support and procurement. The 324988 operates within the Certi-Seal series and accommodates 18-22 AWG wire gauges with fully insulated construction and serrated mating area features.

Substiute Parts

324988

TE Connectivity AMP ConnectorsIn Stock: 1065324988 Datasheet

Current PartRFQ

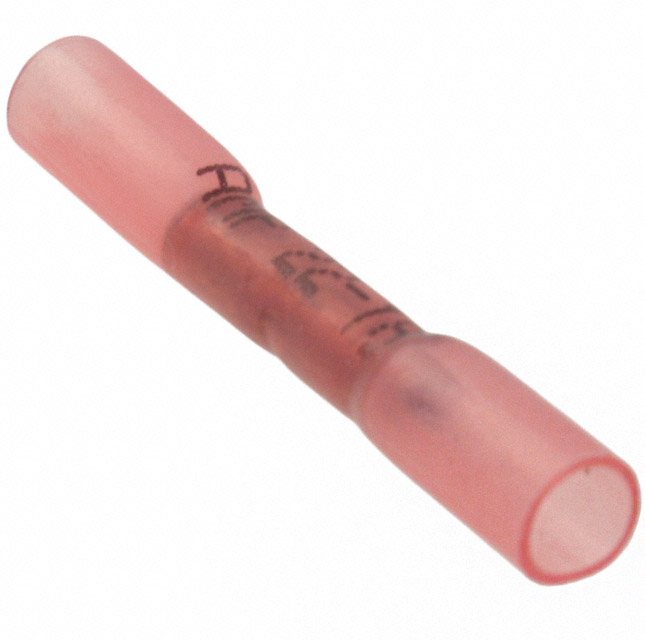

8-55824-2

TE Connectivity AMP ConnectorsIn Stock: 16248-55824-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 324988 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Terminal Type: Butt Splice, Inline, Individual Openings
• Number of Wire Entries: 2
• Termination Method: Crimp
• Wire Gauge: 18-22 AWG
• Insulation Classification: Fully Insulated
• Moisture Sensitivity Level: 1 (Unlimited)
• Manufacturer: TE Connectivity AMP Connectors

The substitute part 8-55824-2 satisfies all mandatory parameters. Variations in color (Natural versus Red) and insulation construction (standard fully insulated versus fully insulated heat shrink) do not affect functional equivalence for splice termination applications. The substitute part maintains active product status with ROHS3 compliance certification.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 8-55824-2 serves as the direct active substitute for the obsolete 324988 part number. Selection of the 8-55824-2 is supported by the following engineering factors:

Product Status Transition: The 324988 is classified as obsolete, while the 8-55824-2 maintains active product status, ensuring continued availability and manufacturing support.

Compliance Enhancement: The 8-55824-2 carries ROHS3 compliance certification, providing regulatory alignment for applications subject to restriction of hazardous substances requirements. The original 324988 lists RoHS status as not applicable.

Functional Equivalence: Both parts maintain identical specifications across all critical electrical and mechanical parameters: terminal type, wire entry configuration, termination method, wire gauge range, and moisture sensitivity classification.

Insulation Construction: The 8-55824-2 incorporates fully insulated heat shrink construction, which provides enhanced environmental protection compared to the standard fully insulated design of the 324988.

Packaging and Inventory: The 8-55824-2 is available in bulk packaging with 1604 pieces in current stock, supporting production requirements and supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the 8-55824-2 directly replace the 324988 in existing applications?

A: Yes. Both parts share identical terminal type, wire entry configuration, termination method, wire gauge specification, and moisture sensitivity classification. The 8-55824-2 is functionally equivalent for all butt splice crimp termination applications rated for 18-22 AWG wire.

Q: What is the difference between the Natural color of the 324988 and the Red color of the 8-55824-2?

A: Color designation serves identification and circuit tracing purposes and does not affect electrical or mechanical performance. Selection between Natural and Red variants depends on application-specific color coding requirements.

Q: Does the heat shrink insulation on the 8-55824-2 affect compatibility with the 324988 application?

A: No. The fully insulated heat shrink construction of the 8-55824-2 provides equivalent insulation performance with enhanced environmental protection. This represents a functional improvement over the standard fully insulated design.

Q: Why is the 324988 listed as obsolete?

A: Obsolete status indicates the part is no longer in active production. The 8-55824-2 has replaced this part in the TE Connectivity AMP Connectors product line.

Q: Are there any compliance differences between the two parts?

A: The 8-55824-2 carries ROHS3 compliance certification, while the 324988 lists RoHS status as not applicable. For applications requiring RoHS compliance, the 8-55824-2 is the appropriate selection.

Q: What packaging options are available for the 8-55824-2?

A: The 8-55824-2 is supplied in bulk packaging. The 324988 packaging specification was not provided in the available data.

Q: Are both parts rated for the same wire gauge range?

A: Yes. Both the 324988 and 8-55824-2 are rated for 18-22 AWG wire termination.

Q: What is the moisture sensitivity level for both parts?

A: Both parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
