Phoenix Contact 3244067 Terminal Block - Equivalent & Substitute Parts

Part Overview

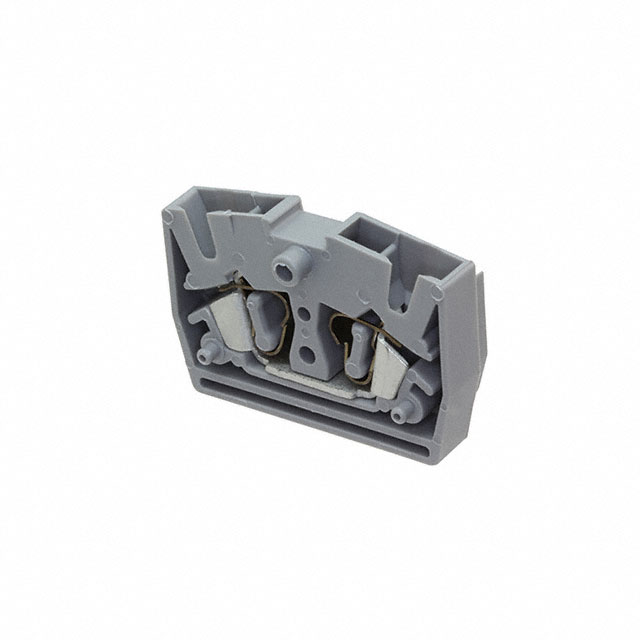

The Phoenix Contact 3244067 is a 2-position terminal block from the CLIPLINE ST series, designed for direct mount applications with push-in spring termination. This component is classified as Last Time Buy, indicating discontinued production status. The part operates at 24 A (IEC) / 20 A (UL) and 800 V (IEC) / 600 V (UL), accommodating wire gauges from 12-28 AWG (0.08-4 mm²). Identification of equivalent substitute parts is necessary due to the Last Time Buy status and to ensure continued availability for new designs and maintenance applications.

Key Parameters

Parameter	Value
Manufacturer Part Number	3244067
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Series	CLIPLINE ST
Type	Middle
Number of Positions	2
Number of Levels	1
Terminal Width	5.2 mm
Termination Style	Push In, Spring
Current Rating (IEC)	24 A
Voltage Rating (IEC)	800 V
Current Rating (UL)	20 A
Voltage Rating (UL)	600 V
Wire Gauge Range (AWG)	12-28 AWG
Wire Gauge Range (mm²)	0.08-4 mm²
Housing Color	Gray
Material - Insulation	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Product Status	Last Time Buy

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 3244067 is determined by the following critical parameters:

Mandatory Matching Criteria:

Number of Positions: 2
Number of Levels: 1
Terminal Width: 5.2 mm
Termination Style: Push In, Spring
Mounting Type: Direct Mount
Housing Color: Gray
Material - Insulation: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0

Electrical Performance Criteria:

Current Rating (IEC): minimum 24 A
Voltage Rating (IEC): minimum 800 V
Current Rating (UL): minimum 20 A
Voltage Rating (UL): minimum 600 V

Wire Compatibility Criteria:

Wire Gauge Range must accommodate the original specification of 12-28 AWG (0.08-4 mm²)

The Phoenix Contact 3244067 has one identified substitute part: 3249005 from the CLIPLINE MPT series. This part maintains all mandatory matching criteria and electrical performance specifications while offering Active product status and improved availability.

Parameter Comparison

Parameter	3244067 (Original)	3249005 (Substitute)	Compatibility
Manufacturer	Phoenix Contact	Phoenix Contact	Match
Category	Terminal Blocks	Terminal Blocks	Match
Type	Middle	Middle	Match
Mounting Type	Direct Mount	Direct Mount	Match
Number of Positions	2	2	Match
Number of Levels	1	1	Match
Terminal Width	5.2 mm	5.2 mm	Match
Termination Style	Push In, Spring	Push In, Spring	Match
Current Rating (IEC)	24 A	24 A	Match
Voltage Rating (IEC)	800 V	800 V	Match
Current Rating (UL)	20 A	20 A	Match
Voltage Rating (UL)	600 V	800 V	Substitute exceeds specification
Wire Gauge Range (AWG)	12-28 AWG	12-26 AWG	Substitute covers 12-26 AWG; 28 AWG not supported
Wire Gauge Range (mm²)	0.08-4 mm²	0.14-4 mm²	Substitute covers 0.14-4 mm²; 0.08 mm² not supported
Housing Color	Gray	Gray	Match
Material - Insulation	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Match
Flammability Rating	UL94 V-0	UL94 V-0	Match
Stripping Length	8 mm	8-10 mm	Substitute provides flexible range
Product Status	Last Time Buy	Active	Substitute is in active production

Engineering Selection Recommendations

The Phoenix Contact 3249005 is a direct substitute for the 3244067 in applications where wire gauges remain within the 12-26 AWG range (0.14-4 mm²). The 3249005 offers the following advantages:

Product Status: The 3249005 maintains Active product status, ensuring long-term availability and continued manufacturing support, whereas the 3244067 is Last Time Buy.

Electrical Performance: The 3249005 meets or exceeds all electrical specifications of the original part, with UL voltage rating increased to 800 V compared to the original 600 V.

Compliance: Both parts maintain identical RoHS3 compliance and UL94 V-0 flammability ratings, ensuring regulatory equivalence.

Wire Gauge Limitation: Applications requiring termination of 28 AWG conductors or wire cross-sections below 0.14 mm² cannot use the 3249005 as a direct substitute. In such cases, alternative terminal block solutions must be evaluated.

Physical Dimensions: The 3249005 has different physical dimensions (length 27.21 mm vs. 32.00 mm; height 36.00 mm vs. 22.00 mm). PCB layout and mechanical clearance must be verified before substitution.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 3249005 replace the 3244067 in all applications?

A: The 3249005 is a functional substitute for most applications. However, if your design uses 28 AWG wire or conductors smaller than 0.14 mm², the 3249005 cannot be used. Additionally, the different physical dimensions require verification of PCB layout compatibility.

Q: What is the wire gauge limitation of the 3249005?

A: The 3249005 supports wire gauges from 12-26 AWG (0.14-4 mm²). The original 3244067 supports 12-28 AWG (0.08-4 mm²). If 28 AWG or 0.08 mm² conductors are required, the original part or an alternative solution must be used.

Q: Are the electrical ratings of the 3249005 compatible with the 3244067?

A: Yes. The 3249005 meets all electrical specifications of the 3244067 and exceeds the UL voltage rating (800 V vs. 600 V). Both parts are rated for 24 A (IEC) and 20 A (UL).

Q: Why are the physical dimensions different between these parts?

A: The 3244067 and 3249005 belong to different series within the Phoenix Contact CLIPLINE family (ST vs. MPT). Different series have different mechanical designs. Verify that the 3249005 dimensions fit your PCB layout before substitution.

Q: Are both parts RoHS and UL compliant?

A: Yes. Both the 3244067 and 3249005 are ROHS3 compliant and carry the UL94 V-0 flammability rating.

Q: What is the stripping length requirement for the 3249005?

A: The 3249005 requires a stripping length of 8-10 mm, compared to the fixed 8 mm requirement of the 3244067. Ensure wire preparation procedures accommodate this range.
