3240-10P-C Equivalent & Substitute Parts

Part Overview

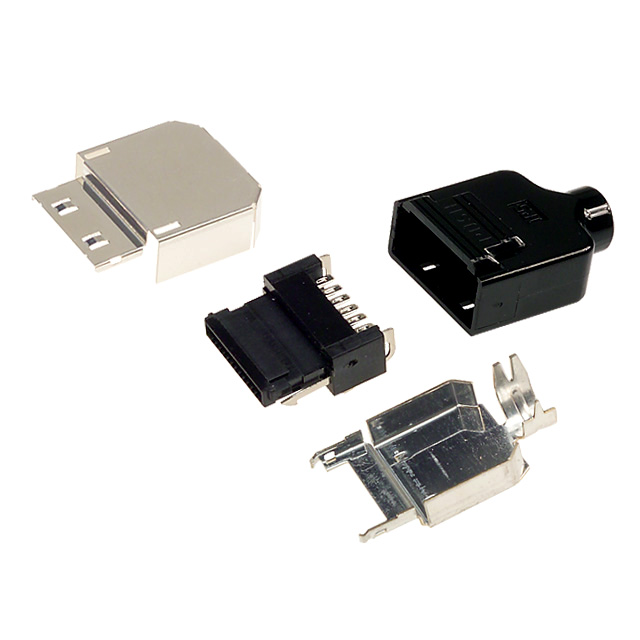

The 3240-10P-C is a 10-position rectangular plug connector manufactured by Hirose Electric Co Ltd, designed for solder termination with gold-plated contacts. This connector belongs to the 3200 series and features an outer shroud contact design with a 0.031" (0.80mm) pitch in a single-row configuration.

The 3240-10P-C is classified as obsolete. Identifying equivalent and substitute parts is necessary to ensure continued availability for maintenance, repair, and new production applications where this connector specification is required.

Substiute Parts

3240-10P-C

Hirose Electric Co LtdIn Stock: 7633240-10P-C Datasheet

Current PartRFQ

3240-10P-C(50)

Hirose Electric Co LtdIn Stock: 10453240-10P-C(50) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3240-10P-C is determined by strict equivalence across the following critical parameters:

• Connector type (Plug)
• Number of positions (10)
• Pitch specification (0.031" / 0.80mm)
• Number of rows (1)
• Contact type (Outer Shroud Contact)
• Cable termination method (Solder)
• Contact finish (Gold)
• Color (Black)
• Series compatibility (3200 series)

The substitute part 3240-10P-C(50) maintains identical electrical and mechanical specifications to the main part. The primary distinction is packaging format and product status, with the substitute available in tray packaging and classified as active rather than obsolete.

Parameter Comparison

Engineering Selection Recommendations

The 3240-10P-C(50) serves as the direct substitute for the obsolete 3240-10P-C. Both parts maintain identical electrical and mechanical specifications across all critical connector parameters.

Selection between these parts should be based on the following factors:

The 3240-10P-C remains available with 694 pieces in stock and is suitable for applications where RoHS non-compliance is acceptable or where legacy system compatibility is required.

The 3240-10P-C(50) is the recommended selection for new designs and applications requiring ROHS3 compliance. This part is classified as active, ensuring long-term availability, and is supplied in tray packaging. Current inventory includes 969 pieces.

Both parts carry identical REACH and ECCN classifications (REACH Unaffected, EAR99), indicating equivalent regulatory status for export and environmental compliance purposes.

Frequently Asked Questions (FAQ)

Q: Are the 3240-10P-C and 3240-10P-C(50) electrically and mechanically interchangeable?

A: Yes. Both parts are identical in connector type, position count, pitch, contact configuration, termination method, and contact finish. They are direct functional equivalents.

Q: What is the significance of the "(50)" designation in the part number?

A: The "(50)" designation indicates the packaging format. The 3240-10P-C(50) is supplied in tray packaging, whereas the original 3240-10P-C does not specify a packaging type in the provided data.

Q: Why is the 3240-10P-C classified as obsolete?

A: The 3240-10P-C has reached end-of-life status with the manufacturer. The 3240-10P-C(50) is the active production equivalent and is the recommended choice for new applications.

Q: Does RoHS compliance affect connector performance or compatibility?

A: RoHS compliance relates to material composition and environmental standards, not electrical or mechanical performance. The 3240-10P-C(50) achieves ROHS3 compliance while maintaining identical functional specifications to the non-compliant 3240-10P-C.

Q: Can I use the 3240-10P-C(50) as a direct replacement in existing assemblies designed for the 3240-10P-C?

A: Yes. The parts are functionally equivalent across all electrical and mechanical parameters. Compatibility is determined by connector specifications, which are identical between both parts.

Q: Are there any differences in contact finish or durability between these parts?

A: Both parts feature gold-plated contacts with identical specifications. No differences in contact finish or durability are indicated in the provided technical data.
