Switchcraft 324 XLR to RCA Adapter - Equivalent & Substitute Parts

Part Overview

The Switchcraft 324 is a male XLR to RCA jack adapter connector designed for audio signal conversion applications. This adapter features insulated, shielded construction with 3-position XLR male pins converting to a phono (RCA) jack interface. The 324 is currently listed as obsolete product status with 1117 units available in new original stock. Due to its obsolete classification, identifying active equivalent parts is essential for ongoing procurement and system maintenance.

Substiute Parts

324

Switchcraft Inc.In Stock: 1189324 Datasheet

Current PartRFQ

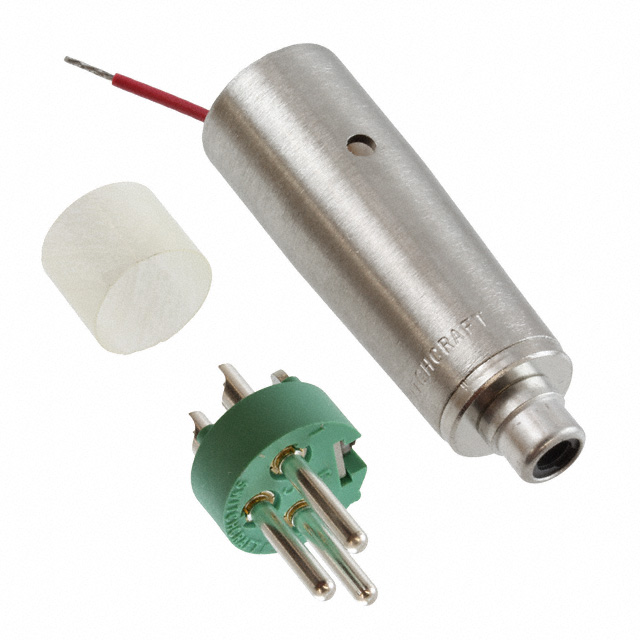

324X

Switchcraft Inc.In Stock: 1130324X Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Switchcraft 324 is determined by the following critical parameters:

• Connector Interface: XLR male pins (3 positions) to RCA jack conversion capability
• Electrical Characteristics: Insulated, shielded construction for signal integrity
• Manufacturer Consistency: Switchcraft Inc. product line
• Series Alignment: Q-G® series designation
• Regulatory Compliance: ECCN and HTSUS classification alignment

The Switchcraft 324X qualifies as a direct substitute based on identical connector specifications, matching electrical properties, and equivalent regulatory classification. The primary distinction is product status transition from obsolete to active, with updated RoHS compliance.

Parameter Comparison

Engineering Selection Recommendations

The Switchcraft 324X is the direct functional equivalent for the obsolete Switchcraft 324. Both parts maintain identical connector specifications and electrical properties required for XLR male to RCA jack conversion applications.

The 324X offers the advantage of active product status, ensuring continued availability and supply chain reliability. Additionally, the 324X achieves ROHS3 compliance, meeting current environmental and regulatory requirements for new equipment designs and procurement cycles.

Selection between the 324 and 324X should be based on regulatory compliance requirements for the end application. Systems requiring RoHS3 compliance must specify the 324X. Legacy systems or applications without RoHS compliance mandates may utilize remaining 324 inventory.

Frequently Asked Questions (FAQ)

Q: Are the Switchcraft 324 and 324X mechanically interchangeable?

A: Yes. Both parts feature identical XLR male pin configurations (3 positions) and RCA jack interfaces. Mechanical fit and connector alignment are equivalent.

Q: What is the primary difference between these two parts?

A: The 324X is the active production equivalent with ROHS3 compliance, while the 324 is obsolete and RoHS non-compliant. Functional performance for audio signal conversion is identical.

Q: Can the 324X be used as a direct replacement in existing installations using the 324?

A: Yes. The 324X provides identical electrical and mechanical functionality. No circuit modifications or interface changes are required.

Q: Does packaging differ between the 324 and 324X?

A: The 324X is supplied in bulk packaging, while the 324 packaging specification is not defined. Verify packaging requirements for your procurement process.

Q: Are there regulatory considerations when switching from 324 to 324X?

A: The 324X meets ROHS3 compliance standards, making it suitable for applications requiring environmental regulation adherence. The 324 does not meet these standards. Confirm compliance requirements for your specific application.

Q: What is the inventory status for these parts?

A: The 324 has 1117 units in new original stock (obsolete status). The 324X has 1113 units in new original stock (active status). Availability may change; verify current inventory for procurement planning.
