CNC Tech 3230-12-0102-00 Equivalent & Substitute Parts

Part Overview

The CNC Tech 3230-12-0102-00 is a 12-position rectangular socket connector with IDC (Insulation Displacement Contact) termination and gold plating. This connector features a 0.050" (1.27mm) pitch in a 2-row configuration with feed-through and polarizing key capabilities, designed for ribbon cable applications.

The 3230-12-0102-00 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this connector type.

Key Parameters

Parameter	Value
Connector Type	Socket
Number of Positions	12
Pitch	0.050" (1.27mm)
Number of Rows	2
Row Spacing	0.050" (1.27mm)
Cable Termination	IDC
Wire Type	Ribbon Cable
Contact Finish	Gold
Mounting Type	Free Hanging (In-Line)
Features	Feed Through, Polarizing Key
RoHS Status	ROHS3 Compliant
MSL Rating	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 3230-12-0102-00 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

12-position configuration with 0.050" (1.27mm) pitch
2-row arrangement with 0.050" (1.27mm) row spacing
IDC ribbon cable termination method
Gold contact finish
Free hanging in-line mounting
Feed-through capability

The substitute parts identified—Amphenol ICC (FCI) 20021444-00012T4LF and Samtec Inc. FFSD-06-01-N—meet all critical electrical and mechanical parameters. Both are active products with current manufacturing status, ensuring long-term availability and supply chain reliability compared to the obsolete main part.

Parameter Comparison

Parameter	CNC Tech 3230-12-0102-00	Amphenol ICC 20021444-00012T4LF	Samtec FFSD-06-01-N
Connector Type	Socket	Receptacle	Receptacle
Number of Positions	12	12	12
Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Number of Rows	2	2	2
Row Spacing	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Cable Termination	IDC	IDC	IDC
Wire Type	Ribbon Cable	Ribbon Cable	Ribbon Cable
Wire Gauge	Not specified	30 AWG	30 AWG
Contact Finish	Gold (Flash)	Gold (10.0µin / 0.25µm)	Gold (10.0µin / 0.25µm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Features	Feed Through, Polarizing Key	Feed Through	Feed Through, Polarizing Key
Product Status	Obsolete	Active	Active
RoHS Status	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

Both substitute parts are active products with current manufacturing support, providing superior supply chain continuity compared to the obsolete 3230-12-0102-00.

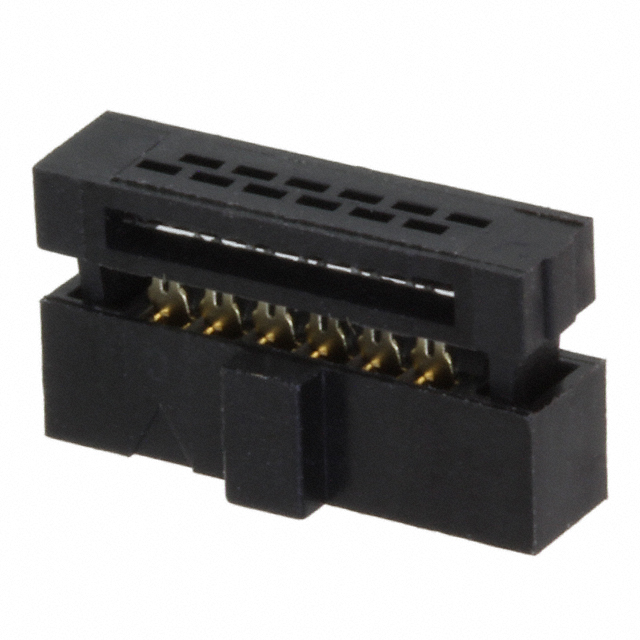

The Samtec FFSD-06-01-N offers the closest functional alignment, retaining the polarizing key feature present in the original part and maintaining ROHS3 compliance. This part is available in high inventory (7279 pcs) and is REACH unaffected.

The Amphenol ICC 20021444-00012T4LF (Minitek127® series) provides an alternative with active product status and substantial inventory availability (1767 pcs). This part is RoHS compliant and REACH affected. The absence of a polarizing key feature should be evaluated against specific application requirements.

Both parts support 30 AWG ribbon cable and maintain gold contact finish specifications suitable for the electrical requirements of the original design.

Frequently Asked Questions (FAQ)

Q: Can the Samtec FFSD-06-01-N directly replace the CNC Tech 3230-12-0102-00?

A: The Samtec FFSD-06-01-N meets all critical electrical and mechanical parameters: 12-position IDC configuration, 0.050" pitch, 2-row arrangement, gold contact finish, and free-hanging in-line mounting. The retention of the polarizing key feature provides additional design compatibility. Physical form factor and mating interface alignment should be confirmed for your specific application.

Q: What is the difference between the two substitute parts?

A: Both parts share identical electrical specifications (12-position, 0.050" pitch, IDC termination, gold finish). The primary difference is the polarizing key feature: the Samtec FFSD-06-01-N includes it, while the Amphenol ICC 20021444-00012T4LF does not. Compliance profiles differ slightly (Samtec is ROHS3/REACH unaffected; Amphenol is RoHS/REACH affected).

Q: Are there wire gauge considerations for substitution?

A: The original part does not specify wire gauge. Both substitute parts are rated for 30 AWG ribbon cable. Confirm that your existing ribbon cable gauge is compatible with 30 AWG specifications.

Q: What is the significance of contact finish thickness differences?

A: The original part specifies flash gold plating. Both substitute parts provide 10.0µin (0.25µm) gold plating, which exceeds flash thickness and provides enhanced durability and contact reliability for IDC termination applications.

Q: Are both substitute parts RoHS compliant?

A: Yes. The Samtec FFSD-06-01-N is ROHS3 compliant, matching the original part's certification. The Amphenol ICC 20021444-00012T4LF is RoHS compliant. Both meet regulatory requirements for restricted substance control.
