TE Connectivity AMP Connectors 322153 Ring Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 322153 is an insulated ring terminal connector designed for 6 AWG wire gauge applications with a #10 stud circular configuration. This component features crimp termination and is part of the Ampli-Bond series. The 322153 is classified as obsolete, making identification of active equivalent parts essential for ongoing procurement and system maintenance. Substitute parts must maintain electrical and mechanical compatibility while meeting current compliance requirements.

Substiute Parts

322153

TE Connectivity AMP ConnectorsIn Stock: 1093322153 Datasheet

Current PartRFQ

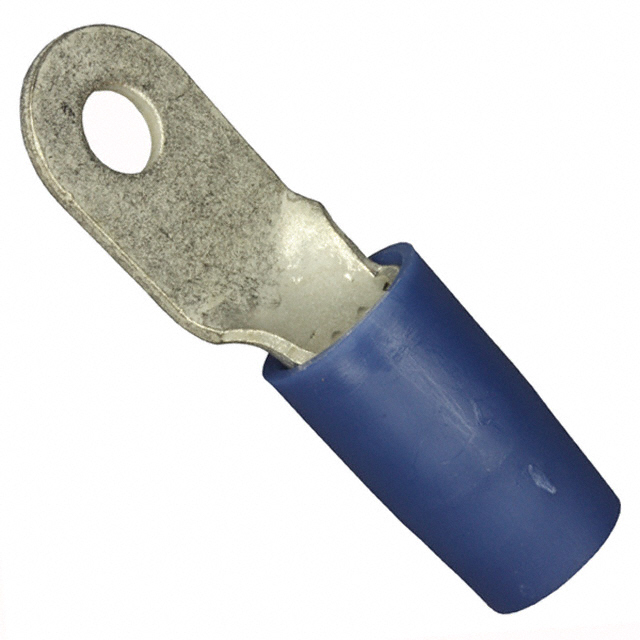

324046

TE Connectivity AMP ConnectorsIn Stock: 1441324046 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 322153 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters: Wire gauge (6 AWG), stud size (#10 circular), contact material (copper), contact finish (tin), and termination method (crimp) must remain identical to ensure proper electrical connection and current-carrying capacity.

Mechanical Compatibility Parameters: Terminal type (circular), mounting configuration (free hanging in-line), and serrated termination feature must match to ensure physical compatibility with mating components and assembly procedures.

Functional Parameters: Insulation requirement (insulated) and color designation (blue) must be maintained for circuit identification and safety compliance.

The substitute part 324046 meets all these critical parameters while offering improved product status and compliance posture.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement Applications:

The TE Connectivity 324046 serves as the active equivalent for the obsolete 322153. Both components share identical electrical and mechanical specifications across all critical parameters including wire gauge, stud size, terminal type, contact material, and termination method. The 324046 maintains full functional compatibility while offering the advantage of active product status and ROHS3 compliance certification.

Compliance Considerations:

The 322153 carries RoHS non-compliant status, whereas the 324046 is ROHS3 compliant. For applications subject to RoHS directives or customer compliance requirements, the 324046 is the appropriate selection. Both parts maintain identical MSL ratings and export classification codes.

Inventory and Availability:

The 324046 is available in bulk packaging with 1419 pieces in stock, compared to the 322153 with 1045 pieces. The active product status of the 324046 ensures continued availability for future procurement cycles.

Frequently Asked Questions (FAQ)

Q: Can the 324046 directly replace the 322153 in existing assemblies?

A: Yes. The 324046 maintains identical electrical and mechanical specifications across all critical parameters: 6 AWG wire gauge, #10 stud circular configuration, copper tin-plated contacts, crimp termination, and serrated termination feature. Physical dimensions for thickness and outer edge width are identical.

Q: What are the differences between the 322153 and 324046?

A: The primary differences are product status and compliance certification. The 322153 is obsolete and RoHS non-compliant, while the 324046 is active and ROHS3 compliant. The 324046 uses polyamide nylon insulation material compared to the vinyl insulation of the 322153. Minor dimensional variation exists in overall length (1.575" versus 1.727") and insulation diameter (0.314" versus 0.377"), but these do not affect functional compatibility.

Q: Are there packaging differences between these parts?

A: The 322153 packaging specification is not defined in available data. The 324046 is supplied in bulk packaging. Confirm packaging requirements with procurement specifications before ordering.

Q: Does the insulation material change affect performance?

A: Both insulation materials (vinyl and polyamide nylon) are suitable for the 6 AWG wire gauge application. The polyamide nylon insulation in the 324046 provides equivalent electrical and mechanical performance for this terminal connector application.

Q: What is the significance of the serrated termination feature?

A: The serrated termination feature is present on both the 322153 and 324046. This feature provides mechanical grip and improved contact retention during the crimp process, ensuring consistent electrical connection quality.

Q: Are both parts suitable for the same environmental conditions?

A: Both parts carry identical MSL ratings of 1 (Unlimited), indicating equivalent moisture sensitivity performance. Both are classified under the same ECCN and HTSUS codes, confirming equivalent regulatory treatment.
