TE Connectivity AMP Connectors 322090 Ring Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 322090 is a ring terminal connector designed for 2/0 AWG wire with a 3/8 inch stud connection. This circular terminal features crimp termination and insulated construction with serrated termination characteristics. The part is classified as obsolete, necessitating identification of active equivalent components for continued procurement and system maintenance. Substitute parts must maintain electrical and mechanical compatibility with the original specification while offering current product availability.

Substiute Parts

322090

TE Connectivity AMP ConnectorsIn Stock: 1053322090 Datasheet

Current PartRFQ

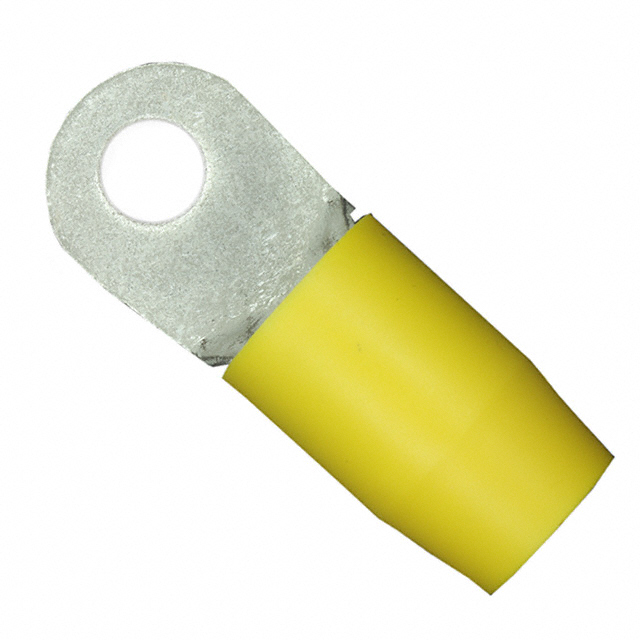

324084

TE Connectivity AMP ConnectorsIn Stock: 1153324084 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 322090 is based on strict equivalence of electrical and mechanical parameters. The substitute part 324084 maintains compatibility through the following critical parameters:

Wire gauge specification of 2/0 AWG ensures proper current-carrying capacity and conductor accommodation. The 3/8 inch stud size provides mechanical compatibility with existing mounting infrastructure. Circular terminal geometry and crimp termination method remain unchanged. Copper contact material with tin finish preserves electrical conductivity and corrosion resistance characteristics. Insulated construction with serrated termination features is retained. Free hanging in-line mounting type supports identical installation configurations.

Variations in insulation material (vinyl to polyamide/nylon), insulation diameter, overall length, and series designation do not affect functional substitution when all primary electrical and mechanical parameters align.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 324084 serves as the direct active substitute for the obsolete 322090 ring terminal connector. Both components share identical electrical and mechanical specifications for wire gauge, stud size, terminal geometry, and termination method.

The 324084 offers the advantage of active product status, ensuring continued availability and supply chain reliability. The component achieves ROHS3 compliance, meeting current regulatory requirements for restricted substances. The polyamide nylon insulation material in the 324084 provides enhanced durability and temperature resistance compared to the vinyl insulation of the 322090.

Selection of the 324084 is appropriate for new designs and replacement applications requiring compliance with current environmental and regulatory standards while maintaining full functional compatibility with systems originally specified for the 322090.

Frequently Asked Questions (FAQ)

Q: Can the 324084 directly replace the 322090 in existing assemblies?

A: Yes. The 324084 maintains identical wire gauge (2/0 AWG), stud size (3/8 inch), terminal type (circular), and termination method (crimp). All critical electrical and mechanical parameters align, supporting direct substitution in existing applications.

Q: What is the significance of the insulation material change from vinyl to polyamide?

A: The polyamide nylon insulation in the 324084 provides improved mechanical durability and temperature performance compared to vinyl. This material change does not affect electrical compatibility or functional performance in standard applications.

Q: Why is the 322090 listed as obsolete?

A: The 322090 has been superseded by the 324084 in the TE Connectivity product line. The 324084 offers equivalent functionality with active product status and improved regulatory compliance.

Q: Does the RoHS3 compliance of the 324084 affect compatibility?

A: RoHS3 compliance indicates adherence to current environmental regulations regarding restricted substances. This compliance status does not impact electrical or mechanical compatibility. The 324084 is suitable for applications requiring compliant components.

Q: Are there dimensional differences between the two parts?

A: Minor dimensional variations exist in overall length (322090: 2.540 inches versus 324084: 2.416 inches) and insulation diameter (322090: 0.684 inches versus 324084: 0.610 inches). These variations do not affect functional compatibility or mounting in standard applications.

Q: What packaging options are available for the 324084?

A: The 324084 is supplied in bulk packaging, differing from the 322090 packaging specification. Bulk packaging accommodates high-volume procurement requirements.
