TE Connectivity AMP Connectors 322085 Ring Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 322085 is a ring terminal connector designed for 1/0 AWG wire with a 1/4 inch stud connection. This insulated circular terminal features crimp termination and is part of the Ampli-Bond series. The 322085 is classified as obsolete, making identification of suitable substitute components necessary for ongoing applications and procurement planning. The part is constructed with copper contact material, tin finish, and vinyl insulation, rated for unlimited moisture sensitivity conditions.

Substiute Parts

322085

TE Connectivity AMP ConnectorsIn Stock: 743322085 Datasheet

Current PartRFQ

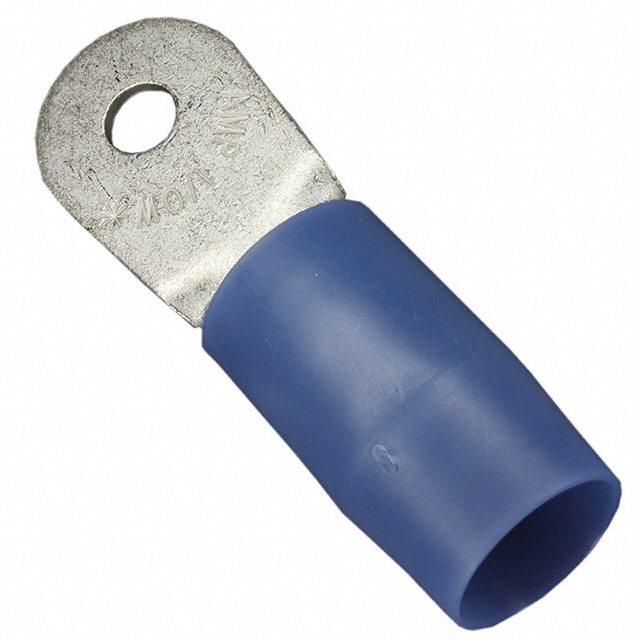

324056

TE Connectivity AMP ConnectorsIn Stock: 1743324056 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 322085 is determined by strict equivalence across critical electrical and mechanical parameters. The substitute part 324056 qualifies as a functional equivalent based on the following matching criteria:

Wire gauge compatibility (1/0 AWG), stud size (1/4 inch), terminal geometry (circular), termination method (crimp), contact material (copper), contact finish (tin), and serrated termination feature are identical between the main part and substitute. Both components are designed for free-hanging in-line mounting applications and maintain insulation properties suitable for the specified wire gauge.

Differences in insulation material composition (vinyl versus polyamide/nylon) and minor dimensional variations in insulation diameter and overall length do not affect functional compatibility within the specified electrical and mechanical parameters for this terminal category.

Parameter Comparison

Engineering Selection Recommendations

The 322085 is classified as obsolete, while the substitute part 324056 maintains active product status with TE Connectivity AMP Connectors. For new designs and ongoing procurement, 324056 is the appropriate selection due to its active availability and equivalent electrical and mechanical specifications.

The 324056 is supplied in bulk packaging and maintains higher inventory levels (1650 pieces in stock versus 687 pieces for the 322085), supporting consistent supply chain availability. Both components share identical wire gauge, stud size, termination method, contact material, and contact finish specifications.

The insulation material difference (polyamide/nylon in 324056 versus vinyl in 322085) represents a material upgrade in the substitute part. Polyamide insulation provides enhanced durability and chemical resistance compared to vinyl. The minor dimensional variation in insulation diameter (0.580 inches for 324056 versus 0.632 inches for 322085) reflects the different insulation material composition and does not affect functional compatibility for the specified 1/0 AWG wire gauge application.

Both parts carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, supporting equivalent regulatory treatment in export and tariff applications.

Frequently Asked Questions (FAQ)

Q: Can 324056 directly replace 322085 in existing applications?

A: Yes. Both components share identical wire gauge (1/0 AWG), stud size (1/4 inch), terminal geometry (circular), crimp termination method, contact material (copper), contact finish (tin), and serrated termination features. The electrical and mechanical interface specifications are equivalent.

Q: What is the significance of the insulation material difference?

A: The 322085 uses vinyl insulation while 324056 uses polyamide (nylon) insulation. Polyamide provides superior chemical resistance and durability. This represents a material improvement in the substitute part and does not create compatibility issues for the specified application.

Q: Why is the insulation diameter different between the two parts?

A: The insulation diameter difference (0.632 inches for 322085 versus 0.580 inches for 324056) results from the different insulation material compositions. Both diameters are appropriate for 1/0 AWG wire termination and do not affect functional performance.

Q: What is the availability status of each part?

A: The 322085 is classified as obsolete. The 324056 is active and maintains higher inventory availability (1650 pieces in stock). For new procurement, 324056 is the recommended selection.

Q: Are there packaging differences between these parts?

A: The 322085 packaging is listed as unspecified in the provided data. The 324056 is supplied in bulk packaging. Bulk packaging is standard for terminal components and supports efficient procurement workflows.

Q: Do both parts meet the same regulatory classifications?

A: Yes. Both components carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, supporting equivalent regulatory treatment for export and tariff purposes.

Q: What is the moisture sensitivity rating for these terminals?

A: Both the 322085 and 324056 carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage, handling, or installation.
