TE Connectivity Measurement Specialties 32205108 RTD Temperature Sensor Equivalent & Substitute Parts
Part Overview

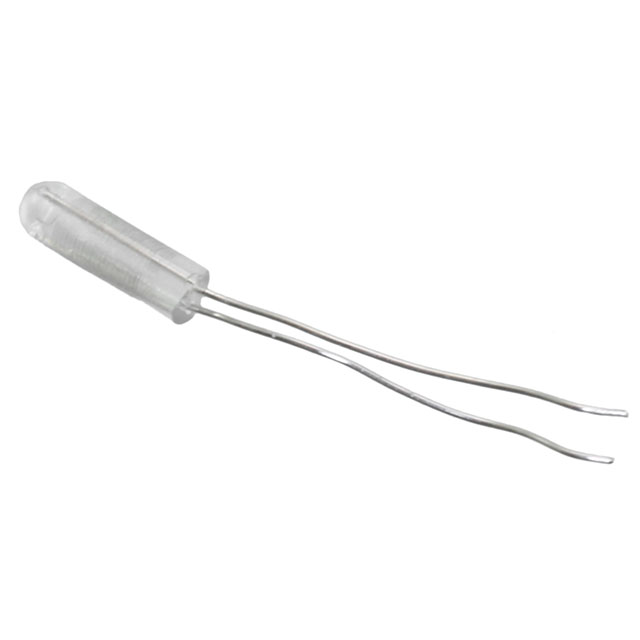

The TE Connectivity Measurement Specialties 32205108 is a 100 Ohms RTD platinum temperature sensor housed in a cylindrical glass probe configuration. This component is classified as obsolete, necessitating identification of equivalent substitute parts for ongoing applications requiring RTD temperature measurement in the -196°C to 400°C operating range. The sensor delivers ±0.3°C accuracy with platinum resistance element specifications of 3850ppm/°C temperature coefficient and ±0.3% resistance tolerance at 0°C.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 32205108 |
| Manufacturer | TE Connectivity Measurement Specialties |
| Category | Temperature Sensors |
| Description | SENSOR RTD 100OHM PROBE |
| Resistance @ 0°C | 100 Ohms |
| Resistance Tolerance | ±0.3% |
| RTD Material | Platinum (Pt) |
| Temperature Coefficient | 3850ppm/°C |
| Operating Temperature Range | -196°C ~ 400°C |
| Accuracy | ±0.3°C |
| Termination | Wire Leads |
| Mounting Type | Free Hanging |
| Package / Case | Cylindrical Probe, Glass |
| Product Status | Obsolete |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitution of the 32205108 is determined by strict equivalence across the following critical parameters:
Primary Substitution Criteria:
- Resistance value at 0°C: 100 Ohms
- RTD material composition: Platinum (Pt)
- Temperature coefficient: 3850ppm/°C
- Resistance tolerance: ±0.3%
- Operating temperature range: -196°C ~ 400°C
- Accuracy specification: ±0.3°C
- Termination type: Wire Leads
- Mounting configuration: Free Hanging
- Package type: Cylindrical Probe, Glass
The substitute part 20009700-00 satisfies these criteria as an equivalent RTD temperature sensor from the same manufacturer, TE Connectivity Measurement Specialties, maintaining functional and electrical compatibility with applications originally specified for the 32205108.
Parameter Comparison
| Parameter | 32205108 (Main Part) | 20009700-00 (Substitute) |
|---|---|---|
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| Category | Temperature Sensors | Temperature Sensors |
| Description | SENSOR RTD 100OHM PROBE | GX518 1PT100 W0.3 L5/D1.8MM |
| RTD Material | Platinum (Pt) | Platinum (Pt) |
| Resistance @ 0°C | 100 Ohms | 100 Ohms |
| Resistance Tolerance | ±0.3% | ±0.3% |
| Temperature Coefficient | 3850ppm/°C | 3850ppm/°C |
| Termination | Wire Leads | Wire Leads |
| Mounting Type | Free Hanging | Free Hanging |
| Package / Case | Cylindrical Probe, Glass | Cylindrical Probe, Glass |
| Product Status | Obsolete | Active |
| RoHS Status | ROHS3 Compliant | Not specified in data |
| Packaging | Not specified | Bulk |
Engineering Selection Recommendations
The 20009700-00 serves as the direct equivalent substitute for the obsolete 32205108. Both components are manufactured by TE Connectivity Measurement Specialties and maintain identical electrical and mechanical specifications across all critical parameters: 100 Ohms resistance at 0°C, platinum RTD material, 3850ppm/°C temperature coefficient, ±0.3% tolerance, and ±0.3°C accuracy.
The primary distinction between these parts is product status: the 32205108 is classified as obsolete while the 20009700-00 maintains active production status. This transition from obsolete to active status ensures continued availability and supply chain reliability for applications requiring RTD temperature measurement in the -196°C to 400°C operating range.
Both components satisfy ROHS3 compliance requirements. The 20009700-00 is supplied in bulk packaging, which may require adjustment to procurement and inventory management procedures compared to the original part's packaging configuration.
Frequently Asked Questions (FAQ)
Q: What makes the 20009700-00 a valid substitute for the 32205108?
A: The 20009700-00 maintains electrical and mechanical equivalence across all critical parameters: identical 100 Ohms resistance at 0°C, platinum RTD material, 3850ppm/°C temperature coefficient, ±0.3% resistance tolerance, ±0.3°C accuracy, wire lead termination, free hanging mounting, and cylindrical glass probe package. Both components are manufactured by TE Connectivity Measurement Specialties.
Q: Why is substitution necessary for the 32205108?
A: The 32205108 is classified as obsolete, indicating discontinued production. The 20009700-00 is an active production equivalent that provides functional and electrical compatibility while ensuring ongoing supply availability.
Q: Are there differences in packaging between these parts?
A: The 32205108 packaging configuration is not specified in available data. The 20009700-00 is supplied in bulk packaging. Procurement processes should account for this packaging difference when transitioning between components.
Q: Will the 20009700-00 operate across the same temperature range as the 32205108?
A: Both components operate across the -196°C to 400°C temperature range with identical accuracy specifications of ±0.3°C.
Q: Are both components RoHS compliant?
A: The 32205108 is confirmed ROHS3 compliant. RoHS compliance status for the 20009700-00 is not specified in available technical data.
Q: What is the resistance tolerance specification for the 20009700-00?
A: The 20009700-00 maintains the same ±0.3% resistance tolerance at 0°C as the 32205108.
