TE Connectivity AMP Connectors 322007 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 322007 is a ring terminal connector designed for 6 AWG wire gauge applications with a 3/8 inch stud connection. This circular terminal features crimp termination and is part of the Ampli-Bond series. The 322007 is classified as obsolete, making identification of equivalent substitute parts essential for ongoing procurement and system maintenance. Substitute parts must maintain electrical and mechanical compatibility while meeting current availability and compliance requirements.

Substiute Parts

322007

TE Connectivity AMP ConnectorsIn Stock: 716322007 Datasheet

Current PartRFQ

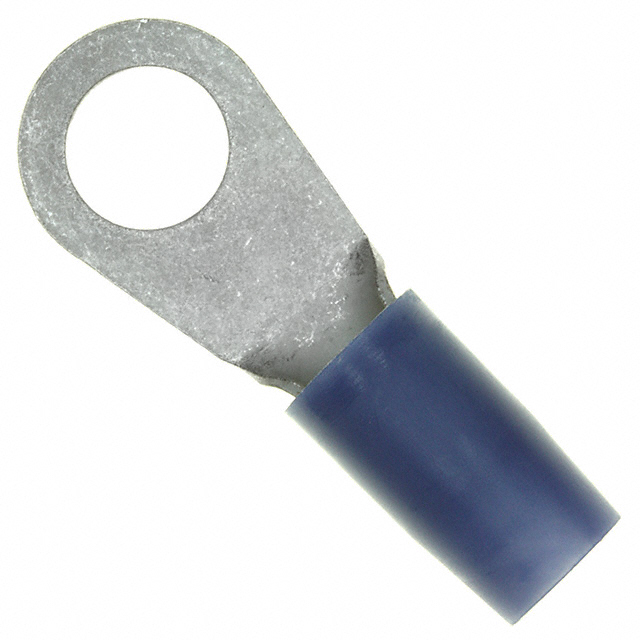

324049

TE Connectivity AMP ConnectorsIn Stock: 1181324049 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 322007 with the active 324049 is based on matching critical electrical and mechanical parameters that ensure functional equivalence in ring terminal connector applications. The substitution logic is determined by the following parameters:

Critical Matching Parameters:

• Wire Gauge: 6 AWG (identical)
• Stud/Tab Size: 3/8 Stud (identical)
• Terminal Type: Circular (identical)
• Termination Method: Crimp (identical)
• Contact Material: Copper (identical)
• Contact Finish: Tin (identical)
• Serrated Termination Feature: Present in both parts
• Insulation: Insulated (identical)

These parameters define the functional compatibility class for ring terminal connectors in this application category. Both parts are manufactured by TE Connectivity AMP Connectors and share the same base electrical and mechanical specifications required for 6 AWG crimp ring terminals with 3/8 inch stud mounting.

Parameter Comparison

Engineering Selection Recommendations

The 324049 serves as the direct substitute for the obsolete 322007 based on matching electrical and mechanical specifications for 6 AWG crimp ring terminals with 3/8 inch stud mounting. Selection between these parts is determined by the following factors:

Product Status Consideration: The 322007 is obsolete with no ongoing manufacturing. The 324049 is active and maintains current production status, ensuring long-term availability and supply chain continuity.

Compliance Status: The 324049 is RoHS compliant, whereas the 322007 is RoHS non-compliant. For applications subject to RoHS regulations or environmental compliance requirements, the 324049 is the appropriate selection.

Insulation Material Difference: The 322007 uses vinyl insulation while the 324049 uses polyamide (PA) nylon insulation. Both materials provide electrical insulation for the 6 AWG conductor. The polyamide material in the 324049 offers enhanced thermal and chemical resistance characteristics typical of modern terminal designs.

Dimensional Variations: Minor differences exist in overall length (1.914" versus 1.762") and insulation diameter (0.377" versus 0.314"). These dimensional variations reflect design evolution between the Ampli-Bond and Terminyl series but do not affect functional compatibility for standard ring terminal applications with 3/8 inch studs.

Inventory Availability: The 324049 has higher current inventory (1,075 pieces) compared to the 322007 (697 pieces), supporting immediate procurement requirements.

Frequently Asked Questions (FAQ)

Q: Can the 324049 directly replace the 322007 in existing applications?

A: Yes. Both parts share identical wire gauge (6 AWG), stud size (3/8 inch), terminal type (circular), termination method (crimp), contact material (copper), contact finish (tin), and serrated termination features. These parameters define functional equivalence for ring terminal connector applications.

Q: What is the significance of the different insulation materials?

A: The 322007 uses vinyl insulation while the 324049 uses polyamide (PA) nylon. Both materials provide electrical insulation for the conductor. Polyamide offers improved thermal stability and chemical resistance, representing an advancement in terminal design. The material change does not affect electrical performance in standard applications.

Q: Are there any dimensional concerns with substitution?

A: The 324049 has a slightly shorter overall length (1.762" versus 1.914") and smaller insulation diameter (0.314" versus 0.377"). These minor dimensional differences reflect design refinement between series but do not impact compatibility with 3/8 inch stud connections or 6 AWG wire termination.

Q: Why is RoHS compliance important for this substitution?

A: The 324049 is RoHS compliant while the 322007 is not. For applications in regulated industries or regions with RoHS requirements, the 324049 ensures compliance with environmental and material restriction standards.

Q: What packaging differences exist between these parts?

A: The 322007 is supplied in standard packaging while the 324049 is supplied in bulk packaging. Bulk packaging typically offers cost advantages for high-volume procurement while maintaining the same component specifications.

Q: Are both parts from the same manufacturer?

A: Yes. Both the 322007 and 324049 are manufactured by TE Connectivity AMP Connectors, ensuring consistent quality standards and manufacturing processes.

Q: What is the MSL rating and why does it matter?

A: Both parts have an MSL rating of 1 (Unlimited), indicating no moisture sensitivity limitations. These terminals can be stored and handled without special moisture control measures, simplifying inventory management and logistics.
