Phoenix Contact 3211030 Terminal Block - Equivalent & Substitute Parts

Part Overview

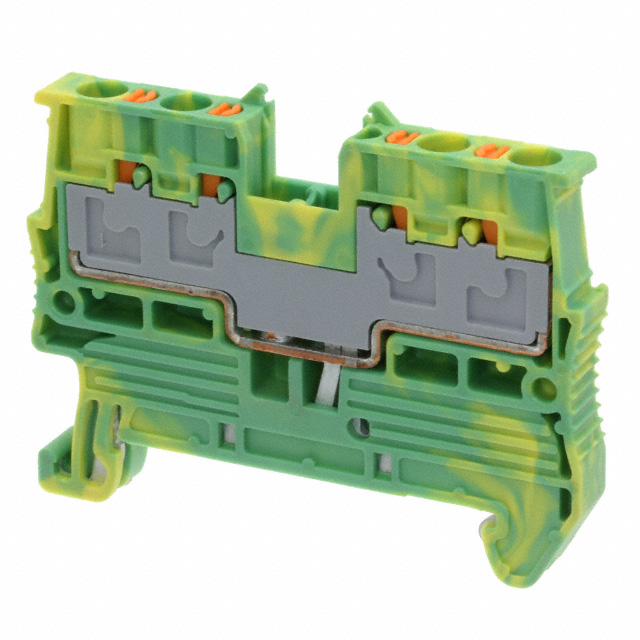

The Phoenix Contact 3211030 is a 4-position ground terminal block connector designed for wire gauges 12-26 AWG (0.14-2.5 mm²). This component features push-in spring termination with polyamide insulation rated UL94 V-0 and is part of the CLIPLINE PT series. The part is currently classified as obsolete, making identification of suitable substitutes essential for ongoing system maintenance and new designs requiring compatible grounding solutions.

Substiute Parts

3211030

Phoenix ContactIn Stock: 8963211030 Datasheet

Current PartRFQ

3209594

Phoenix ContactIn Stock: 99983209594 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 3211030 is determined by the following critical parameters:

• Electrical Compatibility: Identical number of positions (4), matching type classification (Ground, Earth), and compatible wire gauge range
• Mechanical Compatibility: Matching terminal width (5.2 mm), identical termination method (Push In, Spring), and compatible insulation material (Polyamide/Nylon)
• Safety & Compliance: Equivalent or superior flammability rating (UL94 V-0), RoHS compliance status, and matching color coding (Green, Yellow)
• Series Continuity: Parts from the same CLIPLINE PT series ensure form factor and mounting compatibility

The Phoenix Contact 3209594 meets all substitution criteria as an active-status alternative within the same product series.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3209594 is the direct substitute for the obsolete 3211030 model. Both components share identical electrical and mechanical specifications within the CLIPLINE PT series, ensuring drop-in compatibility for grounding applications requiring 4-position terminal blocks with 12-26 AWG wire capacity.

The 3209594 offers the following advantages:

• Active Product Status: Currently manufactured and supported by Phoenix Contact, ensuring long-term availability and supply chain reliability
• Enhanced Compliance: ROHS3 certification provides updated regulatory alignment compared to the legacy RoHS Compliant status of the 3211030
• Extended Wire Gauge Capacity: Supports wire gauges up to 4 mm² (versus 2.5 mm² maximum for the 3211030), providing additional flexibility for applications with larger conductor requirements
• Improved Availability: 9,907 units in stock versus 860 units for the obsolete part

No technical modifications to circuit design, PCB layout, or installation procedures are required when transitioning from 3211030 to 3209594.

Frequently Asked Questions (FAQ)

Q: Can the 3209594 be used as a direct replacement for the 3211030 in existing designs?

A: Yes. Both components are electrically and mechanically identical within the CLIPLINE PT series. The 3209594 maintains the same 4-position configuration, 5.2 mm terminal width, push-in spring termination, and UL94 V-0 flammability rating. No design modifications are necessary.

Q: What is the difference in wire gauge capacity between these parts?

A: The 3211030 accommodates wire gauges from 12-26 AWG (0.14-2.5 mm²), while the 3209594 extends the upper limit to 4 mm². For applications using conductors within the 0.14-2.5 mm² range, both parts perform identically. The 3209594 provides additional capacity for larger conductors if future requirements change.

Q: Does the packaging difference (Bulk vs. Box) affect compatibility?

A: No. Packaging format does not affect electrical or mechanical performance. The difference reflects only the distribution method. The terminal block components themselves are functionally equivalent.

Q: Why is the 3211030 classified as obsolete?

A: The 3211030 has been superseded by the 3209594 within the Phoenix Contact product line. The newer model maintains full compatibility while offering enhanced compliance certifications and extended specifications.

Q: Are there any compliance or certification differences?

A: Both parts carry UL94 V-0 flammability ratings and are RoHS compliant. The 3209594 carries ROHS3 certification, representing current regulatory standards. Both are EAR99 classified and share the same HTSUS code (8536.69.8000).

Q: What is the stripping length requirement for the 3209594?

A: The 3209594 specifies a 10 mm stripping length for wire preparation. This parameter was not provided for the 3211030 but should be applied when using the substitute component.
