Phoenix Contact 3206542 Terminal Block - Equivalent & Substitute Parts

Part Overview

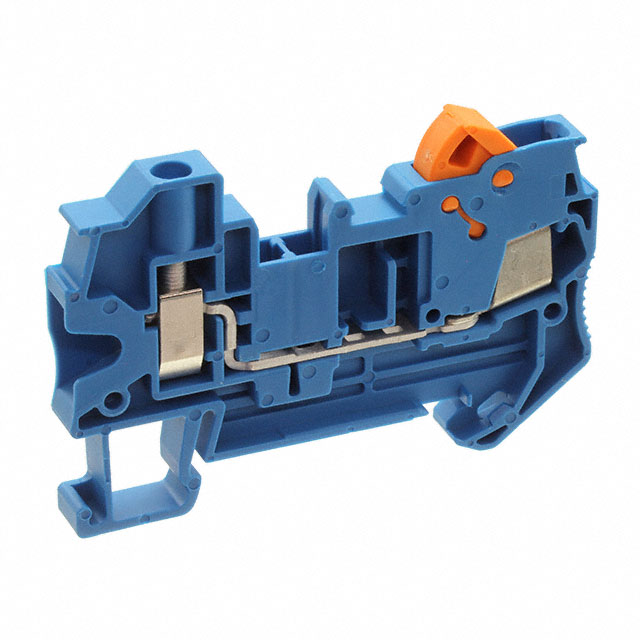

The Phoenix Contact 3206542 is a 2-position feed-through terminal block connector designed for wire gauges 10-26 AWG (0.5-2.5 mm²). This component features dual termination options (IDC and screw) and is rated for 24 A at 800V per IEC standards. The part carries Last Time Buy status, indicating discontinued production. Identifying qualified substitute components is essential for ongoing system maintenance and new design implementations where this connector type is specified.

Substiute Parts

3206542

Phoenix ContactIn Stock: 8103206542 Datasheet

Current PartRFQ

3206429

Phoenix ContactIn Stock: 7923206429 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 3206542 is determined by the following critical parameters:

Mandatory Matching Criteria:

• Manufacturer: Phoenix Contact
• Category: Terminal Blocks
• Type: Feed Through
• Number of Positions: 2
• Number of Levels: 1
• Terminal Width: 6.2 mm
• Color: Blue
• Material - Insulation: Polyamide (PA), Nylon
• Material Flammability Rating: UL94 V-0
• Electrical Ratings: Minimum 24 A (IEC) / 15 A (UL) and 800V (IEC) / 600V (UL)

Allowable Variation:

• Wire Gauge Range: Substitutes must accommodate the application's wire gauge requirements within their specified range
• Termination Style: Substitutes may differ in termination methodology while maintaining functional compatibility
• Series: May differ from CLIPLINE QTCU
• Product Status: Active status preferred over Last Time Buy

The substitute part 3206542 meets all mandatory criteria with the exception of wire gauge range (14-20 AWG versus 10-26 AWG) and termination style (IDC only versus IDC and screw). This substitution is valid only when the application wire gauge falls within the 14-20 AWG range and IDC termination is acceptable.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3206429 qualifies as a substitute for the 3206542 under the following conditions:

Compatibility Conditions:

• Application wire gauge must fall within the 14-20 AWG range
• System design must accommodate IDC termination methodology
• Screw termination capability is not required

Advantages of Substitution:

• The 3206429 maintains identical electrical performance (24 A at 800V IEC; 15 A at 600V UL)
• Active product status ensures ongoing availability and supply chain continuity
• Identical mechanical footprint (6.2 mm terminal width, 2-position configuration)
• Equivalent material composition and flammability rating (UL94 V-0)
• Both parts maintain RoHS compliance

Limitations:

• Wire gauge range is narrower (14-20 AWG versus 10-26 AWG)
• Termination style is limited to IDC only; screw termination is not available
• Series designation differs (CLIPLINE QTC versus CLIPLINE QTCU)

Frequently Asked Questions (FAQ)

Q: Can the 3206429 replace the 3206542 in all applications?

A: No. The 3206429 is a valid substitute only when the application wire gauge is 14-20 AWG and IDC termination is acceptable. Applications requiring 10-13 AWG or 21-26 AWG wire gauges, or those requiring screw termination, cannot use the 3206429 as a direct substitute.

Q: What is the difference between IDC and screw termination?

A: IDC (Insulation Displacement Connector) termination pierces the wire insulation during insertion. Screw termination uses a mechanical screw to secure the wire. The 3206542 supports both methods; the 3206429 supports IDC only.

Q: Are the electrical ratings identical between these parts?

A: Yes. Both parts are rated for 24 A at 800V per IEC standards and 15 A at 600V per UL standards. Electrical performance is equivalent.

Q: Why is the 3206542 marked as Last Time Buy?

A: Last Time Buy status indicates the manufacturer has discontinued production. The 3206429 is an active product and represents the current Phoenix Contact offering in this terminal block category.

Q: Do both parts meet RoHS requirements?

A: Yes. The 3206542 is ROHS3 compliant, and the 3206429 is RoHS compliant. Both parts satisfy RoHS directives.

Q: Can I use the 3206429 if my application uses 10 AWG wire?

A: No. The 3206429 wire gauge range is 14-20 AWG. Wire gauges below 14 AWG are outside the specified operating range and cannot be used with this connector.
