Phoenix Contact 3206539 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 3206539 is a 2-position feed-through terminal block connector designed for wire gauges 14-20 AWG (0.5-2.5 mm²). This component operates at 24 A (IEC) / 15 A (UL) and 800 V (IEC) / 600 V (UL), with dual termination options (IDC and Screw). The part is classified as Last Time Buy, indicating discontinued production. Identifying equivalent substitute parts is necessary to ensure continued availability and design continuity for applications currently using this connector.

Substiute Parts

3206539

Phoenix ContactIn Stock: 13203206539 Datasheet

Current PartRFQ

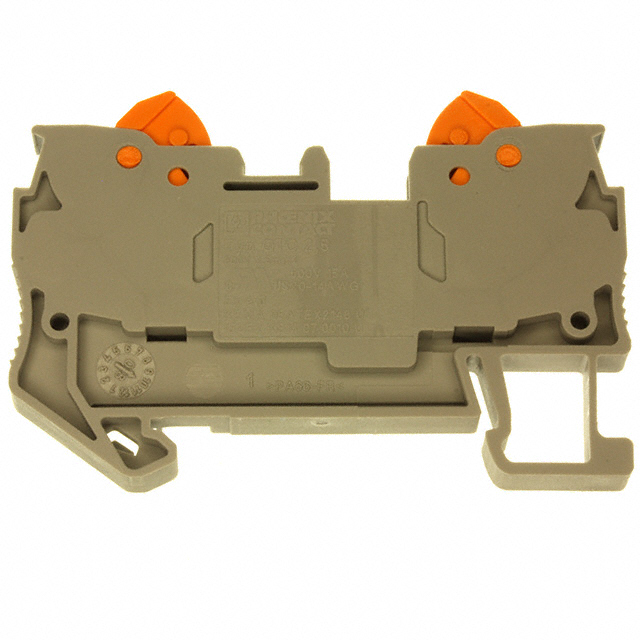

3206416

Phoenix ContactIn Stock: 12033206416 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 3206539 is determined by the following critical parameters:

• Electrical Specifications: Current and voltage ratings must meet or exceed IEC 24 A / 800 V and UL 15 A / 600 V
• Physical Configuration: 2-position, 1-level feed-through design with 6.2 mm terminal width
• Wire Compatibility: Support for 14-20 AWG (0.5-2.5 mm²) wire gauges
• Termination Method: IDC and/or Screw termination capability
• Material and Safety: Polyamide insulation with UL94 V-0 flammability rating
• Regulatory Compliance: RoHS compliance and equivalent ECCN/HTSUS classification

The Phoenix Contact 3206416 meets all substitution criteria within the CLIPLINE product family, maintaining electrical performance, physical compatibility, and regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3206416 is the direct substitute for the 3206539. Both components share identical electrical ratings, physical dimensions, wire gauge compatibility, and material specifications. The 3206416 carries Active product status, ensuring continued availability and supply chain stability compared to the Last Time Buy status of the 3206539.

The 3206416 is compliant with ROHS3 standards, representing an updated regulatory classification relative to the original RoHS Compliant designation of the 3206539. Both parts maintain EAR99 export classification and equivalent HTSUS coding.

The primary difference between the parts is the termination style: the 3206539 supports both IDC and Screw termination, while the 3206416 supports IDC termination. Applications requiring screw termination exclusively should evaluate alternative options within the CLIPLINE product family.

Frequently Asked Questions (FAQ)

Q: Can the 3206416 directly replace the 3206539 in existing designs?

A: Yes, for applications utilizing IDC termination. The 3206416 maintains identical electrical ratings (24 A IEC / 15 A UL, 800 V IEC / 600 V UL), physical configuration (2-position, 1-level), wire gauge compatibility (14-20 AWG), and material specifications. Applications requiring screw termination must identify alternative components.

Q: What is the difference in termination capability between these parts?

A: The 3206539 offers dual termination options (IDC and Screw), while the 3206416 provides IDC termination only. This difference does not affect electrical or mechanical compatibility for IDC-based applications.

Q: Are there packaging differences between the 3206539 and 3206416?

A: Yes. The 3206539 is supplied in Bulk packaging, while the 3206416 is supplied in Box packaging. This distinction affects inventory management and handling procedures but does not impact component performance or compatibility.

Q: Does the ROHS3 compliance of the 3206416 affect compatibility with RoHS Compliant systems?

A: No. ROHS3 represents an updated regulatory classification that maintains backward compatibility with RoHS Compliant requirements. Both parts meet the same material restriction standards applicable to terminal block connectors.

Q: Are both parts suitable for the same voltage and current applications?

A: Yes. Both the 3206539 and 3206416 are rated for 24 A (IEC) / 15 A (UL) and 800 V (IEC) / 600 V (UL). They are electrically equivalent for all standard industrial control and power distribution applications within these ratings.
