TE Connectivity 316768-9 Rectangular Connector Plug Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 316768-9 is a 1-position rectangular connector plug housing from the Power Double Lock series. This component is a black polyamide (PA66/Nylon 6/6) housing designed for crimp termination with latch holder fastening. The part is classified as Active product status with full RoHS3 compliance and MSL Level 1 rating.

Substitute parts are identified to provide alternative options when the primary part number is unavailable or when specific application requirements necessitate alternative configurations within the same functional category.

Substiute Parts

316768-9

TE Connectivity AMP ConnectorsIn Stock: 1011316768-9 Datasheet

Current PartRFQ

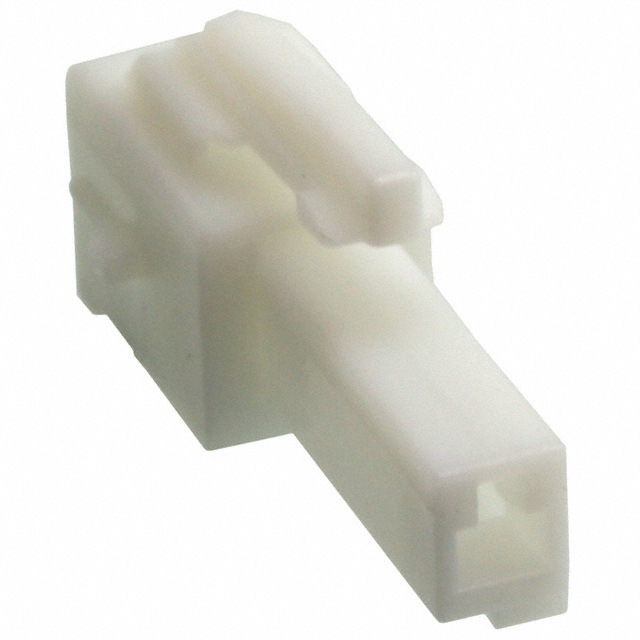

316768-1

TE Connectivity AMP ConnectorsIn Stock: 6115316768-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 316768-1 is classified as a parametric equivalent based on the following matching criteria:

Matching Parameters:

• Identical manufacturer (TE Connectivity AMP Connectors)
• Identical product category (Rectangular Connectors)
• Identical series designation (Power Double Lock)
• Identical connector type (Plug)
• Identical contact type (Female Socket)
• Identical number of positions (1)
• Identical number of rows (1)
• Identical mounting type (Free Hanging In-Line)
• Identical contact termination method (Crimp)
• Identical fastening type (Latch Holder)
• Identical insulation material (Polyamide PA66, Nylon 6/6)
• Identical operating temperature range (-30°C to 105°C)
• Identical RoHS compliance status (ROHS3 Compliant)
• Identical MSL rating (Level 1 Unlimited)
• Identical base product number (316768)

Differentiating Parameter:

• Housing color: 316768-9 is Black; 316768-1 is Natural

The color variation represents the only functional difference between these parts. Both housings maintain identical electrical and mechanical specifications, dimensional compatibility, and performance characteristics within the Power Double Lock connector series.

Parameter Comparison

Engineering Selection Recommendations

Both 316768-9 and 316768-1 are Active product status components manufactured by TE Connectivity AMP Connectors within the Power Double Lock rectangular connector series. Both parts maintain full ROHS3 compliance and MSL Level 1 rating, meeting current regulatory requirements for electronic component applications.

The selection between these parts is determined by housing color requirements:

316768-9 (Black Housing): Select this part number when black housing color is specified in the application design or when visual identification requires black connector housings.

316768-1 (Natural Housing): Select this part number when natural (undyed) housing color is specified or when black housing is not required. This part number currently maintains higher inventory availability (6026 pieces versus 974 pieces).

Both parts are electrically and mechanically interchangeable within applications where housing color does not impact functional performance or system requirements. The choice between these substitutes depends solely on application-specific color requirements and inventory availability.

Frequently Asked Questions (FAQ)

Q: Are 316768-9 and 316768-1 electrically interchangeable?

A: Yes. Both parts are identical in all electrical and mechanical specifications including connector type, contact configuration, termination method, operating temperature range, and compliance certifications. The only difference is housing color.

Q: What is the primary difference between these substitute parts?

A: The housing color is the only differentiating parameter. 316768-9 features a black housing while 316768-1 features a natural (undyed) housing. All other specifications remain identical.

Q: Can I substitute 316768-1 for 316768-9 in my application?

A: Substitution is possible if housing color is not a critical design requirement. If the application specifies black housing for visual identification, thermal management, or aesthetic purposes, 316768-9 must be used. If color is not functionally critical, 316768-1 is a valid substitute.

Q: Do both parts require the same contact specifications?

A: Yes. Both housings are designed for identical crimp termination contacts within the Power Double Lock series. Contact specifications are independent of housing color and remain consistent across both part numbers.

Q: What is the operating temperature range for both parts?

A: Both 316768-9 and 316768-1 operate within the range of -30°C to 105°C. This specification is identical for both substitute parts.

Q: Are both parts RoHS compliant?

A: Yes. Both 316768-9 and 316768-1 are ROHS3 compliant and carry MSL Level 1 (Unlimited) moisture sensitivity rating, meeting current regulatory requirements.

Q: What is the difference in current inventory levels?

A: 316768-9 (black) currently has 974 pieces in stock, while 316768-1 (natural) has 6026 pieces in stock. Inventory availability may influence part selection when immediate delivery is required.

Q: Are contacts included with these housings?

A: No. Both 316768-9 and 316768-1 are housings only. Contacts must be sourced separately and are not included with these part numbers.

Q: What mounting configuration do these connectors support?

A: Both parts support Free Hanging (In-Line) mounting type, allowing flexible installation in applications requiring non-panel-mounted connector configurations.
