Equivalent & Substitute Parts for 3-1470107-2

Part Overview

The TE Connectivity AMP Connectors 3-1470107-2 is a 32-position rectangular connector receptacle housing with 2.00mm pitch, designed for high-performance interconnect applications. This connector features a white thermoplastic housing, female socket contacts, and crimp termination. The part is currently active in production with 1027 units in stock.

Substitute parts are identified when equivalent rectangular connectors share identical electrical and mechanical specifications, including pitch, position count, row configuration, contact type, and operating temperature range. Alternative sources ensure design flexibility, supply chain continuity, and component availability across manufacturing environments.

Substiute Parts

3-1470107-2

TE Connectivity AMP ConnectorsIn Stock: 11033-1470107-2 Datasheet

Current PartRFQ

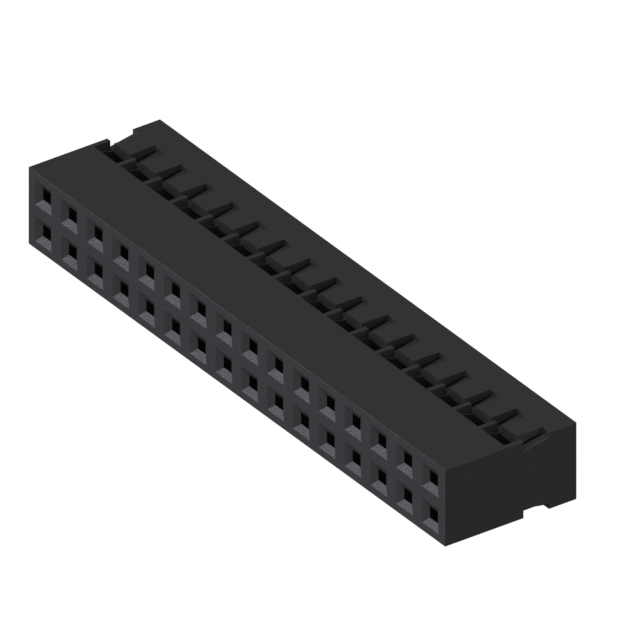

M22-3021600

Harwin Inc.In Stock: 1629M22-3021600 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connector housings is determined by strict equivalence across the following critical parameters:

• Electrical Compatibility: Connector type (receptacle), contact type (female socket), number of positions (32), and pitch (2.00mm) must be identical
• Mechanical Compatibility: Row configuration (2 rows), row spacing (2.00mm), and mounting type (free hanging in-line) must match exactly
• Termination Method: Contact termination type (crimp) must be consistent
• Environmental Specifications: Operating temperature range (-25°C ~ 85°C) and moisture sensitivity level (MSL 1) must be equivalent or superior
• Material Specification: Insulation material (thermoplastic) must be the same

The substitute part M22-3021600 from Harwin Inc. meets all these criteria, differing only in housing color (black versus white) and manufacturer series designation, which do not affect functional compatibility or electrical performance.

Parameter Comparison

Engineering Selection Recommendations

Both the TE Connectivity 3-1470107-2 and Harwin Inc. M22-3021600 are active production parts with full RoHS compliance. The M22-3021600 carries ROHS3 compliance, which represents the current regulatory standard. Both parts are classified as MSL 1 (unlimited moisture sensitivity), indicating no special storage or handling requirements.

Selection between these parts should be based on:

• Supply Availability: The M22-3021600 currently has 1582 units in stock compared to 1027 units for the 3-1470107-2
• Color Requirement: The 3-1470107-2 features white housing; the M22-3021600 features black housing. Color selection depends on application-specific requirements or design specifications
• Regulatory Compliance: Both parts meet current RoHS requirements; the M22-3021600 carries explicit ROHS3 designation
• Manufacturer Preference: Design specifications may require a specific manufacturer series (HPI for TE Connectivity or M22 for Harwin)

Both parts are electrically and mechanically interchangeable when color and manufacturer designation are not design constraints.

Frequently Asked Questions (FAQ)

Q: Are the 3-1470107-2 and M22-3021600 fully interchangeable?

A: Yes, these parts are fully interchangeable from an electrical and mechanical standpoint. All critical parameters including pitch, position count, row configuration, contact type, termination method, and operating temperature range are identical. The only differences are housing color (white versus black) and manufacturer series designation.

Q: Does the housing color difference affect electrical performance?

A: No. Housing color is a cosmetic specification that does not affect electrical performance, signal integrity, or mechanical function. Color selection is determined by application requirements or design aesthetics only.

Q: What does MSL 1 (Unlimited) mean for these connectors?

A: MSL 1 indicates the lowest moisture sensitivity level. These connectors require no special moisture control during storage, handling, or assembly. Standard warehouse conditions are acceptable.

Q: Are both parts RoHS compliant?

A: Yes. The 3-1470107-2 is RoHS Compliant, and the M22-3021600 is ROHS3 Compliant. ROHS3 represents the current regulatory standard. Both parts meet RoHS requirements.

Q: Can I use these connectors with contacts from different manufacturers?

A: Both part descriptions specify "Contacts Not Included." Contacts must be sourced separately and must be compatible with the 2.00mm pitch, crimp termination specification, and female socket configuration. Contact compatibility should be verified against the connector housing specifications.

Q: What is the difference between the HPI series and M22 series?

A: HPI (High Performance Interconnect) is the TE Connectivity series designation, while M22 is the Harwin Inc. series designation. These are manufacturer-specific series identifiers and do not affect electrical or mechanical compatibility between the housings.

Q: Are there any packaging differences between these parts?

A: Both parts are supplied in bulk packaging. Inventory levels differ: 1027 units for the 3-1470107-2 and 1582 units for the M22-3021600.

Q: What is the REACH status difference between these parts?

A: The 3-1470107-2 lists REACH status as "Vendor Undefined," while the M22-3021600 lists "REACH Unaffected." Both statuses indicate acceptable regulatory standing. REACH Unaffected means the substance is not subject to REACH restrictions.
