TE Connectivity Corcom Filters 30AYP6C Line Filter Equivalent & Substitute Parts

Part Overview

The TE Connectivity Corcom Filters 30AYP6C is an active, three-phase (Wye) EMC/EMI line filter rated for 30 A AC operation at 50/60 Hz. This chassis-mounted filter features a two-stage configuration with threaded post termination (1/4-20) and is designed for general-purpose applications requiring electromagnetic compatibility filtering. The unit is rated for 250 V phase-to-ground/neutral and 440 V phase-to-phase operation.

Equivalent and substitute parts are identified when alternative components meet the core functional requirements of three-phase filtering, two-stage configuration, 50/60 Hz operation, and chassis-mount installation, while maintaining compliance with applicable approval agencies and RoHS standards.

Substiute Parts

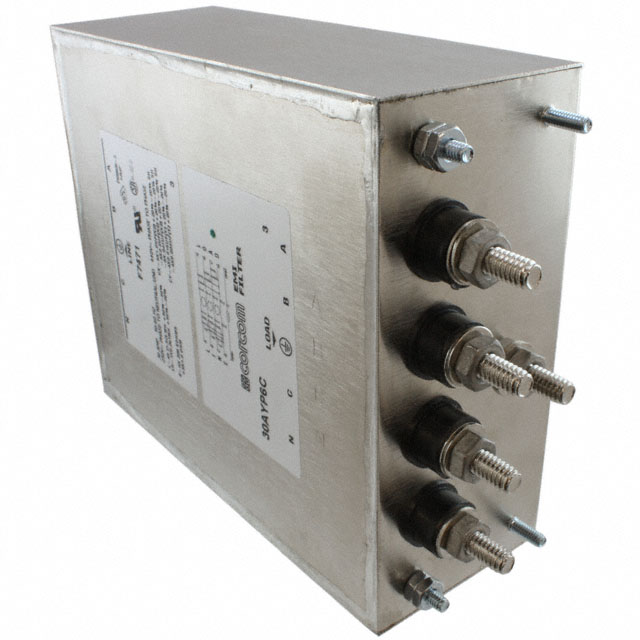

30AYP6C

TE Connectivity Corcom FiltersIn Stock: 94230AYP6C Datasheet

Current PartRFQ

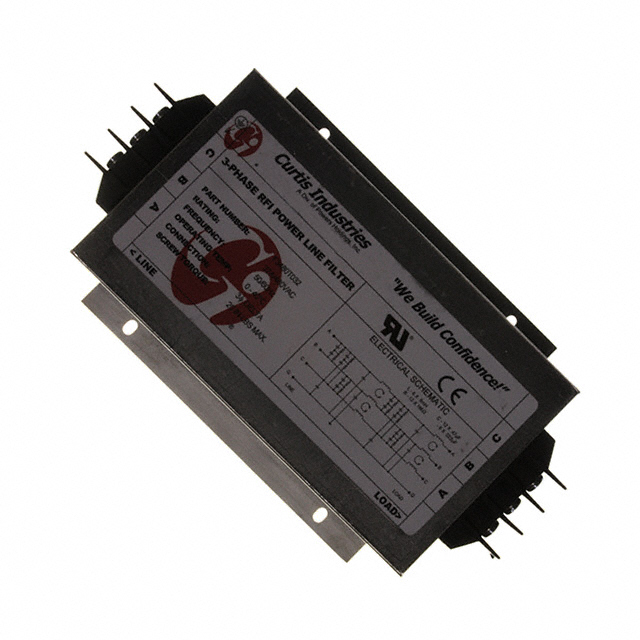

F3600T045

Curtis IndustriesIn Stock: 967F3600T045 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 30AYP6C are identified based on the following core substitution criteria:

Primary Compatibility Parameters:

• Filter Type: Three Phase (Wye) configuration
• Configuration: Two Stage EMC/EMI filtering
• Frequency: 50/60 Hz operation
• Mounting: Chassis Mount installation
• Applications: General Purpose use
• Compliance: RoHS3 Compliant status
• Product Status: Active

Secondary Consideration Parameters:

• Current Rating: Substitute parts must equal or exceed the 30 A requirement
• Voltage Rating: Substitute parts must accommodate the 250 V phase-to-ground and 440 V phase-to-phase specifications
• Termination Style: Variations in termination (threaded post versus terminal block) are acceptable when mechanical integration is feasible

The Curtis Industries F3600T045 qualifies as a substitute based on matching filter type, two-stage configuration, 50/60 Hz operation, chassis-mount design, general-purpose application category, RoHS3 compliance, and active product status. The F3600T045 provides higher current capacity (45 A versus 30 A) and higher voltage rating (600 V AC versus 440 V phase-to-phase), making it suitable for applications requiring the 30AYP6C specifications.

Parameter Comparison

Engineering Selection Recommendations

30AYP6C Selection Criteria: The TE Connectivity Corcom Filters 30AYP6C is the primary choice for applications requiring exact compliance with CSA and UL approval agencies, threaded post (1/4-20) termination, and operating specifications of 250 V phase-to-ground/neutral and 440 V phase-to-phase at 30 A. This part maintains active product status and full ROHS3 compliance.

F3600T045 Selection Criteria: The Curtis Industries F3600T045 serves as a substitute when higher current capacity (45 A) and higher voltage rating (600 V AC) are available in the system design. This part is suitable for applications where UR approval agency certification is acceptable in place of CSA/UL certification. The terminal block termination style requires mechanical integration verification. This part maintains active product status and full ROHS3 compliance.

Compliance Considerations: Both parts are ROHS3 compliant and carry active product status. The primary difference in approval agencies (CSA/UL for 30AYP6C versus UR for F3600T045) must be evaluated against specific regulatory requirements for the end application.

Frequently Asked Questions (FAQ)

Q: Can the F3600T045 directly replace the 30AYP6C in all applications?

A: The F3600T045 is functionally equivalent for three-phase EMC/EMI filtering at 50/60 Hz with two-stage configuration and chassis-mount design. However, termination style differs (terminal block versus threaded post 1/4-20), requiring mechanical integration assessment. Approval agency differences (UR versus CSA/UL) must be verified against application requirements.

Q: What are the key parameters that determine substitutability?

A: Substitutability is determined by: filter type (three-phase Wye), configuration (two-stage), frequency (50/60 Hz), mounting type (chassis mount), application category (general purpose), and compliance status (RoHS3 compliant, active product). Current and voltage ratings must meet or exceed the original specification.

Q: Does the higher current rating (45 A) of the F3600T045 affect compatibility?

A: Higher current rating does not negatively affect compatibility. The F3600T045 is rated for 45 A, which exceeds the 30 A requirement of the 30AYP6C. This provides additional capacity margin for the application.

Q: Are there voltage compatibility concerns between these parts?

A: The 30AYP6C is rated for 440 V phase-to-phase operation. The F3600T045 is rated for 600 V AC, which exceeds this requirement. Both parts operate at 50/60 Hz. Voltage compatibility is maintained when substituting the F3600T045.

Q: What is the significance of the different termination styles?

A: The 30AYP6C uses threaded post (1/4-20) termination, while the F3600T045 uses terminal block termination. These require different mechanical connection methods. Physical integration into the chassis and electrical connection procedures must be evaluated during substitution planning.

Q: How do the approval agencies differ between these parts?

A: The 30AYP6C carries CSA and UL approvals. The F3600T045 carries UR approval. Selection between these certifications depends on the regulatory requirements of the specific application and geographic market.

Q: Are both parts currently available?

A: Both parts maintain active product status. The 30AYP6C has 864 pieces in stock, and the F3600T045 has 926 pieces in stock as new original inventory.
