309NPC500K Equivalent & Substitute Parts

Part Overview

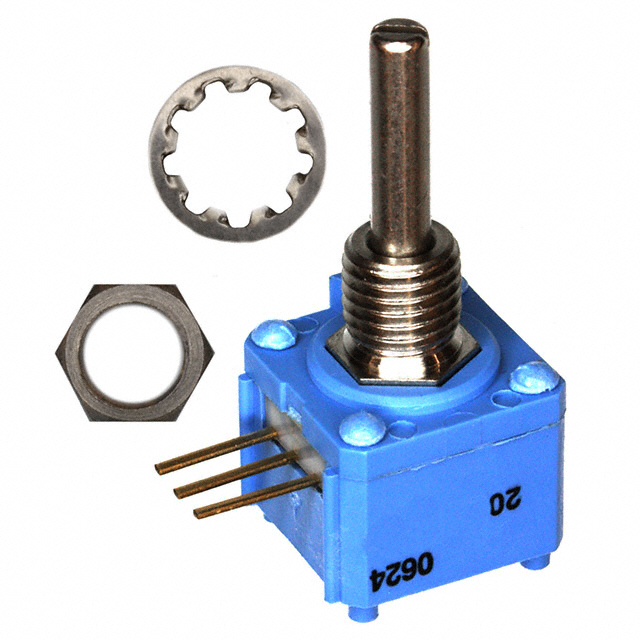

The 309NPC500K is a 500k Ohm 1-watt linear panel mount potentiometer manufactured by Honeywell Sensing and Productivity Solutions. This component features a cermet resistive element, 1-gang configuration, side adjustment capability, and PC pin termination suitable for panel-mounted applications. The product is currently obsolete, necessitating identification of functionally equivalent substitute components for ongoing system maintenance and new design implementations.

Substiute Parts

309NPC500K

Honeywell Sensing and Productivity SolutionsIn Stock: 782309NPC500K Datasheet

Current PartRFQ

91A1A-B24-B23L

Bourns Inc.In Stock: 109691A1A-B24-B23L Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute components for the 309NPC500K must satisfy the following mandatory criteria:

Electrical Parameters (Non-negotiable):

• Resistance value: 500k Ohm
• Power rating: 1W minimum
• Taper characteristic: Linear
• Number of gangs: 1 gang only
• Termination: PC pins

Mechanical Parameters (Non-negotiable):

• Mounting configuration: Panel mount
• Adjustment mechanism: Side adjustment
• Number of turns: 1 turn
• Actuator type: Slotted

Allowable Variations:

• Tolerance: ±10% to ±20% acceptable
• Resistive material: Cermet or conductive plastic
• Rotation angle: 295° to 300° acceptable
• Actuator dimensions: Minor variations permitted if panel cutout compatibility maintained
• Bushing thread: Variations acceptable if mechanical mounting achievable
• Body size: Variations acceptable if panel mounting feasible

The 91A1A-B24-B23L from Bourns Inc. qualifies as a substitute based on matching all critical electrical and mechanical parameters while operating within allowable tolerance ranges.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 91A1A-B24-B23L (Bourns Inc.)

The 91A1A-B24-B23L is qualified as a direct substitute for the obsolete 309NPC500K based on the following engineering criteria:

1. Electrical Equivalence: Identical 500k Ohm resistance and 1W power rating ensure functional compatibility in circuit applications.

2. Mechanical Compatibility: Matching panel mount configuration, side adjustment mechanism, 1-turn rotation, slotted actuator, and PC pin termination enable direct replacement in existing mechanical assemblies.

3. Tolerance Consideration: The 91A1A-B24-B23L tolerance of ±20% is wider than the original ±10%, but remains within acceptable engineering margins for potentiometer applications where the 309NPC500K was specified.

4. Compliance Status: Both components meet RoHS requirements. The 91A1A-B24-B23L carries ROHS3 compliance and is REACH affected, meeting current regulatory standards.

5. Availability: The 91A1A-B24-B23L is in active production status with confirmed inventory availability, ensuring supply chain continuity for the obsolete 309NPC500K.

6. Resistive Material Difference: The 91A1A-B24-B23L employs conductive plastic technology versus the cermet element in the 309NPC500K. Both technologies are established for linear potentiometer applications and deliver equivalent performance within the specified electrical parameters.

Frequently Asked Questions (FAQ)

Q: Can the 91A1A-B24-B23L directly replace the 309NPC500K without circuit modifications?

A: Yes. The substitute part matches all critical electrical parameters (500k Ohm, 1W, linear taper, 1 gang) and mechanical specifications (panel mount, side adjustment, PC pins). No circuit modifications are required.

Q: What is the significance of the tolerance difference (±10% versus ±20%)?

A: The 309NPC500K specifies ±10% tolerance while the 91A1A-B24-B23L specifies ±20%. In potentiometer applications, both tolerance classes are standard. The wider tolerance of the substitute does not affect functional compatibility for typical control and adjustment circuits. Applications requiring tighter tolerance control should evaluate specific circuit requirements.

Q: Are there mechanical compatibility concerns with the different body sizes?

A: The 309NPC500K has a square body (0.500" x 0.500" face) while the 91A1A-B24-B23L has a rectangular body (0.687" x 0.625" face). Both mount via panel cutout with identical bushing thread specifications. Mechanical compatibility depends on available panel space. Verify panel cutout dimensions before implementation.

Q: How does the resistive material difference affect performance?

A: The 309NPC500K uses cermet (ceramic-metal composite) while the 91A1A-B24-B23L uses conductive plastic. Both materials deliver linear taper characteristics and 1W power handling. Cermet elements typically offer higher temperature stability; conductive plastic elements offer smoother operation. For standard panel control applications, both technologies perform equivalently within specified parameters.

Q: What is the rotation angle difference between 295° and 300°?

A: The 309NPC500K specifies 295° rotation while the 91A1A-B24-B23L specifies 300°. This 5° difference is negligible for panel-mounted potentiometer applications and does not affect functional compatibility or adjustment range in typical circuits.

Q: Are there any compliance or certification differences?

A: Both components meet RoHS requirements. The 91A1A-B24-B23L carries ROHS3 compliance, which supersedes earlier RoHS standards. The substitute is REACH affected, indicating compliance with current European chemical regulations. Both components carry EAR99 export classification.

Q: What inventory status should be considered for procurement?

A: The 309NPC500K is obsolete with 693 pieces in stock. The 91A1A-B24-B23L is in active production with 1028 pieces available. For new designs and long-term supply requirements, the 91A1A-B24-B23L is the recommended selection due to active manufacturing status.
