Phoenix Contact 3073584 Terminal Block - Equivalent & Substitute Parts

Part Overview

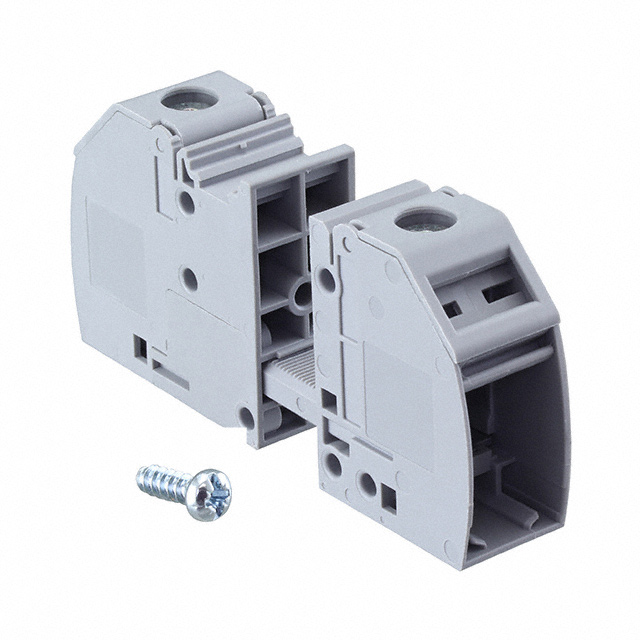

The Phoenix Contact 3073584 is a 1-position terminal block with bolt/screw clamp wire entry at 90° to the panel, rated for 600V and 65A. This component is part of the CLIPLINE RW series and is classified as obsolete. Due to its obsolete status, identifying functionally equivalent active alternatives is essential for ongoing system maintenance and new design implementations.

Substiute Parts

3073584

Phoenix ContactIn Stock: 9143073584 Datasheet

Current PartRFQ

3073335

Phoenix ContactIn Stock: 11453073335 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 3073335 qualifies as a functional substitute for the 3073584 based on the following critical parameters:

Matching Parameters:

• Manufacturer: Phoenix Contact
• Positions Per Level: 1
• Voltage - UL: 600 V
• Current - UL: 65 A
• Wire Connection Type: Bolt/Screw Clamp - Wire Entry 90° to Panel
• Panel Mount Type: 2 Piece
• Color: Gray
• Number of Levels: 1

Differing Parameters:

• Series: CLIPLINE UW (substitute) vs. CLIPLINE RW (original)
• Width: 0.398" (10.10mm) vs. 0.642" (16.30mm)
• Panel Thickness: 0.039 ~ 0.157" (1.0 ~ 4.0mm) vs. 0.039 ~ 0.236" (1.0 ~ 6.0mm)
• Wire Gauge: 6-20 AWG vs. 6-26 AWG
• Product Status: Active vs. Obsolete
• RoHS Status: ROHS3 Compliant vs. RoHS Compliant

The 3073335 maintains electrical compatibility (voltage and current ratings) and functional design (screw clamp connection, 90° wire entry, 2-piece panel mount). Physical dimensions and wire gauge range differ, requiring verification against specific installation constraints.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3073335 is the active equivalent for the obsolete 3073584. Both components share identical electrical ratings (600V, 65A) and functional design characteristics (screw clamp connection, 90° panel wire entry, 2-piece mount).

Selection of the 3073335 is supported by:

• Active product status ensuring ongoing availability and supply chain continuity
• ROHS3 compliance, representing current regulatory standards
• Maintained electrical and mechanical compatibility for the core terminal block function

Physical differences (width, panel thickness range, wire gauge range) must be evaluated against specific installation requirements. The 3073335 accommodates panel thicknesses up to 4.0mm and wire gauges 6-20 AWG, compared to the original's 6.0mm panel thickness and 6-26 AWG wire gauge range.

Frequently Asked Questions (FAQ)

Q: Can the 3073335 directly replace the 3073584 in existing installations?

A: Electrical compatibility is confirmed (600V, 65A ratings, screw clamp connection, 90° wire entry). Physical compatibility depends on panel thickness and wire gauge requirements. Verify that the installation panel thickness does not exceed 4.0mm and that wire gauges fall within the 6-20 AWG range.

Q: What are the key differences between these two parts?

A: The primary differences are physical dimensions and wire gauge range. The 3073335 is narrower (0.398" vs. 0.642") and supports panel thicknesses up to 4.0mm (vs. 6.0mm). Wire gauge compatibility is 6-20 AWG for the 3073335 versus 6-26 AWG for the 3073584.

Q: Why is the 3073584 obsolete?

A: The 3073584 belongs to the CLIPLINE RW series, which has been superseded by the CLIPLINE UW series (represented by the 3073335). Phoenix Contact has transitioned product lines to the newer UW series.

Q: Are there compliance differences between the two parts?

A: Both are RoHS compliant. The 3073335 carries ROHS3 certification, representing compliance with the current RoHS 3 directive, while the 3073584 carries standard RoHS compliance.

Q: What wire gauges can each part accommodate?

A: The 3073584 accepts 6-26 AWG wire. The 3073335 accepts 6-20 AWG wire. Applications requiring wire gauges larger than 20 AWG may require alternative solutions.
