Phoenix Contact 3064111 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 3064111 is a 2-position feed-through terminal block connector designed for wire gauges 12-26 AWG (0.14-4 mm²). This component features screw termination, polyamide insulation with UL94 V-0 flammability rating, and operates at 24 A (IEC) / 20 A (UL) with voltage ratings of 630V (IEC) / 300V (UL). The part is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing applications and new designs.

Substiute Parts

3064111

Phoenix ContactIn Stock: 10063064111 Datasheet

Current PartRFQ

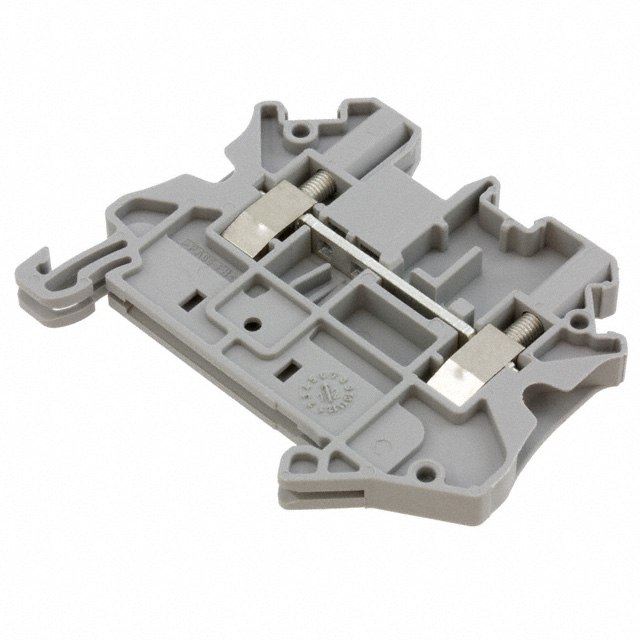

3064098

Phoenix ContactIn Stock: 8903064098 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 3064111 is based on strict equivalence across the following critical parameters:

• Connector Type & Configuration: Feed-through terminal block with 2 positions, 1 level
• Electrical Ratings: Current capacity (24 A IEC / 20 A UL) and voltage withstand (630V IEC / 300V UL minimum)
• Mechanical Compatibility: Terminal width (5.2 mm), screw termination, wire gauge acceptance (12-26 AWG / 0.14-4 mm²)
• Material & Safety Standards: Polyamide insulation, UL94 V-0 flammability rating
• Environmental Compliance: RoHS compliance status

The Phoenix Contact 3064098 meets all these criteria as a direct functional equivalent within the CLIPLINE UT series, with the primary distinction being color differentiation (gray vs. blue) and product status transition from obsolete to active.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3064098 is the direct functional substitute for the obsolete 3064111. Selection is based on the following engineering criteria:

Electrical Equivalence: Both parts maintain identical current and voltage ratings across IEC and UL standards. The 3064098 provides enhanced UL voltage rating (600V vs. 300V), representing a performance improvement with no compatibility compromise.

Mechanical Compatibility: Terminal geometry, wire gauge acceptance, and screw termination are identical, ensuring direct mechanical interchangeability in existing circuit designs and PCB layouts.

Compliance Status: The 3064098 carries ROHS3 compliance, representing current regulatory alignment. Both parts maintain UL94 V-0 flammability certification and identical insulation material composition.

Supply Continuity: The transition from obsolete (3064111) to active production status (3064098) ensures long-term component availability and supply chain stability for ongoing and future applications.

Cosmetic Differentiation: Color variation (gray vs. blue) is the sole non-functional distinction and does not affect electrical or mechanical performance.

Frequently Asked Questions (FAQ)

Q: Can the 3064098 directly replace the 3064111 in existing designs?

A: Yes. The 3064098 is mechanically and electrically equivalent across all functional parameters. Terminal geometry, wire gauge acceptance, current/voltage ratings, and termination method are identical. Direct substitution requires no circuit redesign or layout modification.

Q: Does the color difference (gray vs. blue) affect functionality?

A: No. Color is a cosmetic designation only and does not impact electrical performance, mechanical compatibility, or safety ratings. Selection between gray and blue variants is based on application-specific identification or documentation requirements.

Q: What is the significance of the UL voltage rating difference (300V vs. 600V)?

A: The 3064098 provides a higher UL voltage rating (600V) compared to the 3064111 (300V). This represents an enhancement in electrical capability with no negative impact on compatibility. Applications rated at 300V UL or below operate safely with either part.

Q: Why is the 3064111 classified as obsolete?

A: Obsolescence reflects manufacturing discontinuation by Phoenix Contact. The 3064098 serves as the active production equivalent, ensuring continued availability and supply chain support for this connector configuration.

Q: Are there any compliance differences between the two parts?

A: Both parts maintain UL94 V-0 flammability certification and polyamide insulation. The 3064098 carries ROHS3 compliance, representing alignment with current regulatory standards. The 3064111 carries RoHS compliance. Both meet applicable environmental and safety requirements for their respective production periods.

Q: What wire gauges are supported by the 3064098?

A: The 3064098 accepts wire gauges 12-26 AWG (0.14-4 mm²), identical to the 3064111. Stripping length is 9 mm for both variants.

Q: Is the 3064098 available in bulk packaging?

A: Yes. The 3064098 is supplied in bulk packaging, with 864 pieces currently in stock as new original inventory.
