Terminal Block Connector 305160 Equivalent & Substitute Parts

Part Overview

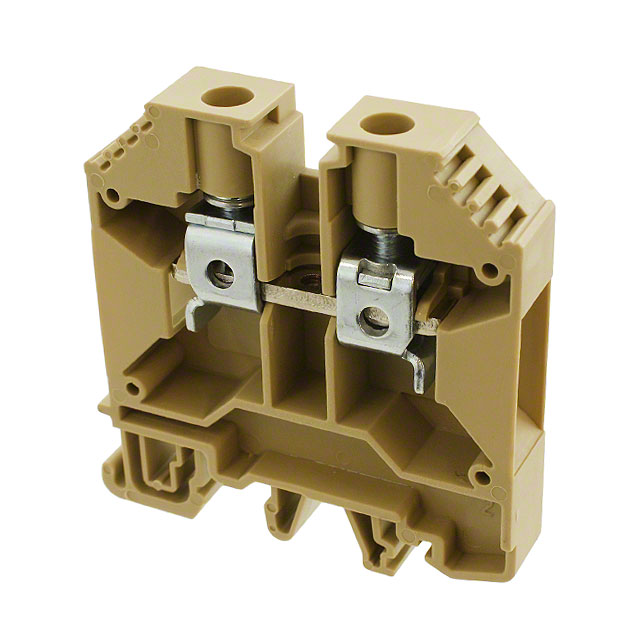

The American Electrical 305160 is a 2-position feed-through terminal block connector rated for 6-14 AWG wire gauges. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations. The 305160 operates at 750V IEC / 600V UL with screw termination and polyamide insulation rated UL94 V-2. Locating compatible substitute parts ensures continuity in applications where this connector was originally specified.

Substiute Parts

305160

American ElectricalIn Stock: 787305160 Datasheet

Current PartRFQ

304169

American Electrical Inc.In Stock: 953304169 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 305160 is determined by the following critical parameters:

Core Compatibility Criteria:

• 2-position configuration with 1 level
• Feed-through connector type with screw termination
• 12.0mm terminal width
• Polyamide (PA66) insulation with UL94 V-2 flammability rating
• Beige color
• 16mm stripping length
• ROHS3 compliance and REACH unaffected status

Electrical Compatibility Range:

• Voltage ratings: minimum 750V IEC / 600V UL
• Current ratings: minimum 76A IEC / 65A UL
• Wire gauge accommodation: must support the required wire range

The substitute part 304169 meets these criteria with compatible electrical ratings and mechanical specifications, though with an expanded wire gauge range of 4-12 AWG.

Parameter Comparison

Engineering Selection Recommendations

The 304169 serves as a direct functional substitute for the obsolete 305160. Both components share identical mechanical dimensions, electrical ratings at IEC levels, insulation specifications, and regulatory compliance status. The 304169 offers enhanced UL current rating (85A versus 65A) and active product status, ensuring ongoing availability and supply chain continuity.

The primary design consideration is wire gauge accommodation. The 305160 accepts 6-14 AWG, while the 304169 accepts 4-12 AWG. Applications utilizing wire gauges within the 6-12 AWG overlap range experience full compatibility. Applications requiring 13-14 AWG wire connections must retain the original 305160 specification or evaluate alternative connector families.

Both components maintain ROHS3 compliance and REACH unaffected status, satisfying environmental and regulatory requirements for industrial and commercial applications.

Frequently Asked Questions (FAQ)

Q: Can the 304169 directly replace the 305160 in all applications?

A: The 304169 is mechanically and electrically compatible for applications using wire gauges 6-12 AWG. Applications requiring 13-14 AWG wire connections cannot use the 304169 as a substitute.

Q: What is the significance of the obsolete status for the 305160?

A: Obsolete status indicates the 305160 is no longer manufactured. The 304169, classified as active, ensures continued component availability for new designs and system replacements.

Q: Are the electrical ratings equivalent between these two parts?

A: Both components meet 750V IEC and 600V UL voltage requirements with 76A IEC current rating. The 304169 provides higher UL current rating (85A) compared to the 305160 (65A), representing an enhancement for UL-regulated applications.

Q: Do both parts meet the same regulatory standards?

A: Yes. Both the 305160 and 304169 are ROHS3 compliant and REACH unaffected, meeting current environmental and chemical safety regulations.

Q: What packaging differences exist between these components?

A: The 305160 packaging is unspecified in available documentation. The 304169 is supplied in box packaging.
