Phoenix Contact 3036111 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 3036111 is a 2-position feed-through terminal block connector from the CLIPLINE ST series, designed for wire gauges 6-16 AWG (1.5-16 mm²). This component features push-in spring termination with orange insulation housing and is rated for 57 A (IEC) / 65 A (UL) at 1000V (IEC) / 600V (UL). The part is currently listed as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new designs requiring compatible components.

Key Parameters

Parameter	Value
Manufacturer	Phoenix Contact
Series	CLIPLINE ST
Type	Feed Through
Number of Positions	2
Number of Levels	1
Terminal Width	10.2 mm
Termination Style	Push In, Spring
Wire Gauge Range (AWG)	6-16 AWG
Wire Gauge Range (mm²)	1.5-16 mm²
Current Rating (IEC)	57 A
Voltage Rating (IEC)	1000 V
Current Rating (UL)	65 A
Voltage Rating (UL)	600 V
Insulation Material	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0
Stripping Length	18 mm
Product Status	Obsolete

Substitute Part Grouping Explanation

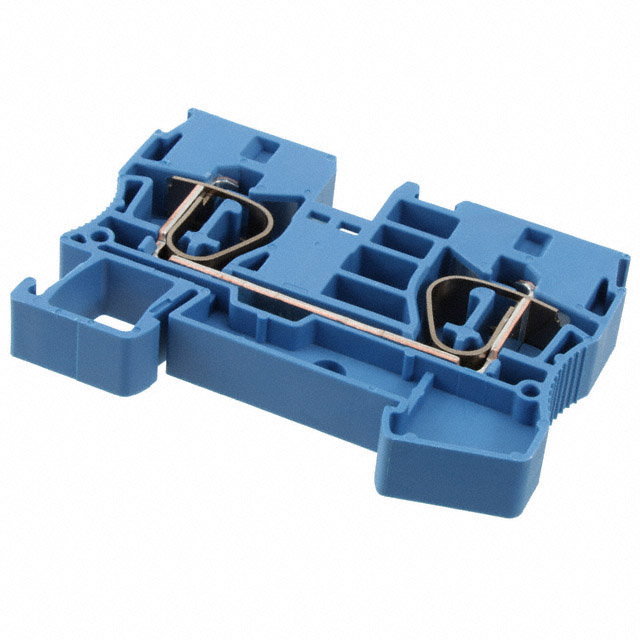

The Phoenix Contact 3036123 qualifies as a functional substitute for the 3036111 based on the following critical parameters:

Matching Parameters:

Identical series designation (CLIPLINE ST)
Identical connector type (Feed Through)
Identical position and level configuration (2 positions, 1 level)
Identical terminal width (10.2 mm)
Identical termination method (Push In, Spring)
Identical wire gauge range (6-16 AWG)
Identical electrical ratings (57 A IEC / 65 A UL; 1000V IEC / 600V UL)
Identical insulation material and flammability rating (Polyamide/Nylon, UL94 V-0)
Identical stripping length (18 mm)

Distinguishing Characteristics:

Color: 3036111 (Orange) vs. 3036123 (Blue)
Product Status: 3036111 (Obsolete) vs. 3036123 (Active)
Wire gauge minimum range: 3036111 (1.5 mm²) vs. 3036123 (0.2 mm²)
Packaging: 3036111 (not specified) vs. 3036123 (Bulk)
Compliance: 3036123 includes RoHS3 and REACH certifications

The 3036123 maintains full electrical and mechanical compatibility while offering active product status and enhanced compliance documentation.

Parameter Comparison

Parameter	3036111 (Main Part)	3036123 (Substitute)
Manufacturer	Phoenix Contact	Phoenix Contact
Series	CLIPLINE ST	CLIPLINE ST
Type	Feed Through	Feed Through
Number of Positions	2	2
Number of Levels	1	1
Terminal Width	10.2 mm	10.2 mm
Termination Style	Push In, Spring	Push In, Spring
Wire Gauge (AWG)	6-16 AWG	6-16 AWG
Wire Gauge (mm²)	1.5-16 mm²	0.2-16 mm²
Current Rating (IEC)	57 A	57 A
Voltage Rating (IEC)	1000 V	1000 V
Current Rating (UL)	65 A	65 A
Voltage Rating (UL)	600 V	600 V
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0	UL94 V-0
Stripping Length	18 mm	18 mm
Color	Orange	Blue
Product Status	Obsolete	Active

Engineering Selection Recommendations

The Phoenix Contact 3036123 is the direct functional equivalent for applications currently using the 3036111. Selection of the 3036123 is supported by:

Full electrical and mechanical parameter alignment across all critical specifications
Active product status ensuring ongoing availability and manufacturer support
RoHS3 compliance and REACH unaffected status, meeting current environmental and regulatory requirements
Identical mechanical interface and termination characteristics, enabling direct substitution without circuit redesign
Expanded wire gauge minimum range (0.2 mm² vs. 1.5 mm²) providing additional flexibility for smaller conductor applications

The only functional difference is housing color (blue vs. orange), which does not affect electrical performance or mechanical compatibility. This color distinction may be relevant only for circuit identification or documentation purposes.

Frequently Asked Questions (FAQ)

Q: Can the 3036123 be used as a direct replacement for the 3036111?

A: Yes. The 3036123 maintains identical electrical ratings (57 A IEC / 65 A UL, 1000V IEC / 600V UL), mechanical dimensions (10.2 mm terminal width, 2 positions), wire gauge compatibility (6-16 AWG), and termination method (push-in spring). Direct substitution is mechanically and electrically compatible.

Q: Does the color difference between orange (3036111) and blue (3036123) affect functionality?

A: No. Color is a visual identification feature only and does not affect electrical performance, current capacity, voltage rating, or mechanical operation. Color selection may be relevant for circuit documentation or internal identification standards.

Q: What is the significance of the wire gauge range difference (1.5-16 mm² vs. 0.2-16 mm²)?

A: The 3036123 accepts a broader minimum wire gauge range, supporting conductors as small as 0.2 mm². For applications using 6-16 AWG (1.5-16 mm²), both parts are fully compatible. The expanded range on the 3036123 provides additional flexibility for future applications without requiring component changes.

Q: Why is the 3036111 listed as obsolete?

A: Obsolete status indicates the manufacturer has discontinued active production and support. The 3036123 is the active equivalent, ensuring continued availability, technical support, and compliance documentation for new designs and ongoing maintenance.

Q: Are there compliance differences between the two parts?

A: The 3036123 includes documented RoHS3 compliance and REACH unaffected status. Both parts share identical UL94 V-0 flammability ratings and insulation materials. For applications requiring current environmental compliance documentation, the 3036123 provides explicit certification.

Q: What is the packaging difference?

A: The 3036111 packaging is not specified in available documentation. The 3036123 is supplied in bulk packaging. Confirm packaging requirements with your procurement department for order quantity and handling specifications.
