Phoenix Contact 3025011 Terminal Block Connector - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 3025011 is a 4-position disconnect terminal block connector rated for 12-26 AWG wire gauges with push-in spring termination. This component features a knife-switch disconnect type, polyamide insulation with UL94 V-0 flammability rating, and operates at 24 A (IEC) and 300V (UL). The part is classified as obsolete, making identification of active equivalent models essential for ongoing procurement and system maintenance.

Substiute Parts

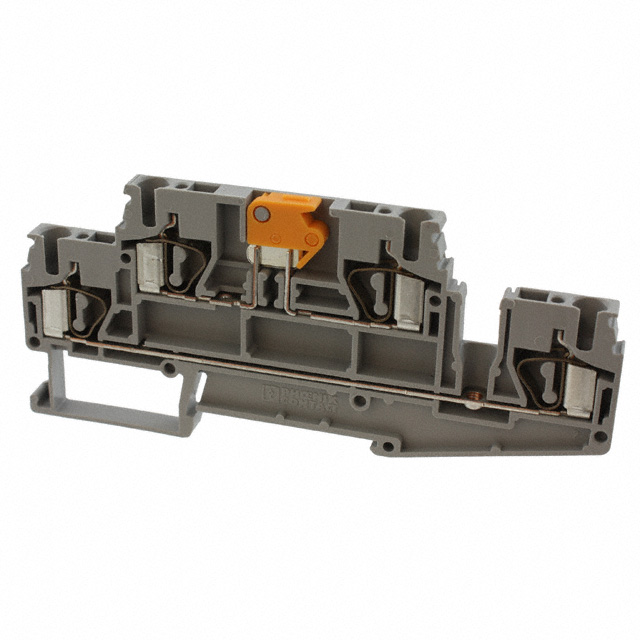

3025011

Phoenix ContactIn Stock: 10873025011 Datasheet

Current PartRFQ

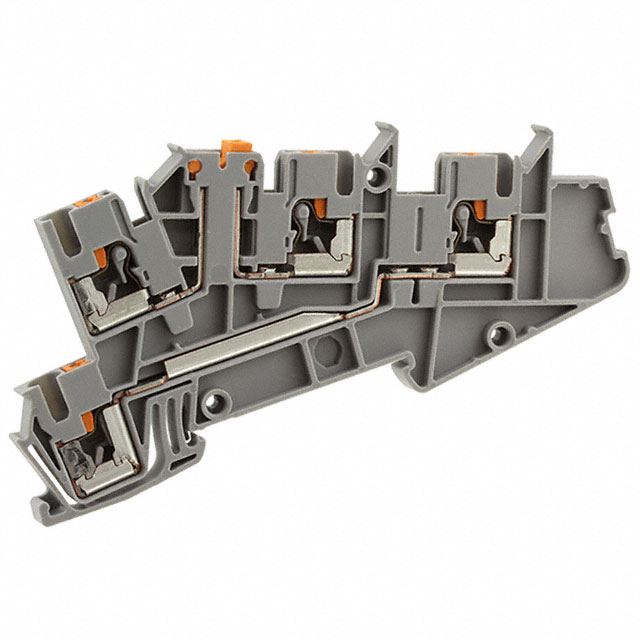

3213958

Phoenix ContactIn Stock: 7983213958 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 3025011 is determined by strict equivalence across the following critical parameters:

• Electrical Performance: Current rating (IEC: 24 A minimum), voltage rating (IEC: 400V minimum; UL: 300V minimum)
• Physical Configuration: 4 positions, 2 levels, 5.2 mm terminal width, knife-switch disconnect type, feed-through design
• Wire Compatibility: 12-26 AWG wire gauge range with push-in spring termination
• Material & Safety: Polyamide insulation, UL94 V-0 flammability rating
• Regulatory Compliance: RoHS compliance status

The Phoenix Contact 3213958 meets all critical substitution criteria while maintaining active product status and enhanced compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3213958 is the qualified substitute for the obsolete 3025011 model. Both components maintain identical electrical performance at 24 A (IEC) and 400V (IEC), with matching UL ratings of 300V. Physical compatibility is confirmed through identical 4-position, 2-level configuration with 5.2 mm terminal width and knife-switch disconnect functionality.

The 3213958 offers enhanced regulatory compliance through ROHS3 certification and REACH unaffected status, compared to the 3025011's RoHS compliance. The substitute maintains the same polyamide insulation with UL94 V-0 flammability rating and push-in spring termination. Wire gauge compatibility spans 12-26 AWG for both models, with the 3213958 supporting an extended lower range of 0.14 mm² versus 0.2 mm² for the original part.

The 3213958 is currently in active production status with 783 units available in bulk packaging, providing reliable long-term procurement availability compared to the obsolete 3025011.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 3213958 directly replace the 3025011 in existing installations?

A: Yes. Both components share identical electrical ratings (24 A IEC, 400V IEC, 300V UL), physical configuration (4 positions, 2 levels, 5.2 mm terminals), and termination method (push-in spring). The knife-switch disconnect type and feed-through design are identical. No circuit modifications are required.

Q: What is the difference in wire gauge compatibility between these models?

A: The 3025011 accepts 0.2-4 mm² wire, while the 3213958 accepts 0.14-4 mm². The 3213958 supports a wider lower range, making it compatible with finer gauge conductors. Both models support the full 12-26 AWG range specified for industrial applications.

Q: Why is the 3025011 listed as obsolete?

A: The 3025011 belongs to the CLIPLINE ZFKK series, which has been superseded by the CLIPLINE PTI series represented by the 3213958. Phoenix Contact has transitioned production to the newer series while maintaining electrical and mechanical compatibility.

Q: Are there compliance differences between the two models?

A: The 3213958 carries ROHS3 certification and REACH unaffected status, representing current regulatory compliance standards. The 3025011 carries RoHS compliance. Both maintain UL94 V-0 flammability rating and are suitable for industrial terminal block applications.

Q: What packaging options are available for the substitute part?

A: The 3213958 is available in bulk packaging with 783 units currently in stock. The original 3025011 was available in unspecified packaging with 1004 units previously in inventory.
