Phoenix Contact 3022014 Terminal Block Connector - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 3022014 is a 2-position disconnect terminal block connector rated for 12-28 AWG wire gauges, designed for applications requiring screw termination and open disconnect functionality. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The part operates within IEC specifications of 16 A at 500V and UL specifications of 20 A at 300V, with polyamide insulation rated UL94 V-2.

Substiute Parts

3022014

Phoenix ContactIn Stock: 9863022014 Datasheet

Current PartRFQ

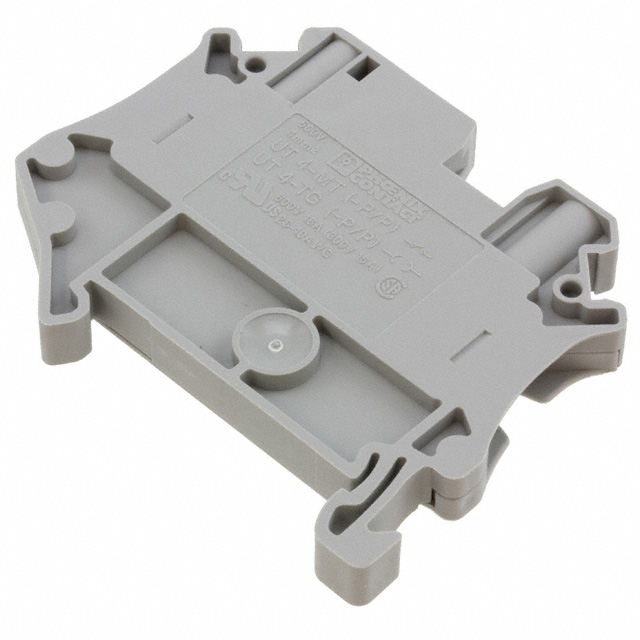

3046142

Phoenix ContactIn Stock: 8813046142 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 3022014 is determined by the following critical parameters:

Functional Compatibility Requirements:

• 2-position disconnect terminal block configuration
• Screw termination style
• Open disconnect type
• 6.2 mm terminal width
• Gray color
• Polyamide (PA) nylon insulation material

Electrical Compatibility Parameters:

• Wire gauge acceptance range must accommodate 12-28 AWG minimum
• Voltage rating must meet or exceed 500V IEC specification
• Current rating must meet or exceed 16 A IEC specification
• UL compliance certifications

Mechanical and Environmental Compatibility:

• Stripping length of 9 mm
• RoHS compliance status
• Moisture sensitivity level MSL 1 (Unlimited)

The substitute part Phoenix Contact 3046142 qualifies as an equivalent based on matching all functional and mechanical parameters while providing enhanced electrical specifications and improved compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3046142 serves as a direct substitute for the obsolete 3022014 based on the following engineering criteria:

Functional Equivalence: Both parts maintain identical 2-position disconnect configuration, screw termination, and 6.2 mm terminal width, ensuring mechanical and electrical interface compatibility.

Enhanced Compliance: The 3046142 carries ROHS3 Compliant status and REACH Affected designation, representing current regulatory compliance standards. The UL94 V-0 flammability rating provides superior material performance compared to the V-2 rating of the 3022014.

Improved Electrical Specifications: The substitute part delivers 20 A at 500V under IEC conditions, exceeding the 16 A specification of the main part. UL voltage rating increases from 300V to 600V, providing enhanced safety margin for applications operating near maximum voltage limits.

Wire Gauge Compatibility: The 3046142 accepts 10-26 AWG (0.14-6 mm²), which encompasses the full 12-28 AWG range of the original part while extending capability to smaller gauge conductors.

Active Product Status: The 3046142 maintains active production status, ensuring long-term availability and supply chain continuity for new designs and maintenance applications.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 3046142 directly replace the 3022014 in existing installations?

A: Yes. Both parts share identical mechanical interfaces, terminal width, stripping length, and screw termination methodology. The 3046142 meets or exceeds all electrical specifications of the 3022014, making it functionally equivalent for direct substitution.

Q: What is the significance of the wire gauge range difference between these parts?

A: The 3022014 accommodates 12-28 AWG while the 3046142 accommodates 10-26 AWG. The substitute part accepts smaller conductors (10 AWG) but has a narrower upper limit (26 AWG vs. 28 AWG). For applications using 12-26 AWG conductors, both parts are fully compatible. Applications requiring 27-28 AWG conductors must retain the original 3022014 or identify alternative solutions.

Q: How do the flammability ratings differ between these parts?

A: The 3022014 carries UL94 V-2 rating while the 3046142 carries UL94 V-0 rating. The V-0 classification indicates superior flame resistance and self-extinguishing properties, representing enhanced material performance for safety-critical applications.

Q: What is the difference between RoHS and ROHS3 compliance?

A: RoHS Compliant indicates compliance with the original Restriction of Hazardous Substances directive. ROHS3 Compliant indicates compliance with the updated directive (2011/65/EU as amended by 2015/863/EU), which includes additional restricted substances. ROHS3 represents current regulatory requirements for new component procurement.

Q: Are there any current rating differences I should consider?

A: Under IEC conditions, the 3046142 provides 20 A compared to 16 A for the 3022014, representing a 25% increase in current capacity. Under UL conditions, the 3022014 provides 20 A while the 3046142 provides 16 A. For applications operating under IEC specifications, the substitute part offers improved capacity. For UL-specified applications, verify that 16 A capacity meets system requirements.

Q: Why is the 3022014 classified as obsolete?

A: Obsolete status indicates that Phoenix Contact has discontinued production of this part. The 3046142 represents the current active product offering within the CLIPLINE disconnect terminal block family, providing equivalent functionality with enhanced compliance and specifications.
