Phoenix Contact 3006470 Terminal Block - Equivalent & Substitute Parts

Part Overview

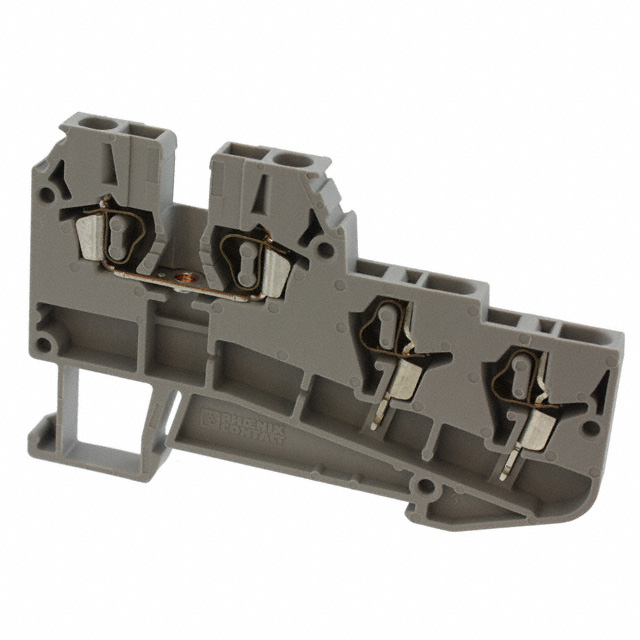

The Phoenix Contact 3006470 is a 4-position feed-through terminal block connector designed for wire gauges 14-26 AWG with isolated configuration and gray polyamide housing. This component is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations. The CLIPLINE ZDIK series component operates at IEC-rated 17.5 A and 250V, with UL ratings of 15 A and 300V, suitable for industrial control and distribution applications requiring push-in spring termination.

Substiute Parts

3006470

Phoenix ContactIn Stock: 11533006470 Datasheet

Current PartRFQ

3211480

Phoenix ContactIn Stock: 14613211480 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 3006470 can be substituted with part number 3211480 based on the following alignment of critical electrical and mechanical parameters:

Substitution Criteria:

• Identical number of positions (4) and levels (2)
• Matching terminal width (5.2mm)
• Identical termination style (Push In, Spring)
• Identical connector type (Feed Through, Isolated)
• Matching color (Gray) and insulation material (Polyamide/Nylon, UL94 V-0)
• Identical stripping length (10mm)
• Wire gauge range compatibility: 3211480 accepts 12-26 AWG, which encompasses the 14-26 AWG range of 3006470
• Electrical ratings of 3211480 meet or exceed 3006470 specifications (22 A IEC vs. 17.5 A; 500V IEC vs. 250V)
• Both components share identical ECCN and HTSUS classifications

The substitute part 3211480 operates at higher electrical ratings and broader wire gauge acceptance, making it functionally compatible for applications originally designed for 3006470.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3211480 is the qualified substitute for the obsolete 3006470 based on the following engineering criteria:

Product Status Alignment: The 3211480 maintains active product status with current manufacturing support, ensuring long-term availability and supply chain continuity compared to the obsolete 3006470.

Compliance and Certification: Both components meet UL94 V-0 flammability requirements. The 3211480 carries ROHS3 compliance, representing current regulatory alignment, while the 3006470 holds RoHS compliance. Both share identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications for export and tariff purposes.

Electrical Performance: The 3211480 provides superior electrical ratings (22 A IEC, 500V IEC) compared to 3006470 (17.5 A IEC, 250V IEC), ensuring safe operation in applications originally specified for the main part without derating concerns.

Mechanical Compatibility: Identical terminal width (5.2mm), position count (4), level configuration (2), and termination method (Push In, Spring) ensure direct mechanical fit and functional interchangeability in existing mounting and wiring infrastructure.

Wire Gauge Accommodation: The 3211480 wire gauge range (12-26 AWG, 0.14-4mm²) fully encompasses the 3006470 specification (14-26 AWG, 0.14-2.5mm²), permitting use with existing wire installations without modification.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 3211480 directly replace the 3006470 in existing installations?

A: Yes. The 3211480 provides identical mechanical dimensions (terminal width 5.2mm, 4 positions, 2 levels), matching termination style (Push In, Spring), and equivalent isolation configuration. The higher electrical ratings (22 A vs. 17.5 A IEC; 500V vs. 250V IEC) ensure safe operation in applications originally designed for 3006470.

Q: What is the significance of the wire gauge range difference between these parts?

A: The 3006470 accepts 14-26 AWG (0.14-2.5mm²), while the 3211480 accepts 12-26 AWG (0.14-4mm²). The 3211480 range is broader and fully encompasses the 3006470 specification. Existing wire installations using 14-26 AWG will function identically with the substitute part.

Q: Are there packaging differences between these components?

A: The 3006470 packaging is listed as unspecified, while the 3211480 is supplied in Bulk packaging. This difference affects procurement and inventory management but does not impact electrical or mechanical performance.

Q: How do the compliance ratings compare?

A: Both components meet UL94 V-0 flammability standards. The 3211480 carries ROHS3 compliance (current standard), while 3006470 carries RoHS compliance (earlier standard). Both share identical ECCN and HTSUS classifications. The 3211480 represents current regulatory alignment.

Q: What is the product status implication for long-term supply?

A: The 3006470 is classified as obsolete, indicating discontinued manufacturing. The 3211480 maintains active product status with ongoing manufacturing support, ensuring reliable availability for future procurement and system maintenance.
