Honeywell 2LS1-L Snap Action Switch: Equivalent & Substitute Parts

Part Overview

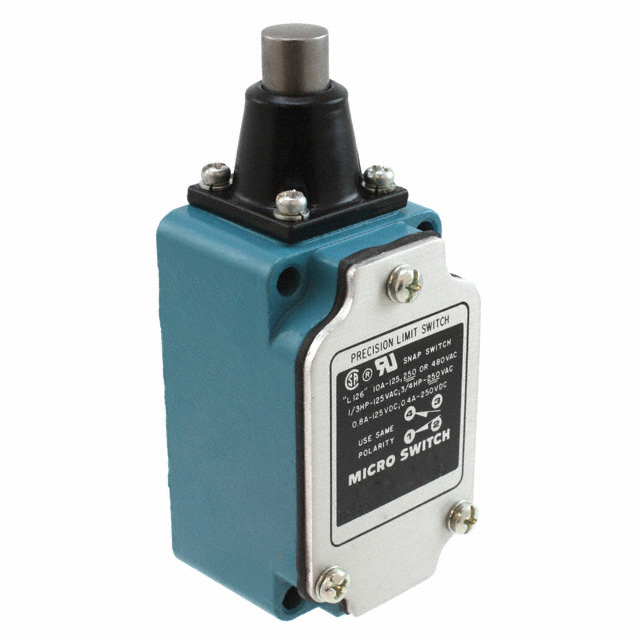

The Honeywell 2LS1-L is an SPDT snap action switch designed for chassis mount applications requiring 10A AC at 125V operation. This switch features a round pin plunger actuator, screw terminal connections, and IP67 ingress protection suitable for dust-tight and waterproof environments. The product maintains active status with RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified to address inventory availability, extended operating temperature ranges, or specific mechanical characteristic requirements while maintaining core electrical and functional compatibility.

Substiute Parts

2LS1-L

Honeywell Sensing and Productivity SolutionsIn Stock: 8302LS1-L Datasheet

Current PartRFQ

D4B-2171N

Omron Automation and SafetyIn Stock: 1249D4B-2171N Datasheet

SimilarRFQ

D4B-4170N-NPT

Omron Automation and SafetyIn Stock: 1081D4B-4170N-NPT Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Honeywell 2LS1-L is determined by the following mandatory parameters:

Core Electrical Compatibility Requirements:

• Circuit configuration: SPDT (DB/DM)
• Switch function: On-Mom
• Current rating minimum: 10A AC
• Voltage rating minimum: 120V AC (125V preferred)
• Termination style: Screw Terminal

Mechanical Compatibility Requirements:

• Mounting type: Chassis Mount
• Ingress protection: IP67 minimum
• Actuator engagement: Pin or roller plunger acceptable

Compliance Requirements:

• RoHS compliance or equivalent environmental standard
• Active product status
• Moisture sensitivity level: 1 (Unlimited)

The identified substitute parts (Omron D4B-2171N and D4B-4170N-NPT) satisfy these core requirements. Both maintain SPDT circuit configuration, 10A AC current capacity, 120V AC voltage rating, chassis mount design, screw terminal connections, and IP67 protection. Differences in DC voltage rating, operating force characteristics, and temperature range represent secondary parameters that do not prevent functional substitution in AC-primary applications.

Parameter Comparison

Engineering Selection Recommendations

Omron D4B-4170N-NPT is the primary substitute for the Honeywell 2LS1-L. This part maintains identical actuator type (round pin plunger), matching operating position (1.380" vs. 1.330"), and preserves mechanical engagement characteristics. Both parts feature active product status and unlimited moisture sensitivity rating. The D4B-4170N-NPT operates across an extended temperature range (-40°C to 80°C) compared to the 2LS1-L (-29°C to 71°C), providing broader environmental compatibility. AC voltage rating of 120V is functionally equivalent to 125V for standard industrial applications. Electrical life specification of 500,000 cycles is documented for the substitute.

Omron D4B-2171N serves as a secondary substitute when mechanical force characteristics differ from application requirements. This part features a roller plunger actuator and extended operating position (1.890"), resulting in different engagement mechanics. The D4B-2171N maintains 10A AC current capacity and 120V AC voltage rating. Selection of this substitute requires confirmation that roller plunger actuation is compatible with the application's mechanical interface.

Both Omron substitutes maintain SPDT circuit configuration, On-Mom function, 10A AC current rating, 120V AC voltage rating, chassis mount design, screw terminal connections, and IP67 ingress protection. DC voltage rating reduction (125V to 30V) and DC current increase (800mA to 6A) are secondary parameters not affecting AC-primary circuit operation.

Frequently Asked Questions (FAQ)

Q: Can the Omron D4B-4170N-NPT directly replace the Honeywell 2LS1-L in all applications?

A: The D4B-4170N-NPT maintains electrical equivalence for AC applications operating at 120V or higher and 10A or lower. Both parts feature identical circuit configuration (SPDT), switch function (On-Mom), actuator type (round pin plunger), mounting method (chassis mount), and termination style (screw terminal). Mechanical engagement characteristics are comparable due to similar operating positions (1.380" vs. 1.330"). Substitution is valid for applications within the specified electrical and mechanical parameters.

Q: What is the difference between the two Omron substitutes?

A: The primary difference is actuator type. The D4B-4170N-NPT uses a round pin plunger matching the Honeywell 2LS1-L, while the D4B-2171N uses a roller plunger. The D4B-2171N also features a longer operating position (1.890" vs. 1.380"), affecting mechanical engagement depth. Both maintain identical electrical ratings (10A AC, 120V AC) and circuit configuration (SPDT). Selection depends on mechanical interface compatibility with the application.

Q: Are there temperature range limitations when substituting?

A: The Honeywell 2LS1-L operates from -29°C to 71°C. Both Omron substitutes extend this range to -40°C to 80°C, providing broader environmental capability. Applications operating within the original -29°C to 71°C range experience no temperature-related limitations with either substitute. Applications requiring operation below -29°C or above 71°C benefit from the extended Omron temperature specifications.

Q: What is the significance of the voltage rating difference (125V vs. 120V)?

A: The Honeywell 2LS1-L is rated for 125V AC, while both Omron substitutes are rated for 120V AC. In industrial applications, 120V AC and 125V AC are functionally equivalent due to standard voltage tolerance specifications. The 5V difference represents normal utility voltage variation. Substitution is valid for applications operating at standard North American 120V AC supply.

Q: How do operating force and release force differences affect substitution?

A: The Honeywell 2LS1-L requires 3175gf operating force and 907gf release force. Both Omron substitutes require 1900gf operating force and 200gf release force. These differences indicate the Omron parts require less force to actuate and release. Substitution is valid when the application's mechanical actuation system can accommodate lower force requirements. Applications with force-sensitive actuation mechanisms should confirm compatibility with the reduced force specifications.

Q: Is RoHS compliance maintained across all parts?

A: The Honeywell 2LS1-L is RoHS Compliant. The Omron D4B-2171N is ROHS3 Compliant, maintaining environmental compliance standards. The Omron D4B-4170N-NPT lists RoHS status as "Not applicable," indicating this designation does not apply to the product classification. Both Omron parts maintain unlimited moisture sensitivity level (MSL 1), matching the Honeywell specification. Environmental compliance is preserved across all three parts.

Q: What packaging considerations apply to these substitutes?

A: The Honeywell 2LS1-L is supplied in standard packaging. Both Omron substitutes are supplied in bulk packaging. Packaging format does not affect electrical or mechanical compatibility. Bulk packaging may require adjustment to procurement and inventory management procedures but does not impact functional substitution.
