TE Connectivity Corcom Filters 2EDL4 Equivalent & Substitute Parts

Part Overview

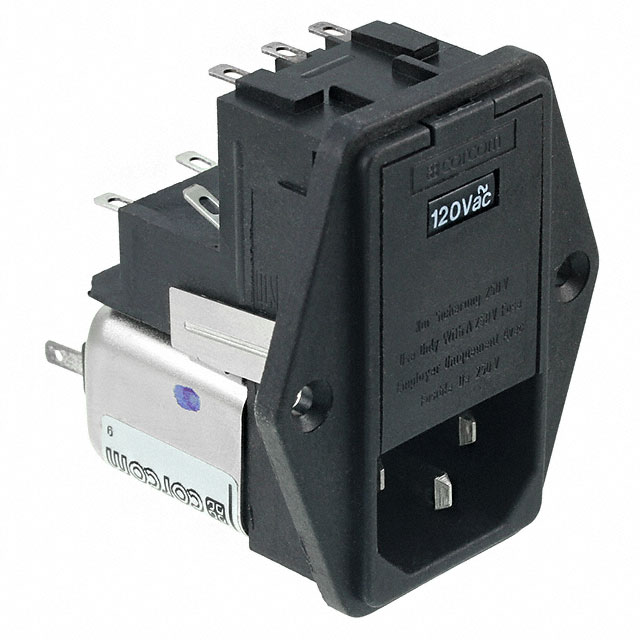

The TE Connectivity Corcom Filters 2EDL4 is a Power Entry Connector Receptacle module featuring IEC 320-C14 panel mount configuration with integrated EMI/RFI filtering. This component functions as a male blade receptacle designed for AC power inlet applications with fuse holder accommodation and voltage selector capability.

The 2EDL4 is classified as an obsolete product. Identification of equivalent substitute parts is necessary to support ongoing maintenance, repair, and new design requirements where this connector type is specified or functionally required.

Substiute Parts

2EDL4

TE Connectivity Corcom FiltersIn Stock: 9832EDL4 Datasheet

Current PartRFQ

PE772003

Curtis IndustriesIn Stock: 1037PE772003 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 2EDL4 is determined by strict alignment with the following core parameters:

Mandatory Matching Parameters:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades - Module
• Number of Positions: 3
• Filter Type: Filtered (EMI, RFI) - Commercial
• Mounting Type: Panel Mount, Flange
• Termination: Quick Connect - 0.110" (2.8mm)
• Fuse Holder Accommodation: Yes

Allowable Variation Parameters:

• Current Rating - Appliance Inlet: Equal to or greater than 2A
• Voltage Rating - Appliance Inlet: Must accommodate 120/250VAC operation
• Panel Cutout Dimensions: Tolerance within manufacturing specifications
• Approval Agencies: May differ while maintaining equivalent safety certifications

The Curtis Industries PE772003 qualifies as a substitute part based on conformance to all mandatory matching parameters and allowable current/voltage rating variations.

Parameter Comparison

Engineering Selection Recommendations

For Direct Substitution:

The Curtis Industries PE772003 serves as a direct functional substitute for the obsolete TE Connectivity Corcom Filters 2EDL4. Both components share identical connector geometry, electrical interface, filtering characteristics, and mechanical mounting specifications.

Compliance Considerations:

The PE772003 maintains active product status with current manufacturing support, whereas the 2EDL4 is obsolete. The PE772003 carries CE, CSA, TUV, and UL certifications, providing equivalent or enhanced regulatory coverage compared to the 2EDL4 certifications (CSA, SEMKO, SEV, UL, VDE). Both components meet RoHS compliance requirements.

Electrical Performance:

The PE772003 is rated for 3A at the appliance inlet and filter stages, compared to the 2EDL4 rating of 2A. This higher current rating does not create incompatibility; the PE772003 operates within specification for applications requiring 2A operation. The voltage rating of 250VAC on the PE772003 accommodates the 120/250VAC requirement of the 2EDL4.

Mechanical Compatibility:

Panel cutout dimensions are functionally equivalent (28.50mm x 55.90mm versus 28.50mm x 55.91mm), representing standard manufacturing tolerance. Termination, mounting type, and fuse holder features are identical between both components.

Frequently Asked Questions (FAQ)

Q: Can the PE772003 be used as a direct replacement for the 2EDL4 in existing equipment?

A: Yes. The PE772003 meets all mandatory electrical and mechanical parameters required for substitution. Identical connector style, type, position count, filtering, mounting, and termination specifications ensure functional compatibility in applications originally designed for the 2EDL4.

Q: What is the significance of the higher current rating on the PE772003?

A: The PE772003 is rated for 3A at both the appliance inlet and filter stages, compared to the 2EDL4 rating of 2A. This higher rating provides additional design margin and does not create incompatibility. Equipment designed for 2A operation functions within the PE772003 specification envelope.

Q: Are there voltage rating differences between these components?

A: The 2EDL4 is rated for 120/250VAC operation. The PE772003 is rated for 250VAC operation. Both components operate at 250VAC without limitation. For 120VAC-only applications, the PE772003 operates within specification, as 120VAC is below the 250VAC rating.

Q: How do the approval certifications compare?

A: Both components carry UL and CSA certifications. The 2EDL4 includes SEMKO, SEV, and VDE certifications. The PE772003 includes CE and TUV certifications. Both certification sets meet commercial AC power connector safety requirements. Selection between them depends on regional regulatory requirements for the end application.

Q: What is the practical difference in panel cutout dimensions?

A: The 2EDL4 specifies 28.50mm x 55.91mm; the PE772003 specifies 28.50mm x 55.90mm. This 0.01mm difference in one dimension falls within standard manufacturing tolerance and does not affect panel mounting compatibility.

Q: Why is the 2EDL4 listed as obsolete?

A: Obsolete status indicates the 2EDL4 is no longer manufactured by TE Connectivity. The PE772003 is an active product with current manufacturing support, making it the appropriate choice for new designs and ongoing component sourcing.

Q: Are the fuse holder features identical?

A: Yes. Both the 2EDL4 and PE772003 accommodate fuses with drawer-type fuse holders and include voltage selector features. Fuses are not included with either component and must be sourced separately according to application requirements.

Q: What is the difference between RoHS and ROHS3 compliance?

A: Both components meet RoHS environmental compliance requirements. The PE772003 designation as ROHS3 Compliant indicates conformance to the current RoHS 3 directive. Both components are suitable for applications requiring RoHS compliance.
