2EDL1S Power Entry Connector Receptacle IEC 320-C14 Equivalent & Substitute Parts

Part Overview

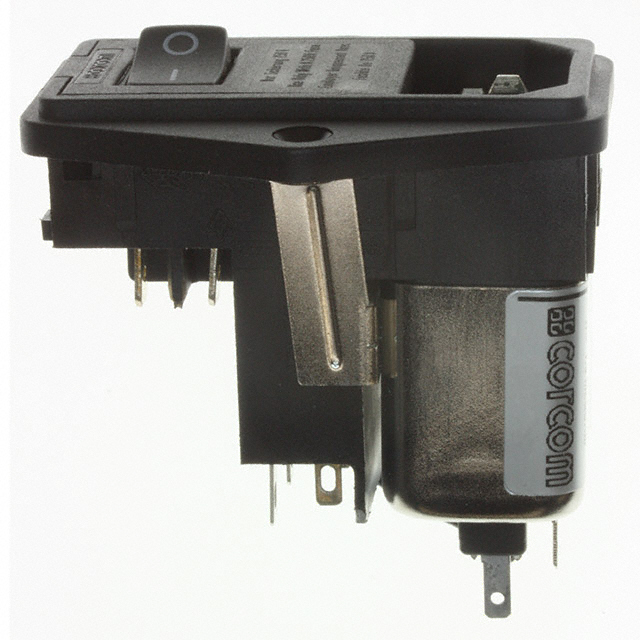

The 2EDL1S is a power entry connector receptacle module manufactured by TE Connectivity Corcom Filters, designed for IEC 320-C14 panel mount applications. This component functions as a filtered AC power inlet with integrated switch and fuse holder capabilities, rated for 2A at 120/250VAC. The product is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system maintenance, repair, and redesign applications where continued sourcing of the original component is not feasible.

Substiute Parts

2EDL1S

TE Connectivity Corcom FiltersIn Stock: 10252EDL1S Datasheet

Current PartRFQ

PE00XDS60

TE Connectivity Corcom FiltersIn Stock: 1227PE00XDS60 Datasheet

SimilarRFQ

PE870203

Curtis IndustriesIn Stock: 1065PE870203 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 2EDL1S is determined by strict alignment with the following core parameters: IEC 320-C14 connector style, receptacle male blades module configuration, panel mount flange mounting type, filtered EMI/RFI commercial-grade construction, fuse holder accommodation, and quick connect termination compatibility.

The substitute parts PE00XDS60 and PE870203 maintain the fundamental connector architecture and mounting interface required for direct replacement in panel-mount applications. However, each substitute exhibits specific parameter variations that define its application scope:

PE00XDS60 provides increased current capacity (6A versus 2A) with single-voltage operation (120VAC only) and employs a larger termination connector (0.187" versus 0.110"), requiring verification of internal wiring harness compatibility. This part omits the on-off switch feature present in the original design.

PE870203 maintains closer electrical alignment with the original specification, offering 3A current rating at 250VAC with identical 0.110" termination and on-off switch functionality. Panel cutout dimensions remain equivalent, supporting direct mechanical interchange.

Parameter Comparison

Engineering Selection Recommendations

PE870203 (Curtis Industries) is the primary substitute for direct replacement applications. This part maintains electrical compatibility within the 2A-3A current range, preserves the 250VAC voltage rating, retains the on-off switch functionality, and employs identical 0.110" termination connectors. Panel cutout dimensions are equivalent, eliminating mechanical redesign requirements. The part holds active product status with ROHS3 compliance and comprehensive approval certifications (CE, CSA, TUV, UL), supporting deployment in regulated industrial and commercial environments.

PE00XDS60 (TE Connectivity Corcom Filters) serves applications requiring elevated current capacity (6A) where the original 2A specification represents a design constraint rather than a functional requirement. This substitute is limited to 120VAC single-voltage operation and lacks the on-off switch feature. The larger 0.187" termination connector necessitates internal wiring harness modification or adapter implementation. This part is appropriate for new designs or system upgrades where increased power handling and voltage selector functionality justify the mechanical and electrical modifications.

Both substitutes maintain IEC 320-C14 connector compatibility, filtered EMI/RFI construction, fuse holder accommodation, and active product status, ensuring long-term availability and supply chain stability compared to the obsolete original component.

Frequently Asked Questions (FAQ)

Q: Can PE00XDS60 be used as a direct mechanical replacement for 2EDL1S?

A: PE00XDS60 requires internal wiring modification due to termination connector size difference (0.187" versus 0.110"). The panel cutout dimensions are variable, requiring specification verification. Direct mechanical interchange is not supported without adapter implementation or harness redesign.

Q: What is the primary advantage of PE870203 over PE00XDS60 for 2EDL1S replacement?

A: PE870203 maintains identical termination connector size (0.110"), equivalent panel cutout dimensions (28.50mm x 55.90mm), and preserves the on-off switch feature. These characteristics enable direct mechanical and electrical interchange without internal system modification.

Q: Are voltage ratings interchangeable between these parts?

A: No. The 2EDL1S operates at 120/250VAC dual voltage. PE00XDS60 is limited to 120VAC single voltage. PE870203 operates at 250VAC single voltage. System voltage requirements must be verified before substitution to ensure compliance with equipment specifications.

Q: Does the absence of a switch in PE00XDS60 affect functionality?

A: The on-off switch in 2EDL1S and PE870203 provides manual power control at the inlet. PE00XDS60 lacks this feature, requiring alternative switching mechanisms in the downstream circuit. This functional difference must be evaluated against system design requirements.

Q: Are all three parts RoHS compliant?

A: Yes. The 2EDL1S is RoHS Compliant. PE00XDS60 and PE870203 are both ROHS3 Compliant, meeting current environmental regulatory standards.

Q: What approval certifications are common across all three parts?

A: CSA, UL, and VDE certifications are present on all three parts. PE870203 includes additional CE and TUV certifications. The 2EDL1S includes SEMKO and SEV certifications not present on the substitutes.

Q: Can PE00XDS60 be used in applications originally designed for 2A current?

A: Yes. PE00XDS60 is rated for 6A, which exceeds the 2A requirement. However, the 120VAC single-voltage limitation and absence of on-off switch functionality must be evaluated against system specifications.

Q: What is the fuse holder configuration difference between PE00XDS60 and the other parts?

A: PE00XDS60 features a Twin Fused fuse holder configuration, while 2EDL1S and PE870203 employ standard fuse holder designs. This difference affects fuse replacement procedures and fault protection architecture.

Q: Are panel thickness specifications provided for all parts?

A: Panel thickness is specified for PE00XDS60 (0.031" ~ 0.114" or 0.79mm ~ 2.90mm). Panel thickness specifications are not provided for 2EDL1S or PE870203, requiring measurement of existing installations before substitution.
